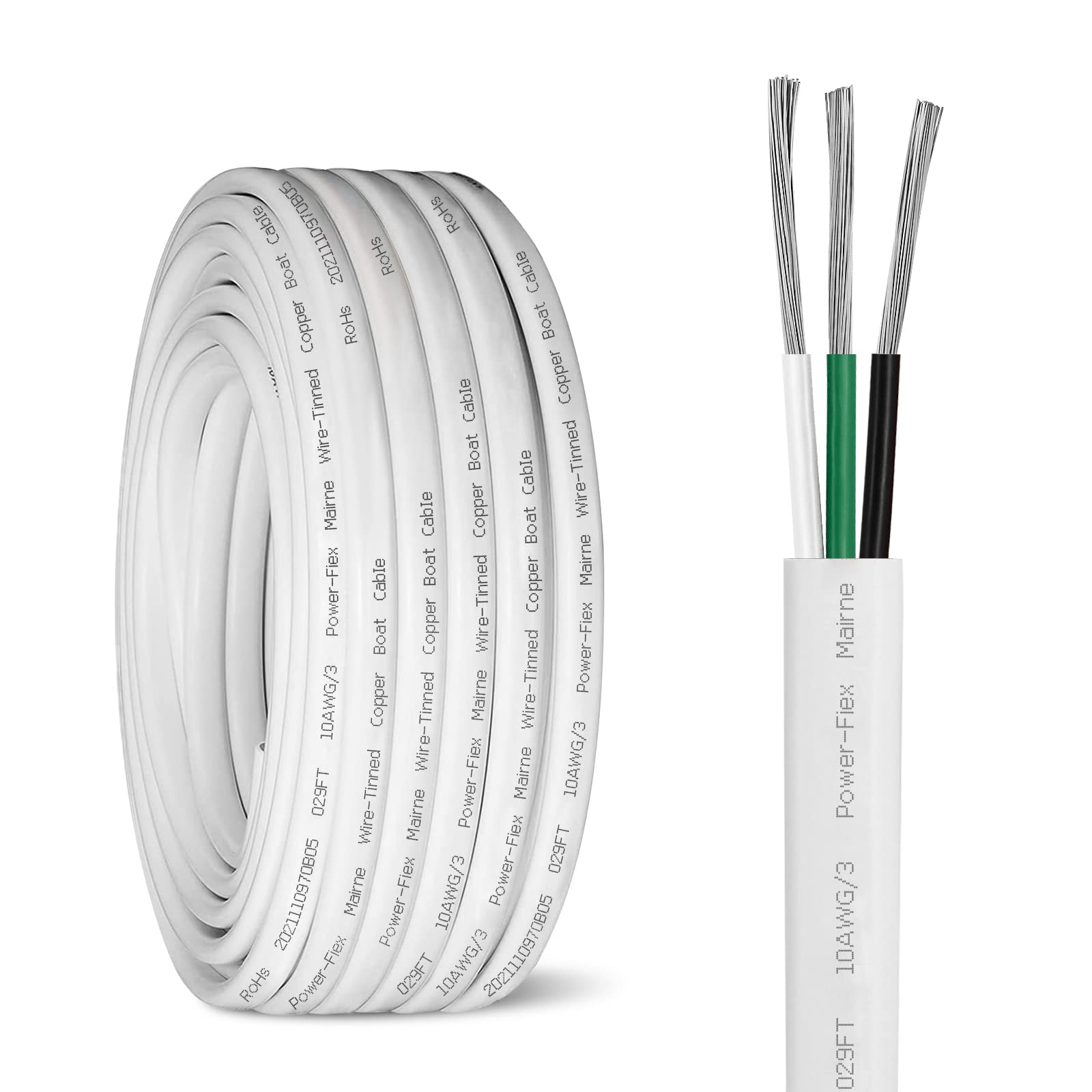

Kimbluth Marine Wire 10 AWG 20ft, 10/3 tinned-copper triplex with marine-grade PVC jacket

Kimbluth 10 Gauge 10/3 marine triplex cable is a 20-foot, tinned-copper, boat-grade wire engineered for corrosion resistance and reliable power distribution in marine and harsh environments.

This 20FT 10/3 marine wire from Kimbluth combines tinned copper conductors with heavy-duty PVC insulation to deliver stable conductivity, improved corrosion protection and mechanical durability for on-board electrical systems. Built to UL 1426 standards and meeting SAE ABYC guidelines, the cable handles up to 600V and is designed for both dry and wet operating conditions commonly encountered on boats, docks and near-saltwater installations.

How does this wire resist corrosion and saltwater damage?

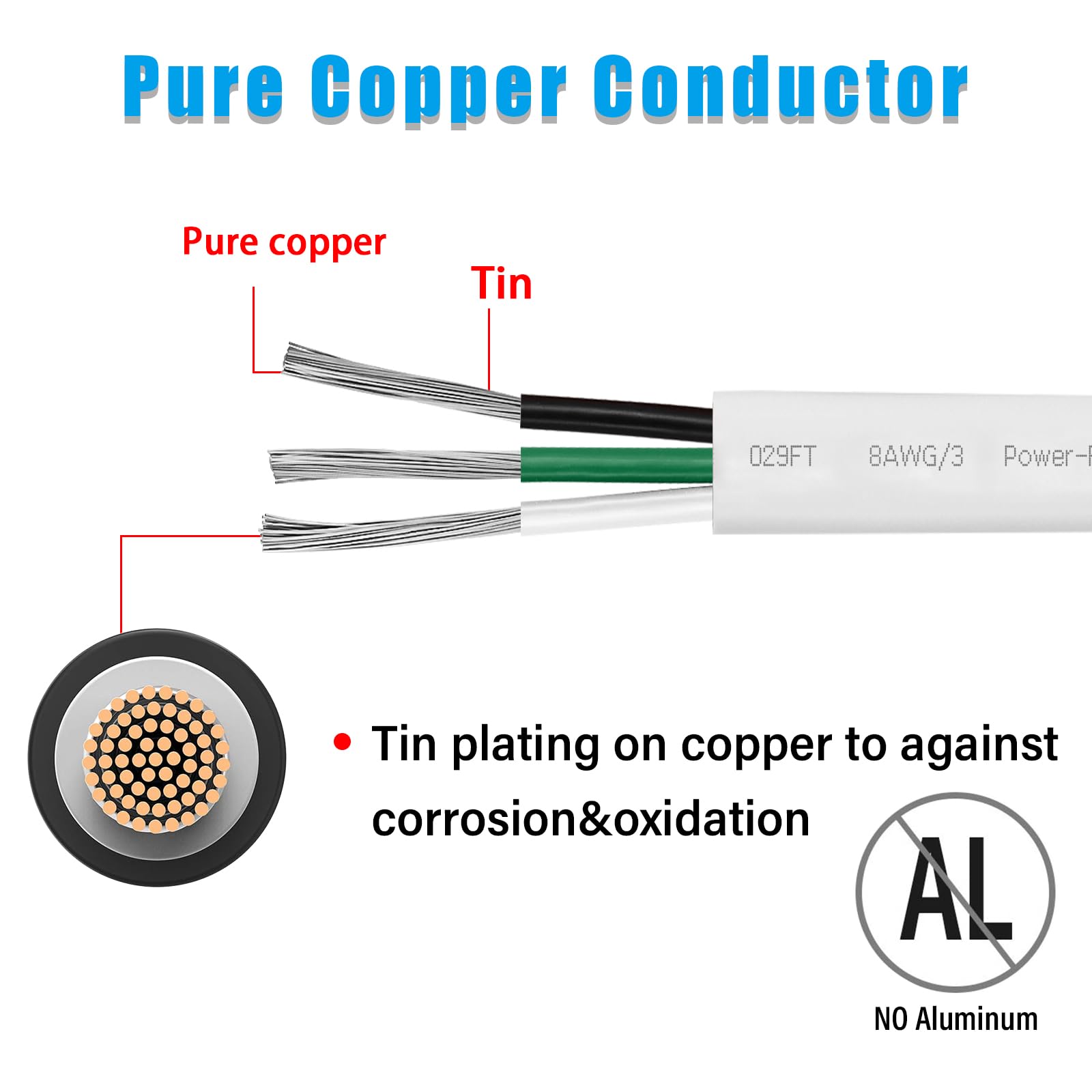

The Kimbluth cable uses tinned copper conductors and specially formulated PVC insulation to slow oxidation and protect against saltwater exposure. Tinning the copper adds a thin layer of corrosion-resistant metal, while the custom PVC jacket creates a moisture-resistant barrier that resists gasoline, battery acid and abrasion.

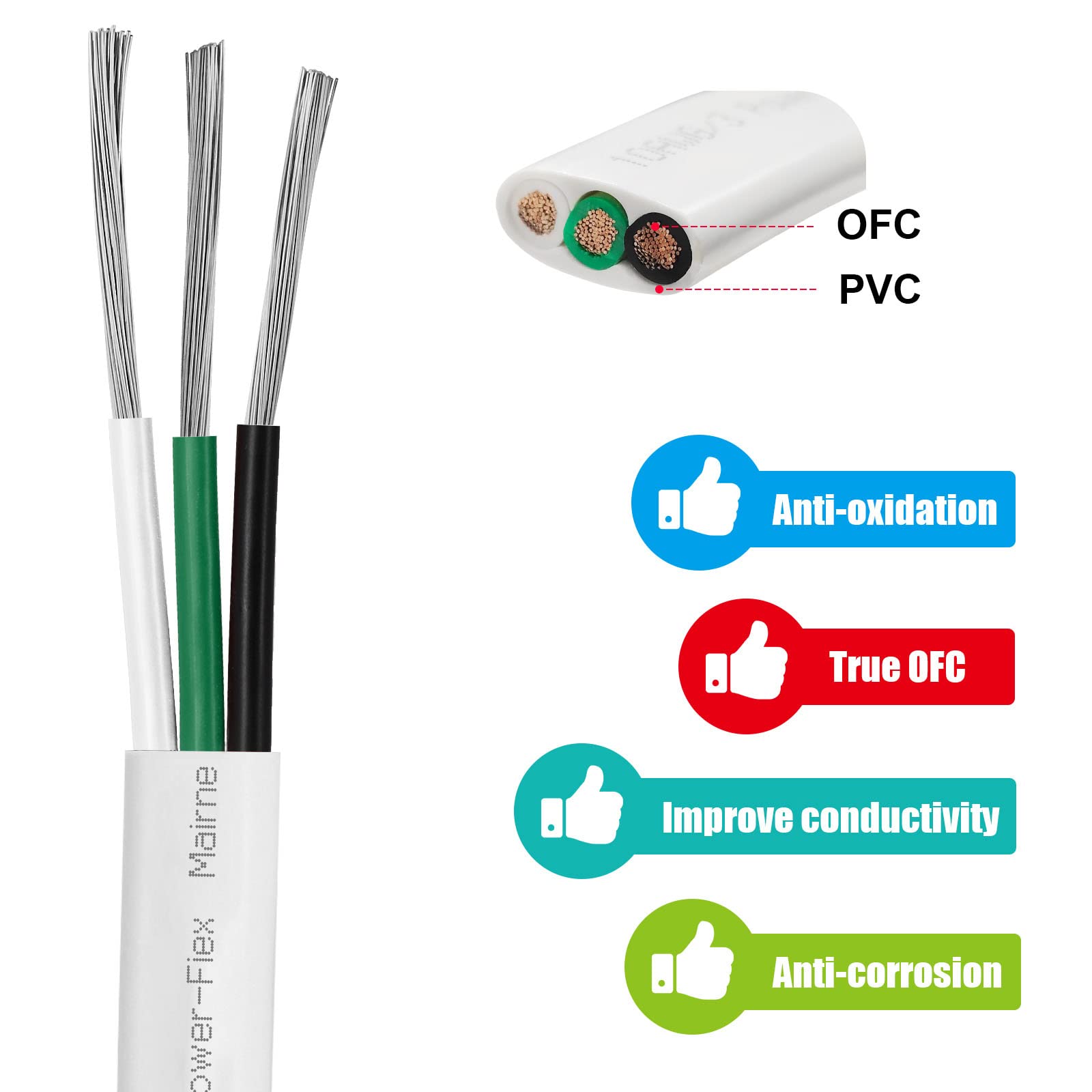

• Tinned copper reduces oxidation and maintains conductivity in humid or salty air.

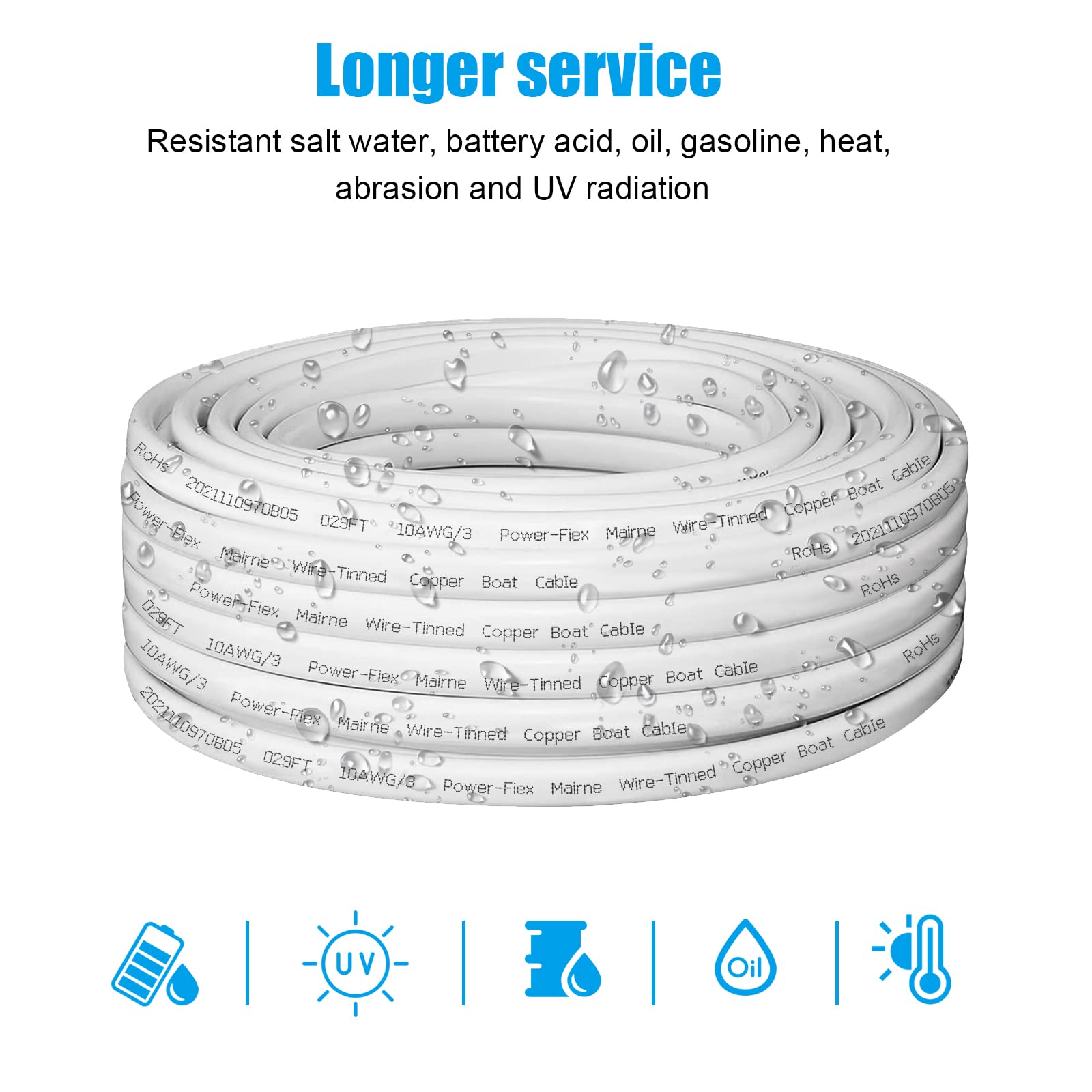

• Custom PVC resists saltwater, oils, and battery chemicals common on boats.
• Robust jacket minimizes abrasion from chafing and vibrations.

What electrical and temperature ratings should I expect?

This triplex boat cable is rated for operating voltages up to 600V, making it suitable for most low-voltage marine and auxiliary power needs. The cable tolerates temperatures up to 150°C when dry and 75°C when wet, which covers typical engine compartments, bilge areas and exposed deck installations when used within recommended limits.

• Rated voltage: up to 600V for versatile marine and accessory use.
• Temperature tolerance: 150°C dry, 75°C wet for common onboard locations.
• UL 1426 compliance ensures recognized testing and safety standards.

Which applications is this 10/3 triplex marine cable best for?

The cable is well suited for lighting circuits, battery connections, shore power accessories, solar accessory runs and small motor feeds on boats, RVs and off-grid setups. Its construction also makes it appropriate for automotive wiring, dockside runs and other environments where moisture and abrasion are concerns.

• Interior and exterior boat wiring: lighting, pumps, accessories.
• Solar accessory wiring and small off-grid electrical runs.
• Automotive and household circuit use where extra corrosion protection is needed.

How should I install and maintain this marine cable for longest life?

Install the cable avoiding sharp bends, chafe points and unprotected passages through bulkheads or deck openings; use appropriate grommets and cable clamps. Periodic inspection for jacket wear, secure terminations and clean, corrosion-free connections will prolong service life and preserve safe conductivity.

• Use proper strain relief, grommets, and clamps to prevent chafing.
• Crimp or solder terminations and protect with heat-shrink or marine-grade boots.
• Inspect connections regularly for corrosion, cracks or insulation damage.

Who is this for: Kimbluth 10 Gauge 10/3 triplex marine cable is aimed at boat owners, marine electricians, RV installers and DIYers who need a compact, corrosion-resistant power cable for lighting, small motors, battery systems and accessory circuits. If you require a UL 1426-rated, saltwater-tolerant wire with strong temperature endurance and abrasion resistance for dockside or on-board installations, this 20-foot run provides a ready, code-conscious solution.
