Wonwopn keel spool roller 4" roller for 2" tongue, 4" rubber spool with hot-dipped galvanized bracket

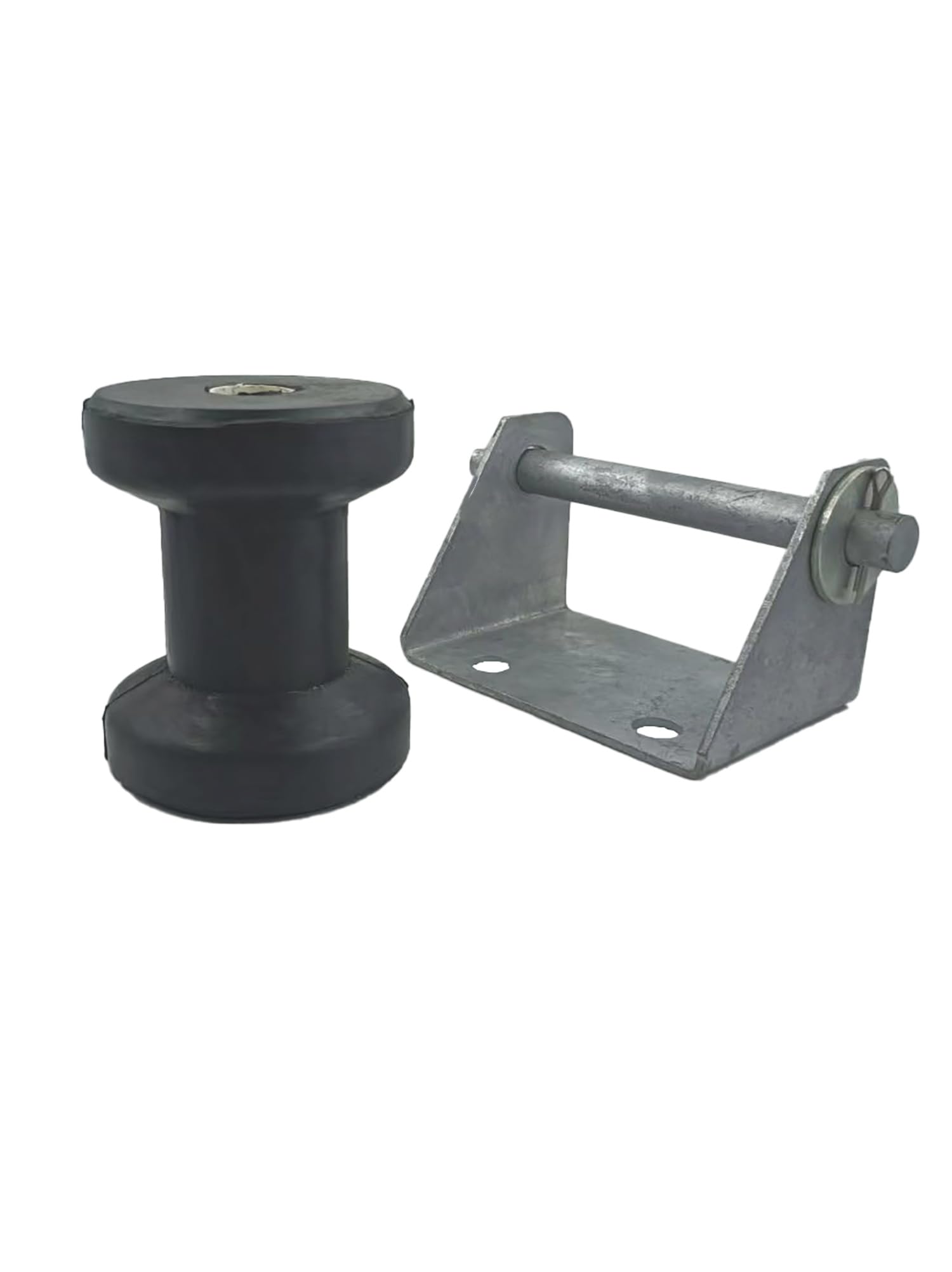

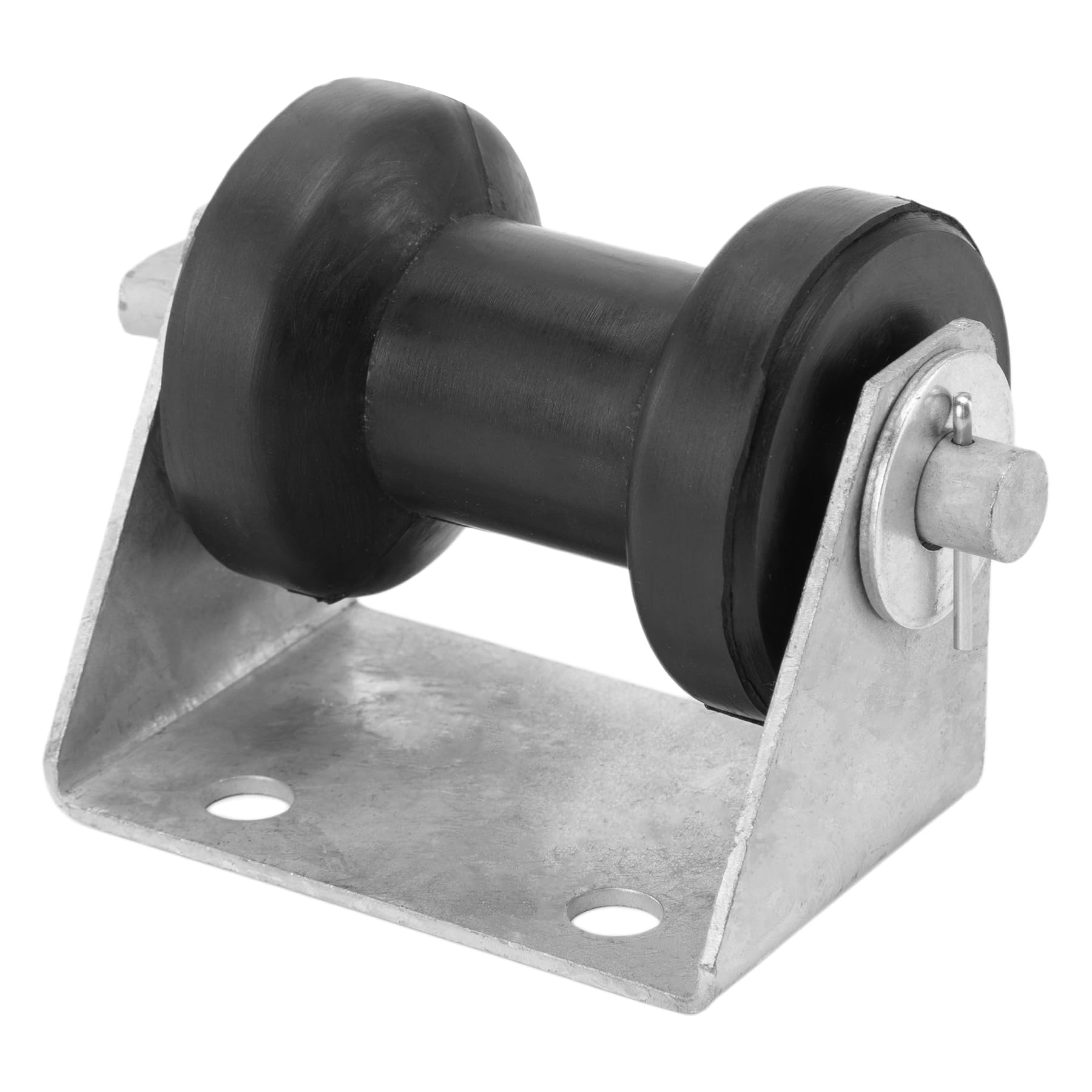

Wonwopn's 4" spool keel roller is a heavy-duty roller assembly with a 4" black rubber spool and a hot-dipped galvanized steel bracket that bolts to a 2" trailer tongue or frame to ease boat loading and support the keel.

This roller assembly pairs a durable 4" rubber spool with a robust hot-dipped galvanized bracket engineered for marine environments. The unit uses a 5/8" steel shaft and mounts with two 1/2" diameter bolt holes spaced 2-1/2" on center, designed to fasten securely to 2" trailer tongue frames. The bracket’s hot-dipped zinc coating (approximately 3–5 mil thick) provides long-lasting corrosion resistance and a dull, rugged finish that distinguishes it from thinner cold-galvanized parts.

How does this keel roller make launching and retrieving easier?

The rubber spool reduces friction between the boat hull and trailer, guiding the keel smoothly when loading and unloading. It supports the keel in a centered position to prevent lateral slipping and helps the boat align on the trailer during winching.

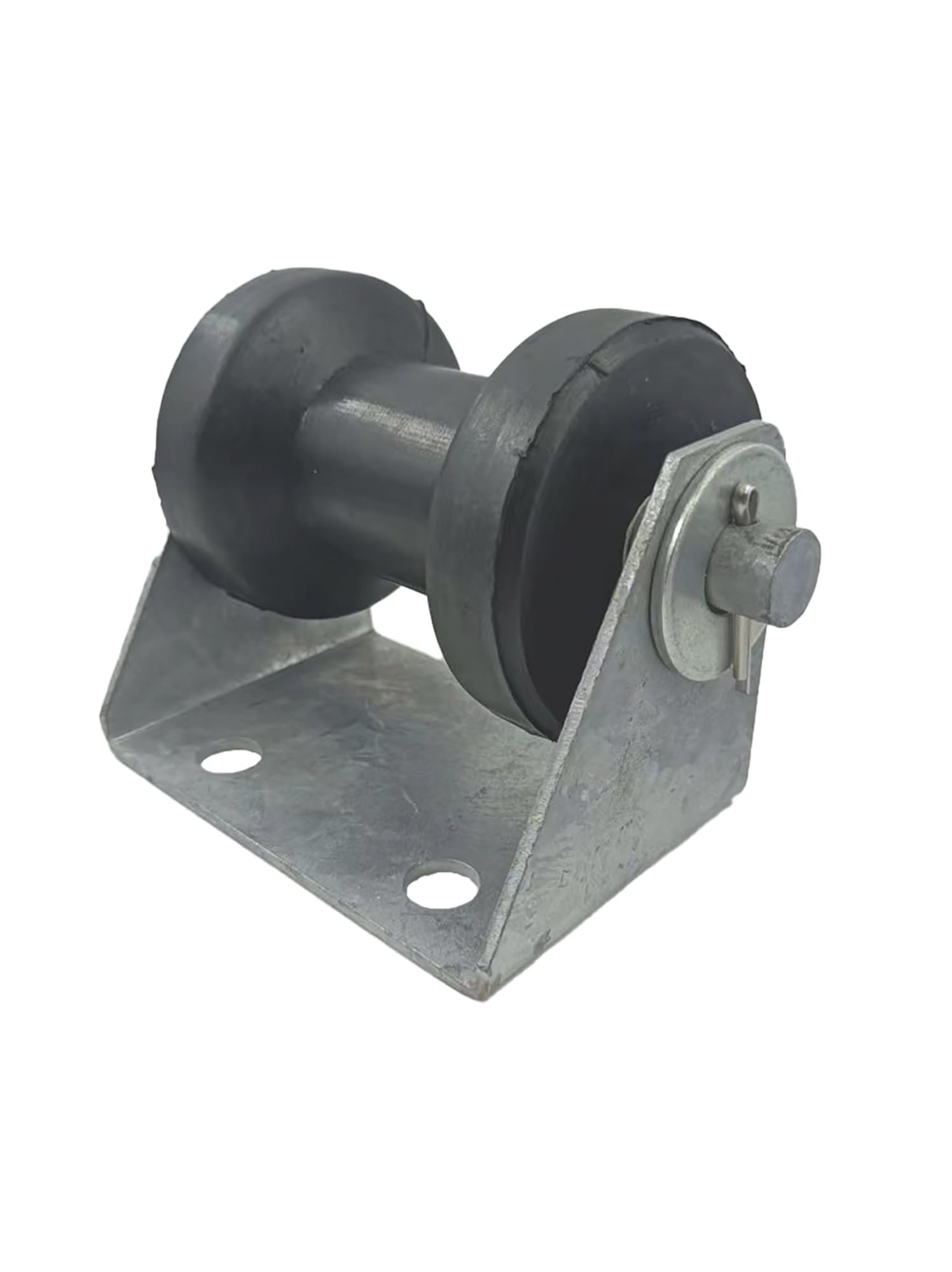

• 4" rubber spool reduces chafing and provides cushioning.
• 5/8" shaft for stable rotation under load.
• Bracket positions roller at keel contact points for reliable guidance.

What makes the bracket corrosion resistant and different from cheaper options?

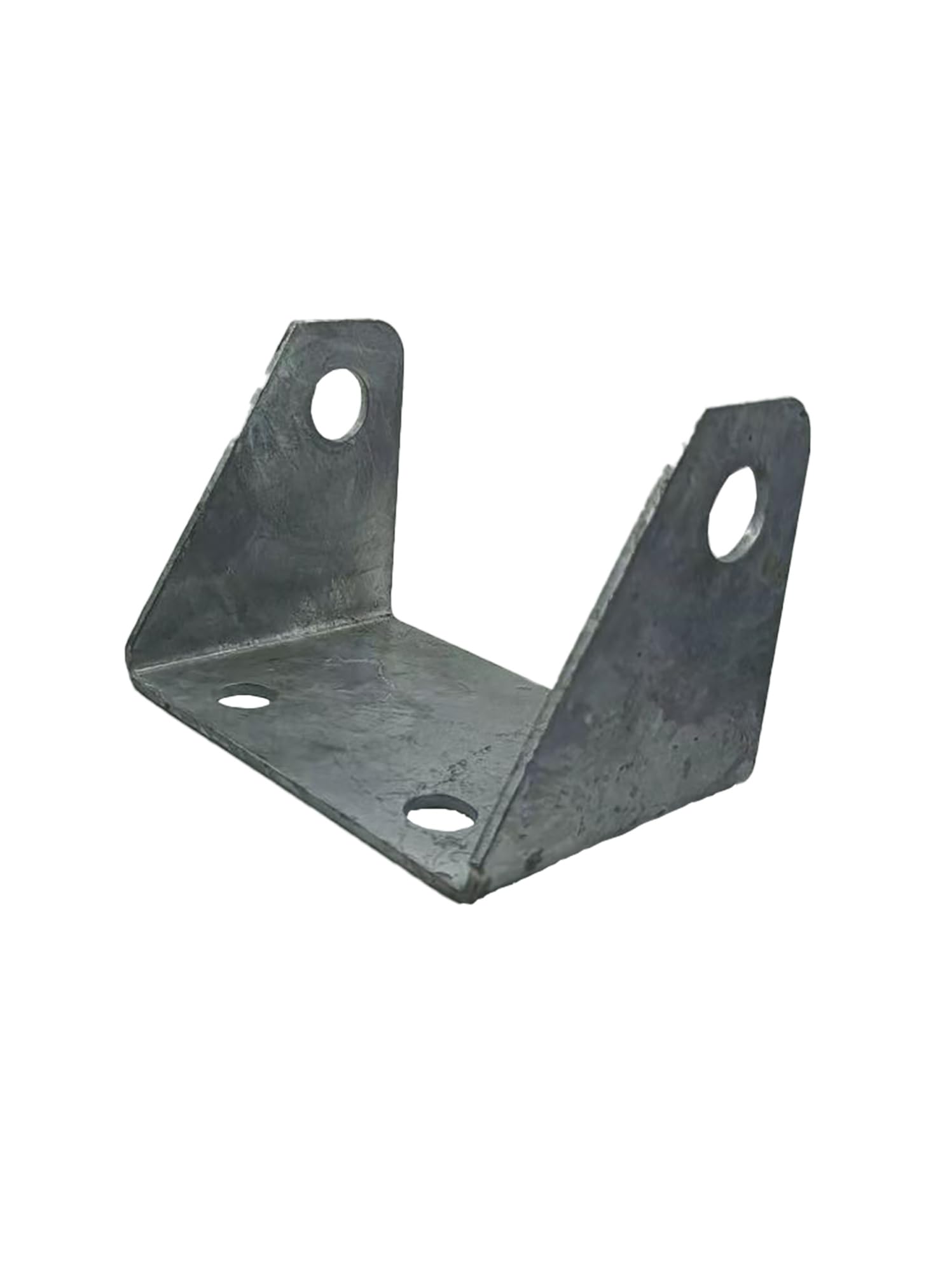

The bracket is hot-dipped in zinc, producing a thicker zinc layer—typically 3–5 mil—covering the entire part for superior protection against rust. Unlike cold-galvanized finishes, which are thinner and glossy, hot-dipped parts appear dull and textured but last longer in wet, salty conditions.

• Hot-dipped zinc coating (3–5 mil) for long-term corrosion resistance.
• Full-coverage coverage protects edges and mounting surfaces.
• Rugged, dull finish indicates hot-dip treatment versus bright cold-galvanized look.

Will this unit fit my trailer and how do I mount it?

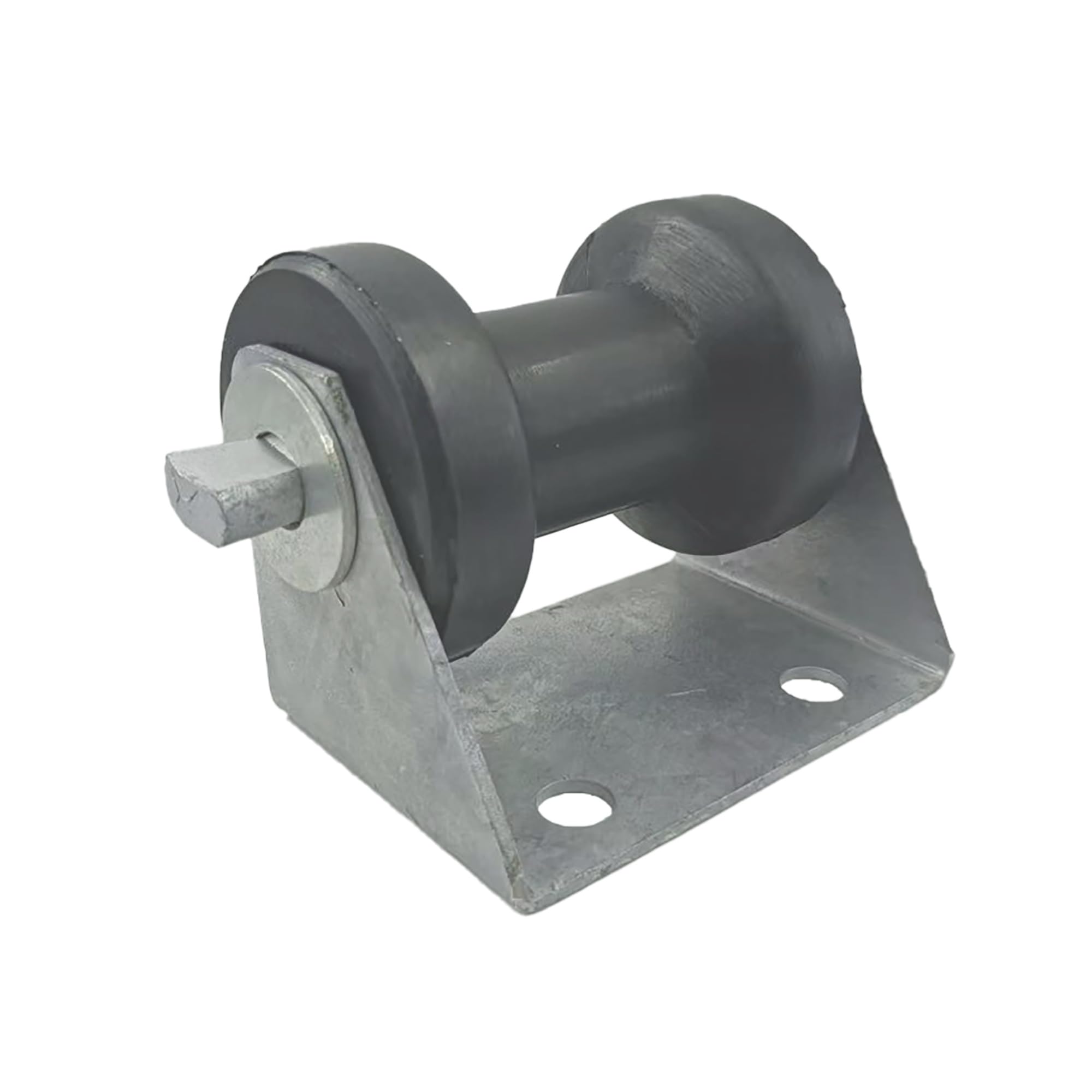

This spool roller is designed to attach to standard 2" trailer tongue frames using two bolts through the bracket’s mounting holes. The mounting holes accept 1/2" diameter bolts and are spaced 2-1/2" on center to line up with compact bracket installations.

• Fits 2" trailer tongue frames with bolt-on installation.
• Mounting hole diameter: 1/2" — use appropriate grade bolts and lock hardware.
• Hole spacing on bracket: 2-1/2" center-to-center for positioning accuracy.

How durable is the roller and what are its key dimensions?

The roller’s 4" length and rubber construction provide a balance of contact area and flexibility, while the 5/8" shaft maintains alignment and resists bending under normal trailer loads. The overall assembly is built for repeated launches and trailering in coastal or inland waters when properly installed.

• Roller length: 4" for broad keel support.
• Shaft diameter: 5/8" for reliable rotation and strength.
• Bracket material: hot-dipped galvanized steel for marine durability.

Who is this for: This Wonwopn spool keel roller is aimed at boat owners, DIY trailer-maintenance enthusiasts, and marinas that need a compact, corrosion-resistant keel support for small to medium boats. It’s especially suitable for trailers with 2" tongues that require a bolt-on roller to simplify launching, protect the keel, and extend trailer hardware life in corrosive environments.
