RHOX Forward/Reverse Switch for Club Car DS 36V – 84-06 Replacement Assembly with Resistor Contacts

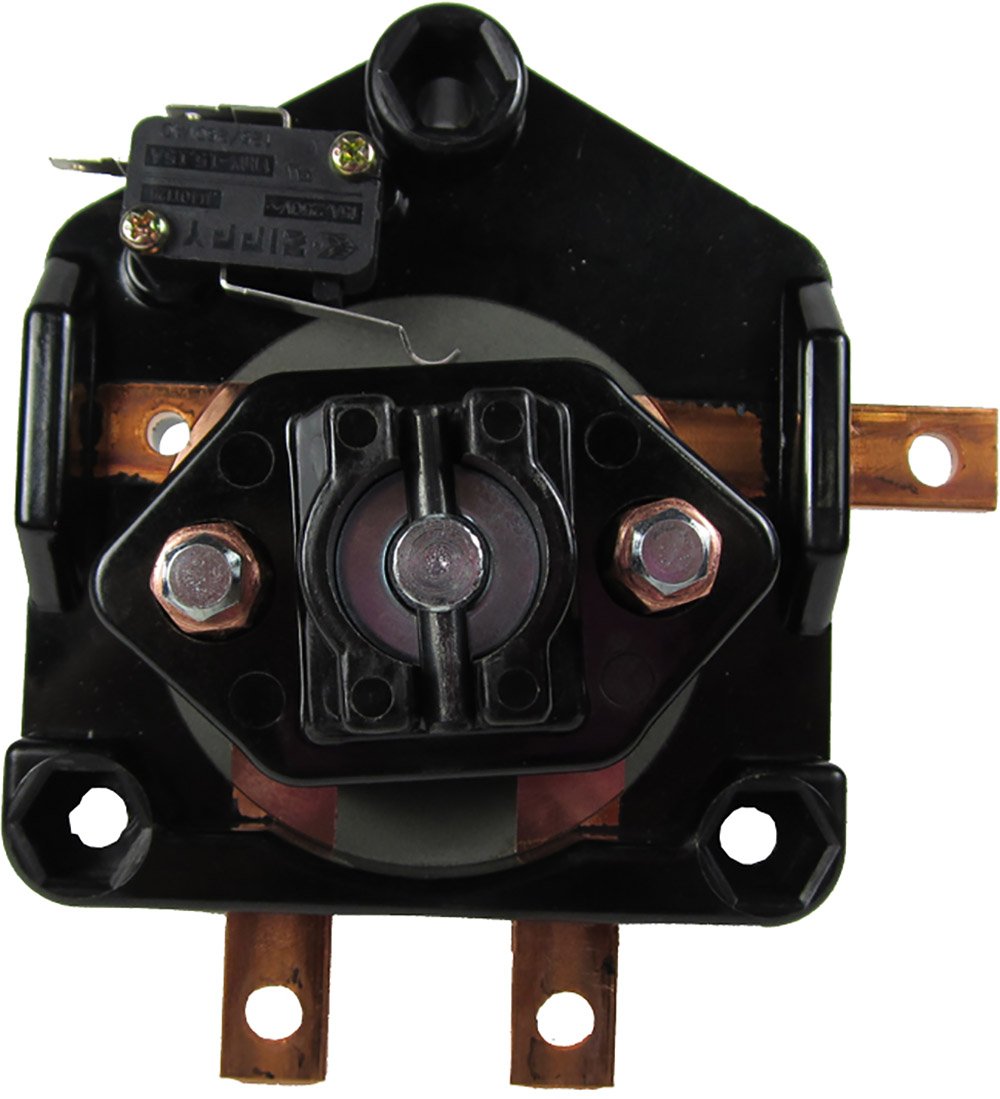

The RHOX 84-06 Forward/Reverse (F&R) Switch 693 is a direct replacement assembly for 36V Club Car DS electric golf carts that restores reliable direction control.

If your Club Car DS (1984–2006 and compatible 1983.5+ models) is showing intermittent forward/reverse engagement, clicking, or sluggish direction changes, this RHOX F&R switch assembly provides an OEM-style fix. Designed for 36-volt systems with built-in resistors and one micro-switch, the unit fits the original mounting points and wiring layout, simplifying installation and returning consistent electrical switching performance.

How does this switch restore proper forward and reverse operation?

This RHOX assembly replaces worn or failed contacts and the single micro-switch that often cause erratic direction changes. It reestablishes the electrical pathway between the controller and the motor solenoids so the cart responds predictably when you select F or R.

• Complete forward/reverse switch assembly built for 36V Club Car DS models

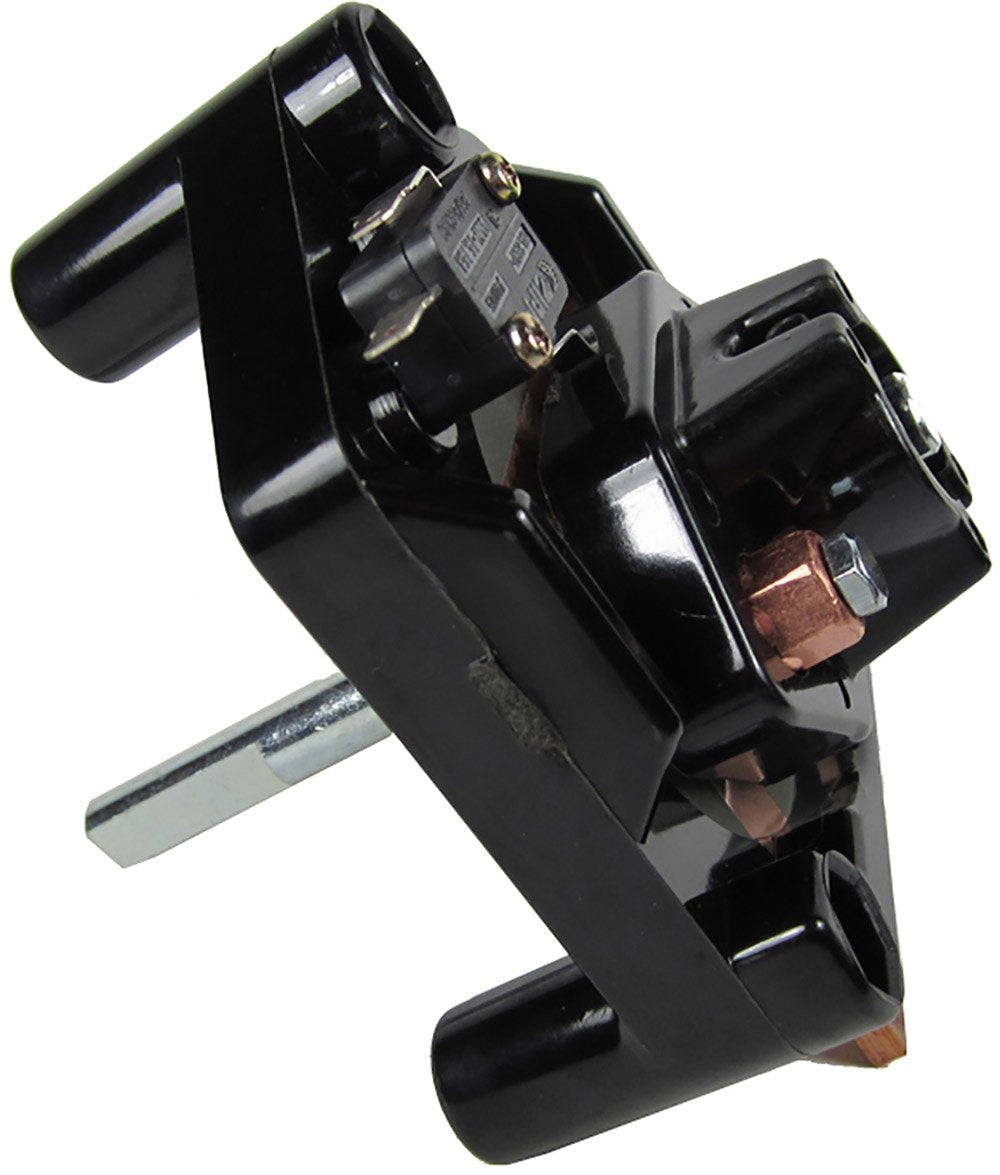

• Includes resistor contacts to match original electrical characteristics
• One micro-switch to register selector position reliably
• Mounting and wiring designed to align with factory fittings

What are the key compatibility and model details I should check?

Confirm your golf cart is a Club Car DS electric unit using a 36-volt system and produced from 1983.5 onward; this avoids mismatches in voltage or mechanical fit. The RHOX 84-06 part is intended for the same application range as the factory F&R assemblies.

• Intended for Club Car DS electric golf carts (1983.5 and newer)
• Specific to 36V systems—do not use on 48V setups
• Designed to replace assemblies with resistor contacts and one micro-switch
• Check your existing switch mounting and connector style for a match

How difficult is installation and what tools are needed?

Installation is straightforward for anyone comfortable with basic automotive or small-electric repairs; it typically involves removing the dash panel, unplugging the old assembly, and securing the new unit with existing hardware. No specialized tools are required, though a multimeter helps verify connections and safe power-off procedures are recommended.

• Basic hand tools: screwdrivers, socket set, and pliers
• Multimeter recommended to confirm de-energized circuits and correct wiring
• Direct plug-in replaceability in most factory configurations
• Typical installation time: 20–60 minutes depending on access

What maintenance or troubleshooting tips should I follow after replacement?

After installing the RHOX F&R switch, check for solid selector movement and clean, tight electrical connections to avoid heat buildup. Periodic inspection of terminals and wiring prevents future faults and helps the switch maintain long-term reliability.

• Verify secure terminal connections and clean contact surfaces
• Check for proper operation through all selector positions (F, N, R)
• Inspect wiring harness for wear, corrosion, or loose crimps
• Address any abnormal sounds or delays promptly to prevent further damage

Who is this for: The RHOX 84-06 Forward & Reverse Switch 693 is aimed at Club Car DS owners, fleet managers, and repair technicians who need a reliable replacement part for 36V electric carts. It’s suitable for do-it-yourself mechanics familiar with basic electrical work and professional service shops seeking a compatible, OEM-style assembly to restore directional control and improve cart dependability.
