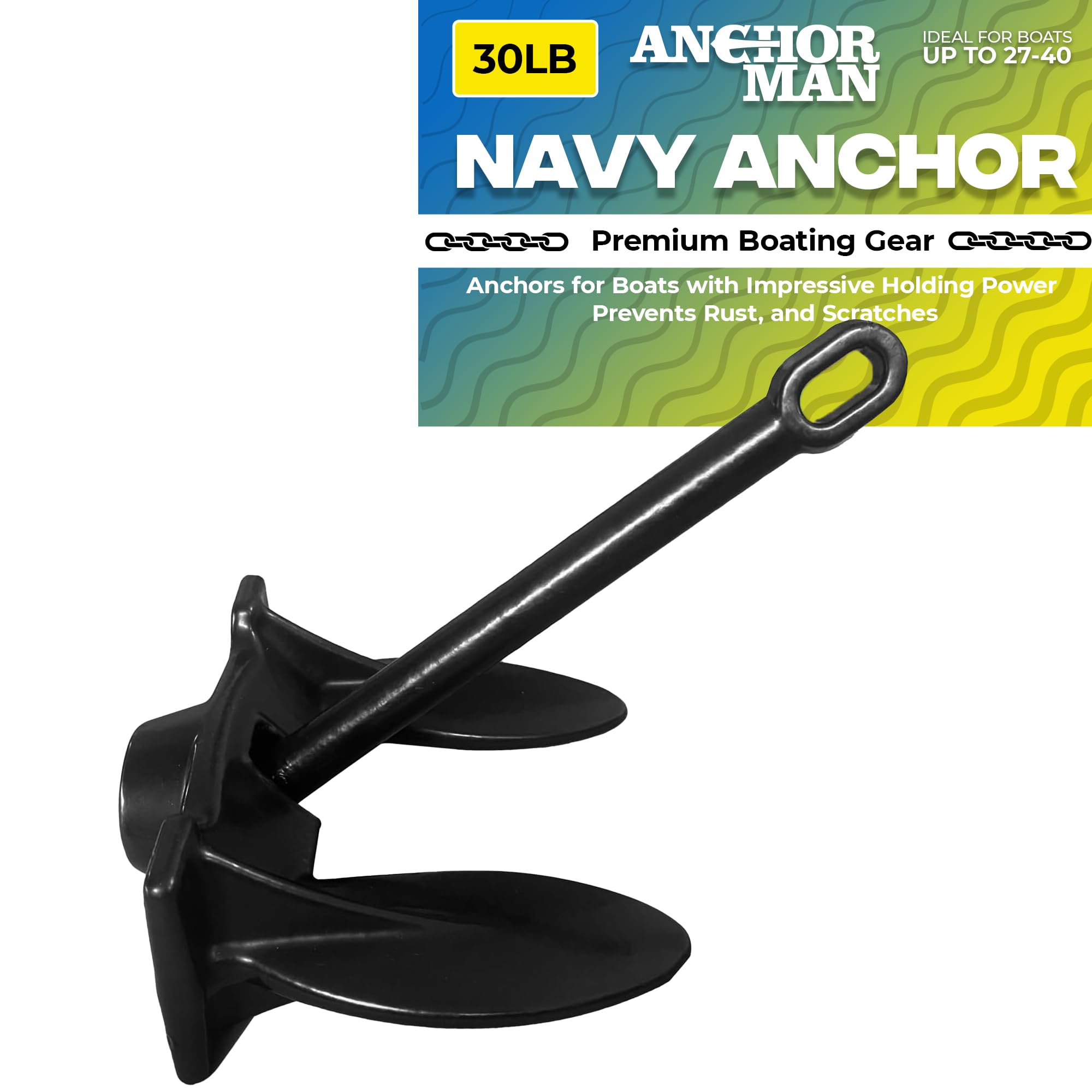

Anchor-Man Navy Boat Anchor 30 lb Coated — Naval Pattern Holding Power, Compact Stow

Designed from the same naval pattern and fluke geometry as Anchor-Man's smaller anchors, the 30 lb model delivers substantially more holding power while keeping a compact stow footprint. Its factory coating prevents deck and locker damage, and a short chain lead is recommended to maximize holding and keep the pull angle horizontal. This description explains how the anchor performs, how to rig and use it, and who benefits most from this model.

How much boat can the 30 lb Anchor-Man Navy reliably hold?

The Anchor-Man Navy 30 lb is sized to hold craft up to roughly 45 ft in typical inland and sheltered coastal conditions. The increase in weight over the smaller models translates directly to stronger penetration and bite in mud, sand and mixed bottoms.

• Rated for boats up to about 45 ft under standard conditions.
• Same fluke area and pattern as the 10/15/20 lb models — weight is the variable.
• Best for heavier hulls, deeper anchorages, and tide-prone anchorages where extra holding matters.

What rigging and set technique gives the best hold?

Rig the anchor with a 5 ft chain lead connected by a shackle between the anchor and your rope rode, run anchor-end-first. Let out 5 to 7 ft of rode for every 1 ft of water depth, then back down gently to set the flukes before shutting the engine off.

• Always use a 5 ft chain lead to add weight and keep pull angle low.
• Let out 5–7:1 scope (rode:length to depth) for reliable setting.
• Back the boat slowly to confirm the flukes bite before leaving the spot.

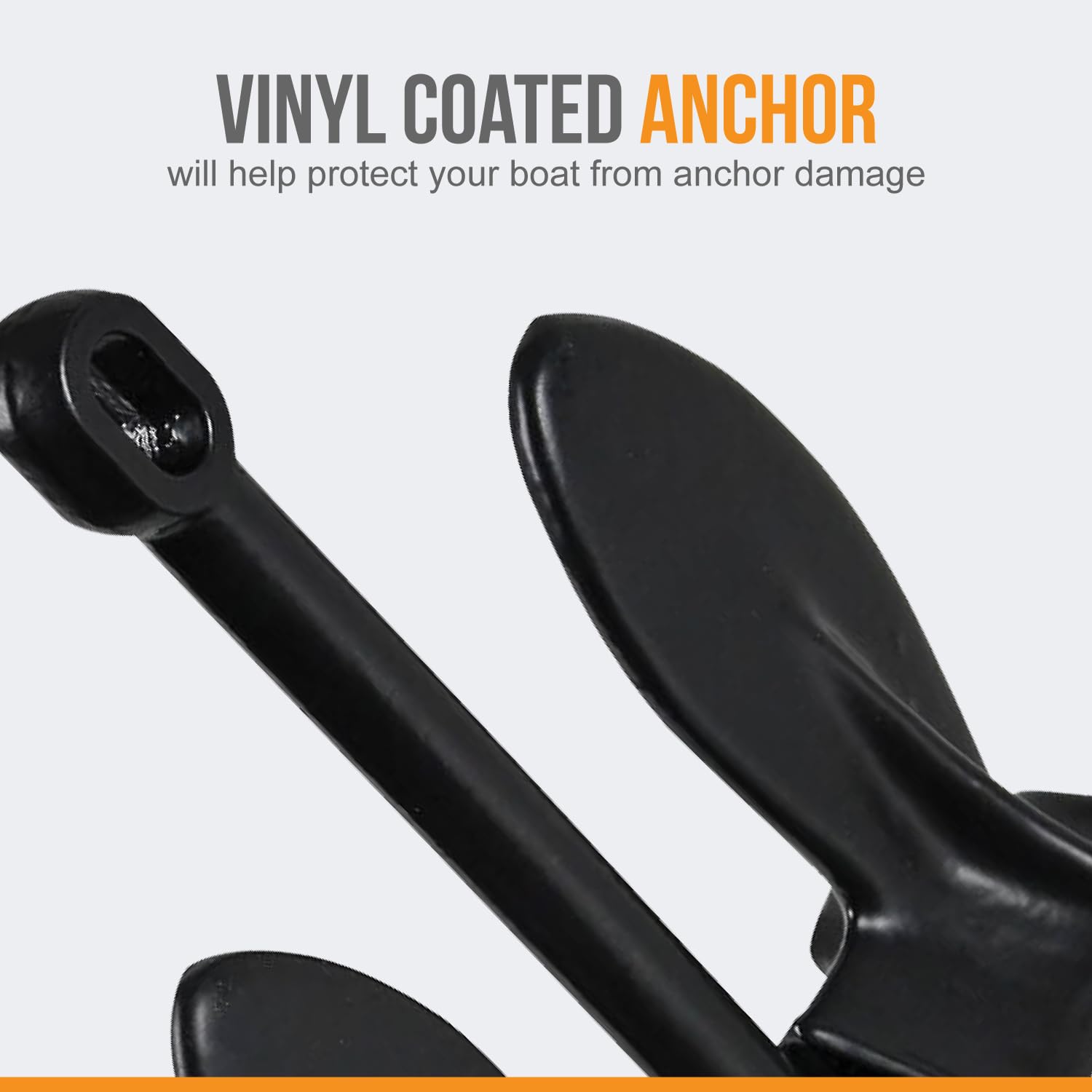

Why choose the coated finish instead of bare metal?

The factory coating protects hull gelcoat and interior lockers from chips, dents and rust streaks that bare anchors produce when wet and swinging aboard. It also preserves the anchor's appearance and reduces corrosion at the expense of slightly higher initial cost.

• Coating prevents deck and locker damage on contact.
• Reduces rust streaks and slows corrosion inside lockers.
• Ships singly in a carton to keep the finish unchipped on arrival.

How compact is the 30 lb anchor for stowage and transport?

Despite carrying three times the weight of the 10 lb model, the 30 lb Anchor-Man Navy stows in a relatively small package measuring 12.6 x 11.4 x 5.5 in. That keeps it usable on vessels with limited locker space or where easy handling is important.

• Stow dimensions: 12.6 x 11.4 x 5.5 inches.
• Only 1.6 in deeper than the 10 lb version despite heavier mass.
• Sized for single-item shipping to protect the coating.

Who is this for: boaters who want a dependable, compact anchor that holds larger dayboats, cruisers and weekend boats through tide changes or longer stops in rivers, lakes and protected bays. Choose the Anchor-Man Navy 30 lb if you need more bite than the 10–20 lb models provide, care about locker and deck protection from metal contact, and plan to rig a short chain lead to gain the full rated holding power.
