Ancor NMEA 2000 Dual Device Starter Kit, Dual Device, Marine‑Grade power and two 2m drops

The Ancor 270202 Marine Grade NMEA 2000 Dual Device Starter Kit is a ready-to-install network power and drop bundle designed to get two NMEA 2000 devices online quickly and reliably on boats and yachts.

Outfitting a small onboard NMEA 2000 network can be confusing: you need power, backbone tees, device drops and proper termination to ensure stable data flow. The Ancor 270202 kit packages the essential marine-grade components—power cable with a tee, a dual tee connector, two device drop cables and both terminators—so you can establish a compliant backbone and connect two instruments without sourcing parts individually.

What components are included and why they matter?

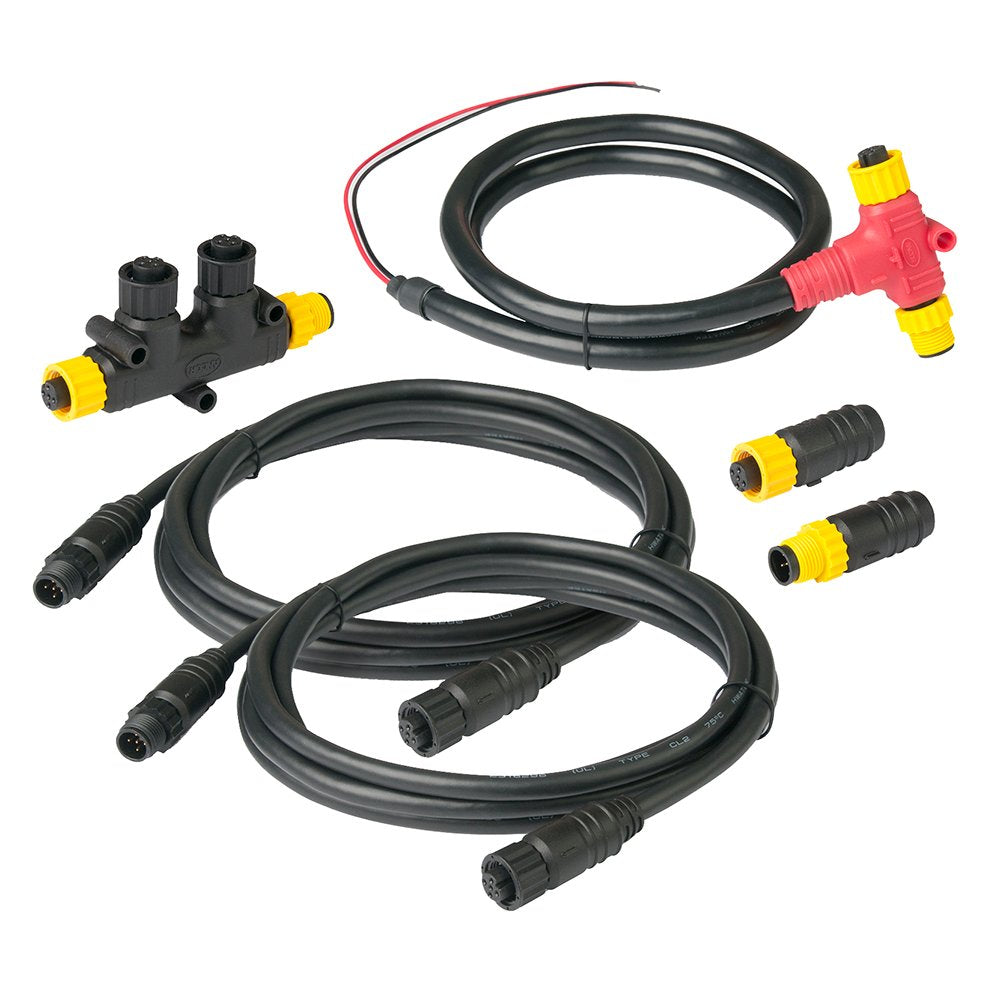

This kit contains the specific connectors and cables required to build a short NMEA 2000 backbone and attach two devices. Each piece is selected to maintain correct termination and reliable power delivery for typical small-network installations.

• 1 meter power cable with tee (item #270000) — supplies the backbone with fused power and a tee for quick routing.
• Dual tee connector (item #270103) — creates a backbone junction for two drops or for expanding the network.
• Two 2 meter drop cables (item #270302) — standard-length device drops for flexible instrument placement.
• Male and female terminators (items #270105 & #270106) — ensure correct line termination to prevent network errors.

How does this kit simplify NMEA 2000 installations on small vessels?

Instead of selecting individual fittings and worrying about compatibility or proper termination, this starter kit provides matched components ready to assemble. It reduces planning time and the risk of missing an essential piece for a two-device backbone.

• Pre-selected lengths and connectors reduce guesswork during installation.
• Includes both terminators so the backbone can be properly ended at both sides.
• Dual tee lets you create a compact, tidy backbone junction point.
• Marine-grade construction suited for wet, vibration-prone environments.

What installation layout works best with the 270202 kit?

The kit is ideal for a short linear backbone or a small daisy-chain using the dual tee as the central junction. Use the 1 m power tee near the power source, run the backbone between terminators, and attach each instrument with a 2 m drop for comfortable placement.

• Place the 1 m power tee close to the battery or fused power source.
• Run the backbone cable between the two terminators for a proper bus.
• Connect devices to the backbone with the two included 2 m drops.
• Use the dual tee to split the backbone or extend future drops if needed.

Which boats and devices are best suited for this starter kit?

The Ancor 270202 kit fits small to medium boats that need to power and connect up to two NMEA 2000 instruments, such as chartplotters, multi-function displays, instrument clusters, or sensors. It works well for new installs, upgrades, or as a compact backbone for tenders and small cruisers.

• Small pleasure craft and day boats adding two networked instruments.
• Fishing boats and runabouts installing basic navigation and sensor nodes.
• Refits where a short backbone and neat cable runs are required.
• Installers who prefer a single kit that includes power and termination.

Who is this for: The Ancor 270202 Marine Grade NMEA 2000 Dual Device Starter Kit is made for boat owners, marine electricians and installers who need a compact, dependable set of backbone components to power and connect two NMEA 2000 devices with correct termination. It’s especially helpful when you want to avoid ordering multiple separate parts and prefer a matched, marine-rated solution that speeds up installation and reduces troubleshooting.
