FLIPSKY 75100 Pro VESC ESC for Skateboard, Scooter & Ebike — 14–84V (4–20S), 100A Continuous

FLIPSKY 75100 Pro is a compact, VESC-based electronic speed controller (ESC) delivering up to 100A continuous current and programmable control for electric skateboards, scooters, and ebikes.

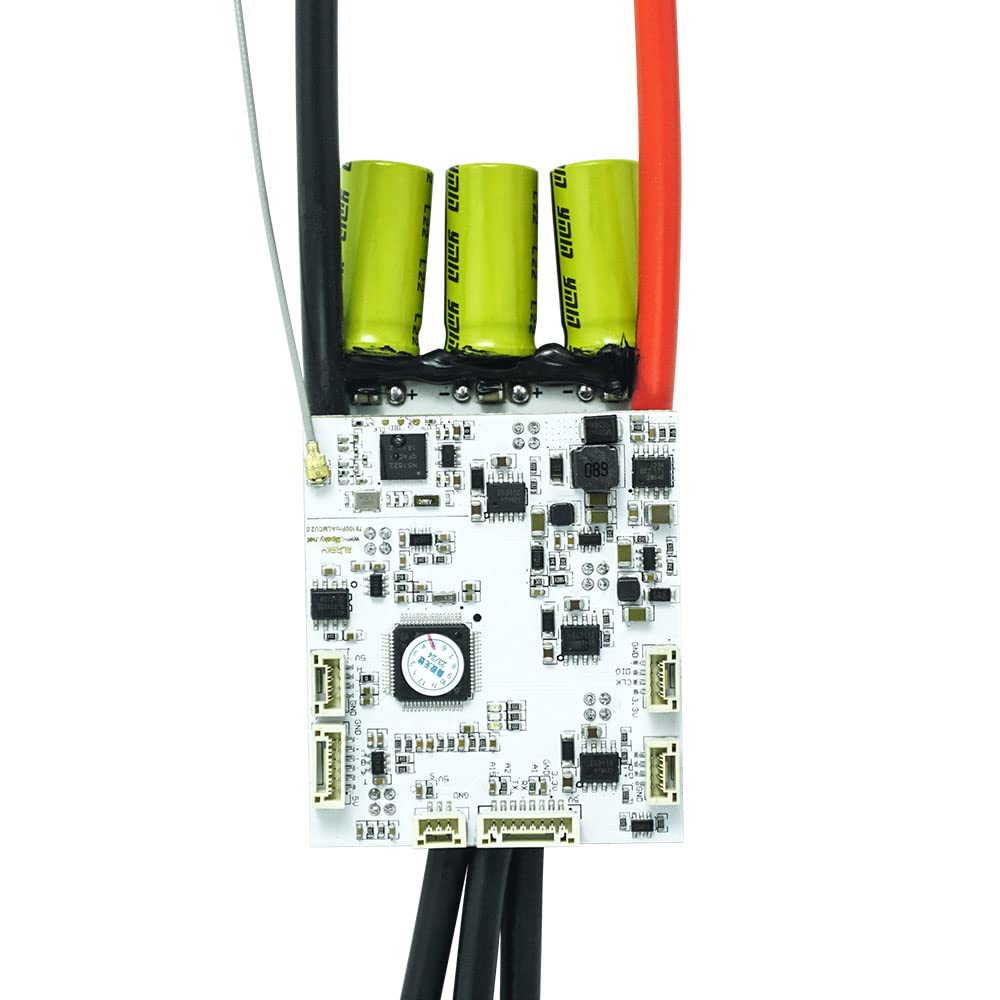

This aluminum-PCB ESC combines a higher voltage window (14–84V / 4–20S), integrated Bluetooth, and improved temperature sensing in a rugged, space-saving package. It supports both BLDC (square-wave) and FOC (sine-wave) modes, multiple sensor inputs, and standard control interfaces so you can tune motor response, braking regeneration, and safety limits with vesc_tool. Before making firmware changes, follow FLIPSKY’s recommendations to avoid damaging the unit.

How does the 75100 Pro improve ride performance?

The 75100 Pro supplies responsive throttle and stronger torque by supporting up to 120A burst current with a continuous 100A rating, and an ERPM ceiling of 150,000. FOC mode gives smoother, quieter motor operation while BLDC remains available for simpler setups.

• Voltage range 14–84V for higher-power battery packs
• 100A continuous, 120A burst for short power demands
• FOC and BLDC modes for smoothness or raw response
• ERPM 150,000 to support high-RPM motors

What inputs, sensors and programmability does it support?

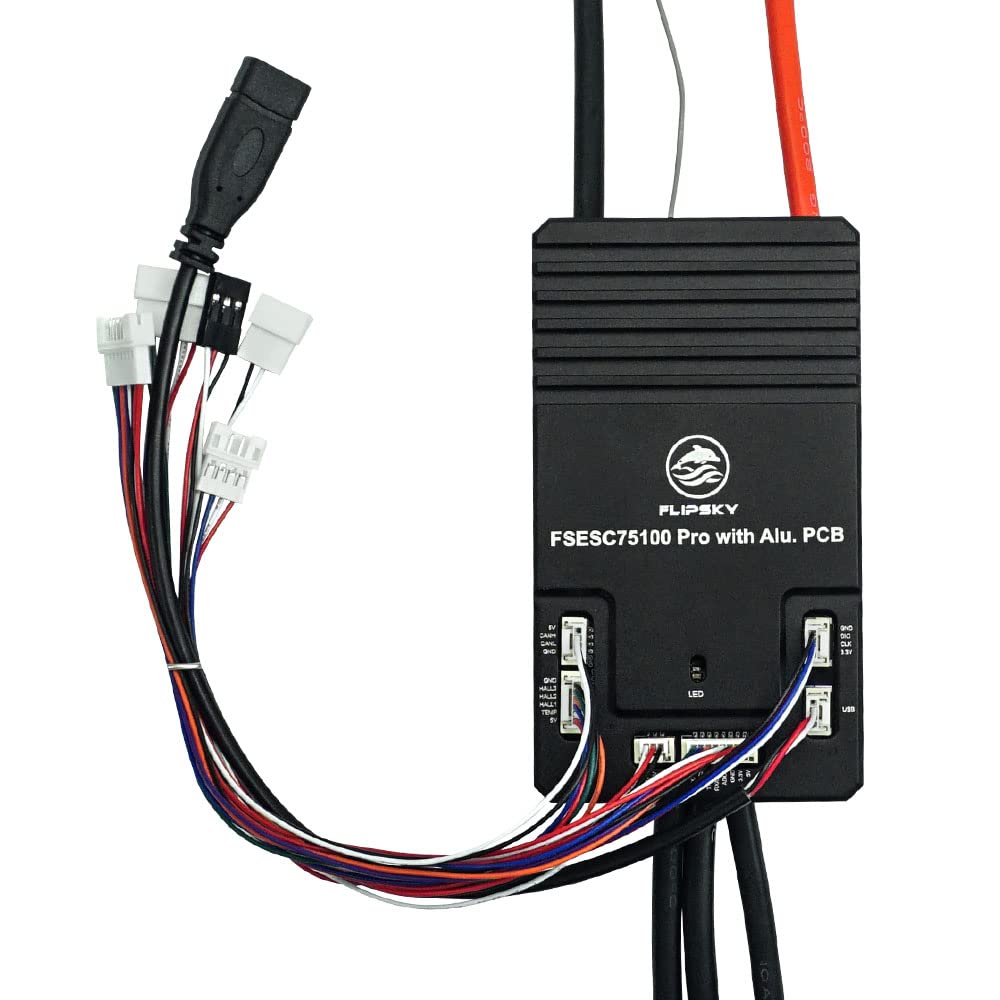

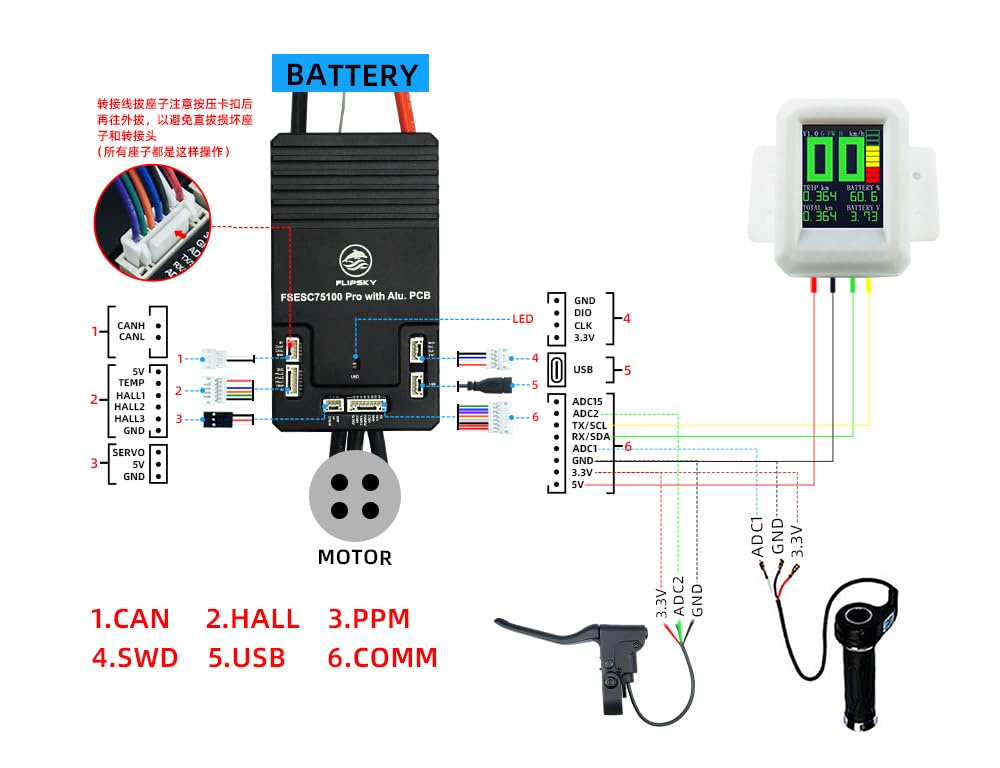

This ESC is built on the VESC ecosystem, so it is fully programmable with vesc_tool and accepts common sensor and input standards. You can configure ABI, Hall, AS5047/AS5048A sensors and control via PPM, ADC, NRF or UART—plus USB and CAN for setup and networked applications.

• Supported sensors: ABI, Hall, AS5047, AS5048A
• Control ports: USB, CAN, UART for diagnostics and multi-ESC setups
• Input options: PPM, ADC, NRF, UART for remotes and telemetry
• Programmable parameters: current limits, braking, thermal protection

What safety and installation details should I know?

The 75100 Pro adds more sensitive temperature monitoring and requires correct wiring and firmware settings to avoid damage. FLIPSKY upgraded the phases wiring to 10AWG and recommends keeping absolute maximum currents below 250A. Important firmware notes and phase filter settings are required to protect the ESC.

• Wire gauge: 10AWG power wires for improved current handling
• BEC output: 5V @ 1.5A to power auxiliary electronics
• Firmware: factory firmware 5.2 recommended; exercise caution upgrading
• Phase filter: set to "false" in vesc_tool when using firmware ≥5.3

Who is this for: The FLIPSKY 75100 Pro suits advanced DIYers, e-skate and ebike builders, and small-robotics integrators who need a programmable, high-voltage ESC in a compact aluminum-PCB package. It’s ideal if you want VESC-level configurability, support for multiple sensor types, and the ability to handle larger battery packs. If you plan to change firmware, follow FLIPSKY’s warm tips—keep factory firmware 5.2 when advised, avoid enabling the phase filter on newer firmware without guidance, and do not restore default parameters via the wizard if specific settings were used.

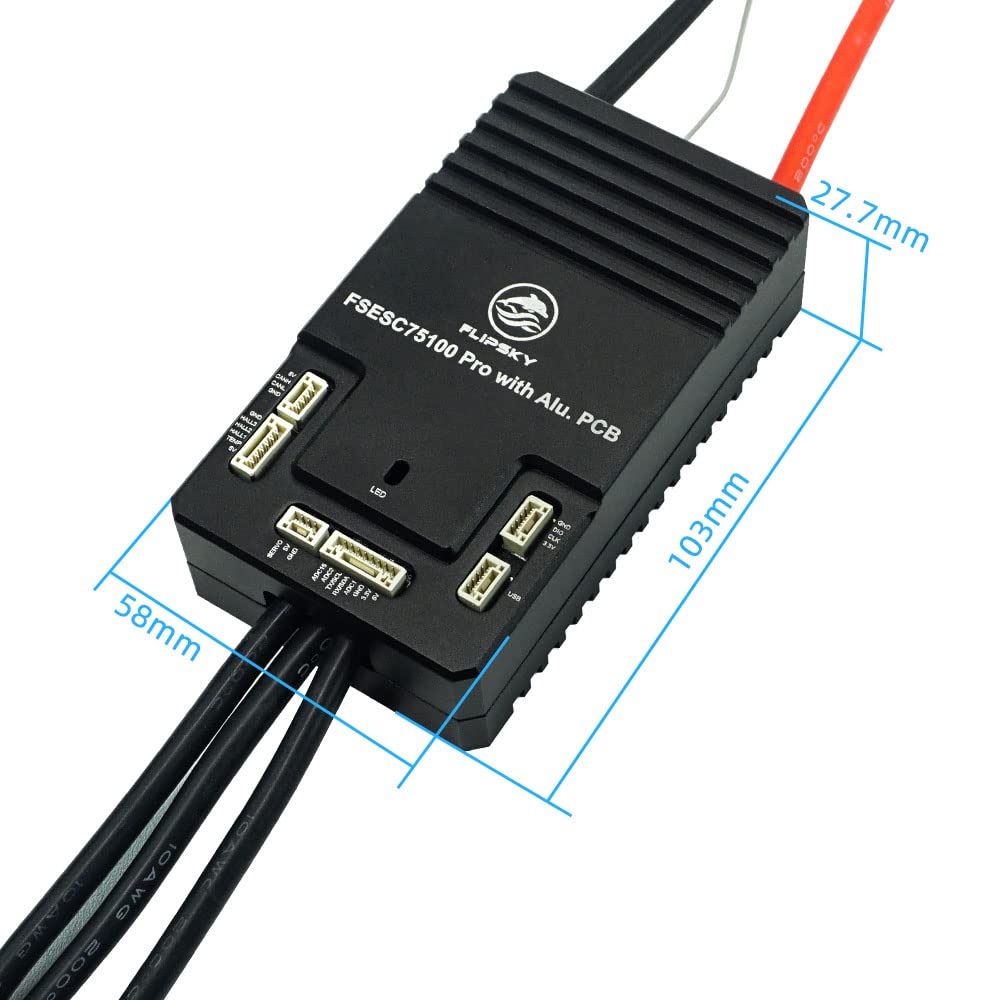

Additional notes: Size L103 × W58 × H27.7mm makes it suited for tight enclosures; ensure proper cooling and observe the absolute maximum current limits. For any questions or technical support, FLIPSKY offers customer help to assist setup and troubleshooting.
