GODCTSUP 360W Golf Cart DC Converter 48V/36V to 12V — 30A Regulated, IP68 Waterproof Aluminum

The GODCTSUP 360W DC converter reduces 36V or 48V input to a stable 12V output at up to 30A, protecting your golf cart electronics with high conversion efficiency and waterproof aluminum housing.

Designed for golf carts from brands like Club Car, EZGO and Yamaha, this compact step-down regulator provides reliable 12V power for lights, accessories, and auxiliary systems. The unit accepts either 36V or 48V battery packs and delivers up to 360W with conversion efficiency as high as 98%, making it an efficient solution to run 12V components without adding a separate battery. Its rugged aviation-grade alloy case, IP68-rated sealing, and built-in protections make it suitable for outdoor use on fairways and in garages.

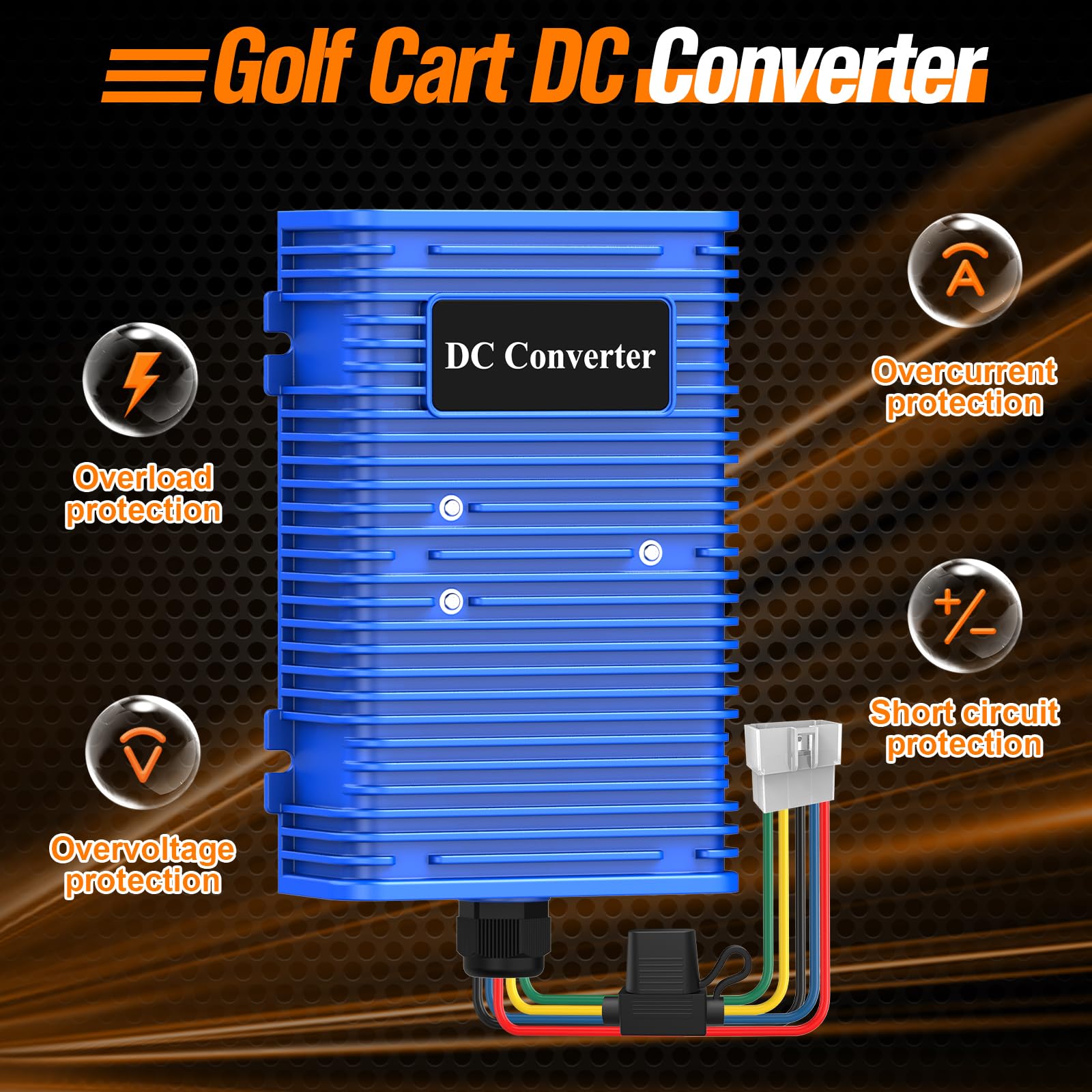

How does this converter protect my golf cart's electrical system?

The GODCTSUP converter includes anti-reverse protection and a start-wire control to prevent backflow and accidental activation. These features reduce stress on the battery and downstream electronics during startup and shutdown events.

• Anti-reverse circuit prevents current from flowing back into the battery.
• Start wire controls when the converter powers on, avoiding unwanted operation.

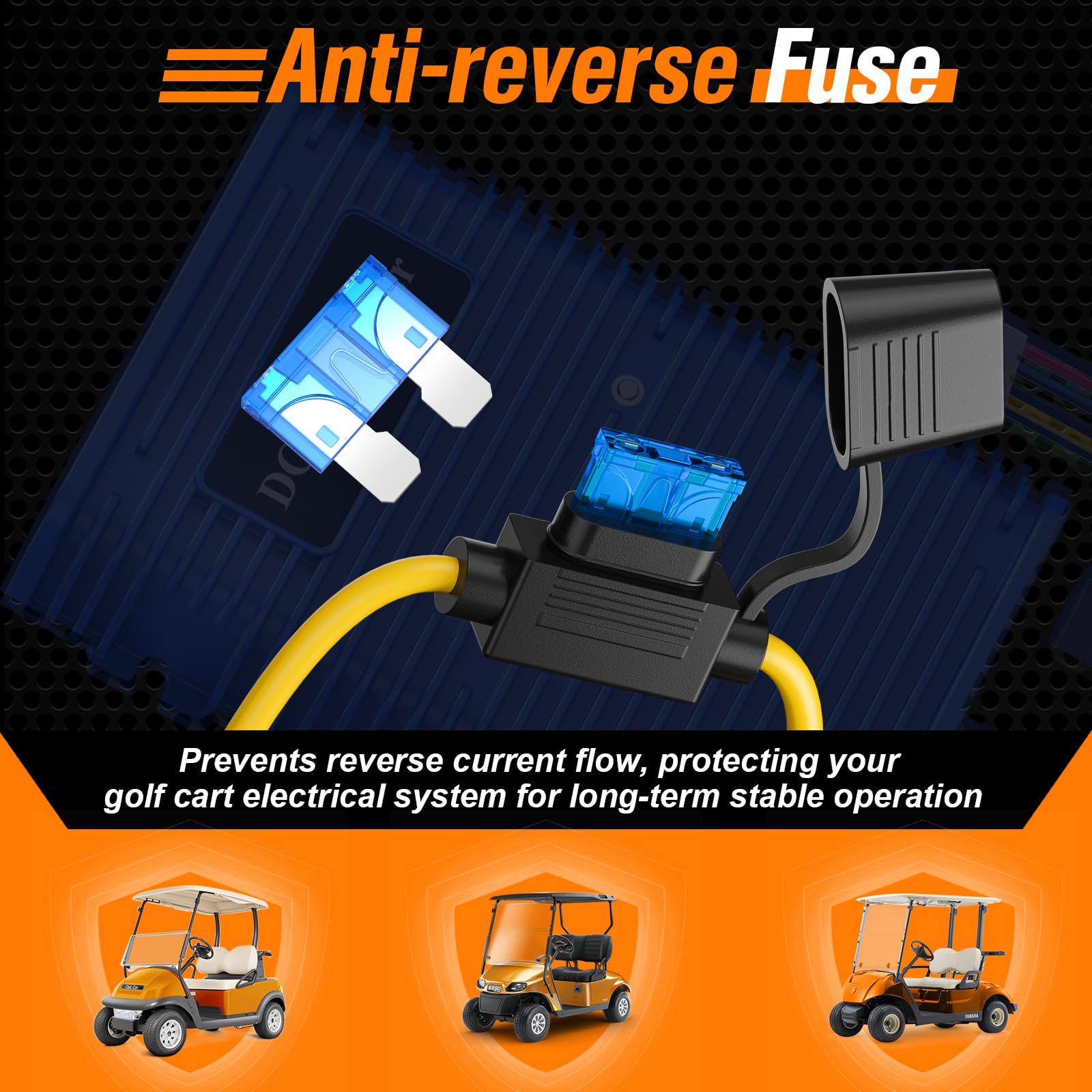

• Integrated 30A fuse protects against overloads and shorts.
• Aluminum housing and thermal design dissipate heat under load.

What input and output specifications should I expect?

This step-down unit accepts either DC 36V or 48V inputs and produces a regulated 12V output at up to 30A (360W). Its high conversion efficiency reduces energy waste and minimizes heat generation during normal operation.

• Input voltage: DC 36V / 48V selectable.
• Output voltage: 12V regulated at 30A maximum (360W).

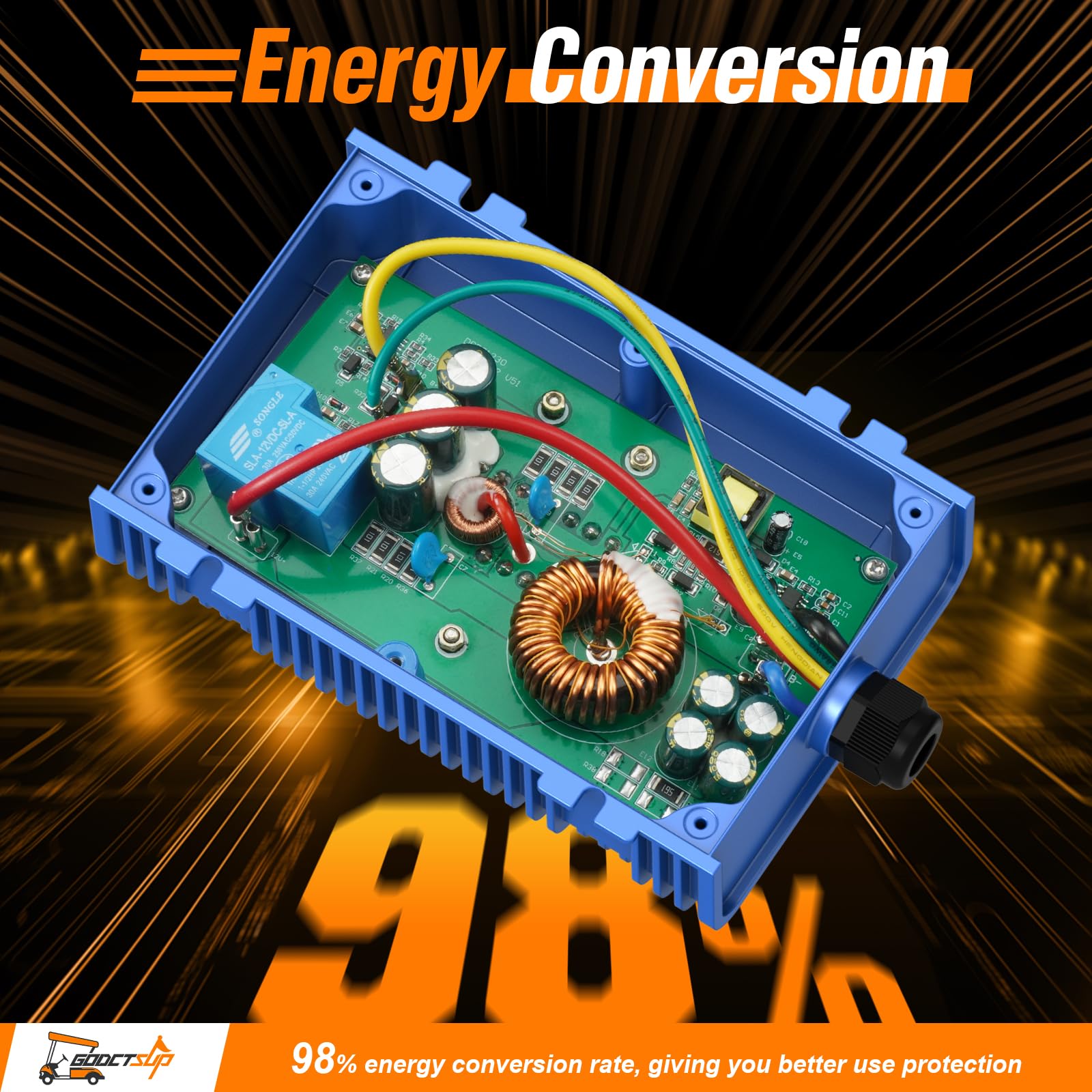

• Efficiency up to 98%, improving battery usage and runtime.
• Includes a 30A fuse for electrical safety.

How durable and weather-resistant is the unit for outdoor use?

The converter is built with an aviation-grade aluminum alloy shell and sealed for IP68 waterproof performance, making it suitable for wet conditions and dusty environments often encountered on golf courses. Corrosion-resistant materials and efficient cooling extend service life.

• Aviation aluminum housing for impact resistance and heat dissipation.
• IP68 sealing protects against water immersion and dust ingress.
• Corrosion-resistant finish for long-term outdoor durability.
• Compact footprint mounts easily under seats or in compartments.

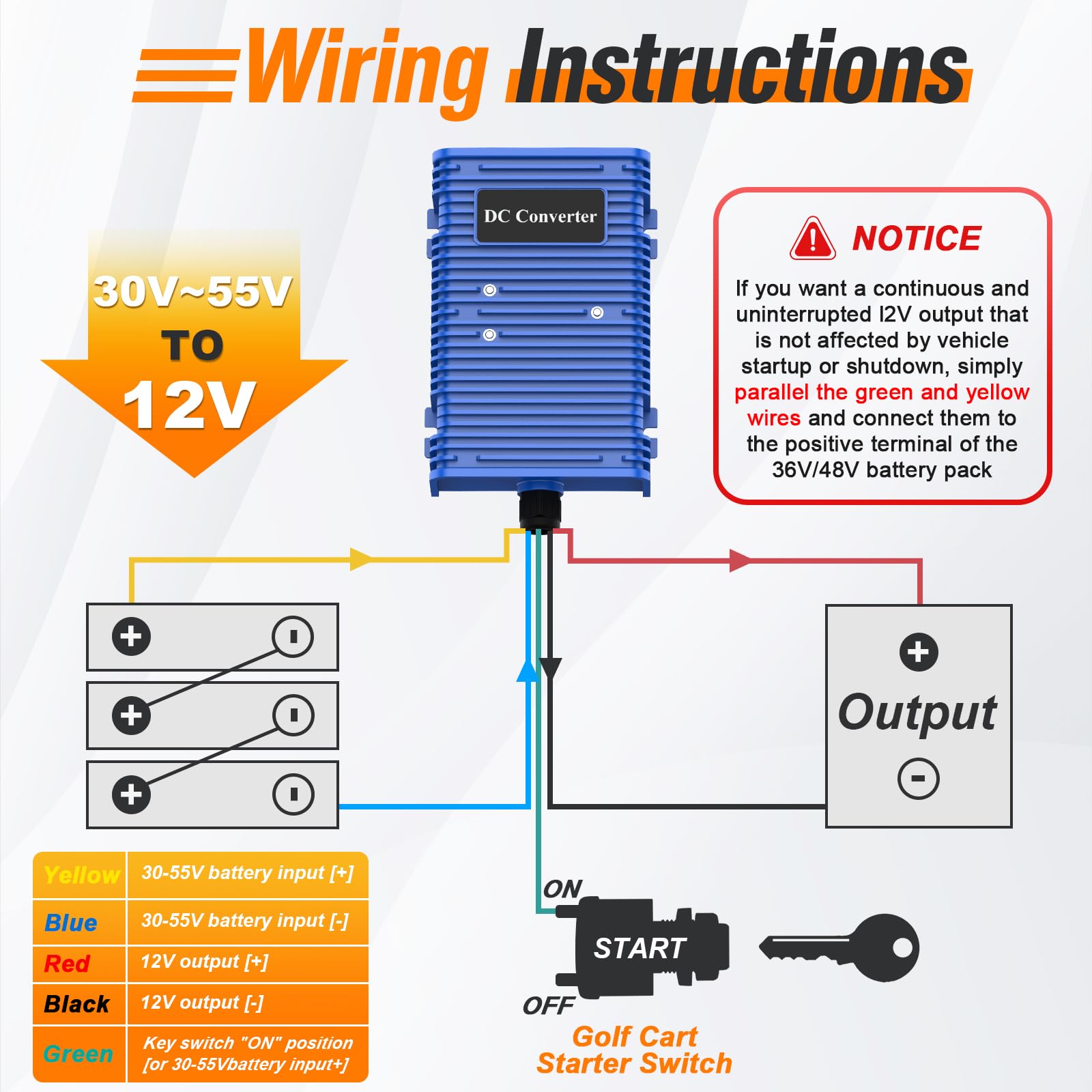

How do I get uninterrupted 12V power when the vehicle cycles on and off?

If you need continuous 12V output regardless of the vehicle's ignition or power state, the converter provides a simple wiring option: parallel the green and yellow start wires and connect them to the positive terminal of the 36V/48V battery pack. This bypasses the start-wire control to maintain constant output.

• Parallel green and yellow wires for continuous 12V output.
• Connect the paralleled wires to the battery positive terminal.
• Retains built-in fuse protection even in continuous mode.
• Useful for permanently powered accessories like GPS or security devices.

Who is this for: Golf cart owners, fleet managers, and DIY technicians who need a reliable way to power 12V accessories from 36V or 48V battery packs will benefit from the GODCTSUP 360W DC converter. It's especially useful for upgrading older carts, consolidating power sources, or adding LED lighting, radios, GPS units, and other 12V devices without installing a separate 12V battery. Technically inclined users will appreciate the straightforward start-wire options and the robust, waterproof enclosure, while maintenance teams will value the integrated fuse and high-efficiency design that minimizes heat and conserves battery energy.
