Guest Battery Selector Switch 230A, Universal Mt Selector w/out AFD, 3/8" Lug Capacity, Impact‑Resistant

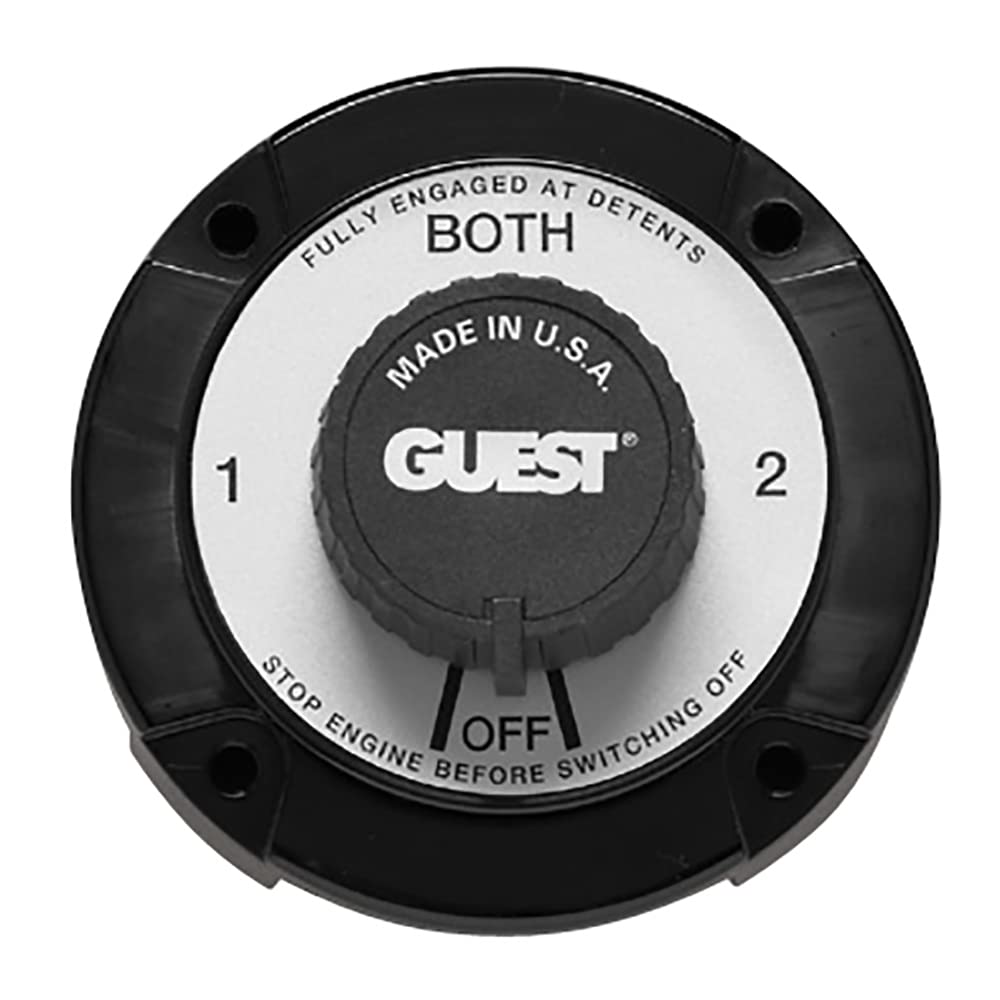

The Guest 2111A is a heavy-duty universal-mount battery selector switch (no AFD) that delivers 230A continuous and rugged, weather-resistant control for single-battery or multi-battery marine and mobile electrical systems.

Compact and built for durability, the Guest 2111A selector switch provides reliable manual battery selection for boats, RVs, utility vehicles, and work machines where a simple, robust electrical control is required. It combines long stud lengths for easier cable termination with heavy-duty copper sweep contacts and an impact-resistant polycarbonate housing, all sized to fit in constrained panels while handling demanding current loads.

What does the Guest 2111A switch do and where is it used?

The 2111A lets you manually choose between battery banks or combine them, controlling power flow without electronic switching or automatic failover devices. It’s commonly installed in marine helm panels, RV battery compartments, service vehicles, and industrial equipment that need a straightforward, high-current selector.

• Manual battery selection: Off, Battery 1, Battery 2, Both (model wiring dependent)
• Rated 230 amps continuous and 345 amps momentary for heavy loads
• Universal mount fits standard panel cutouts for easy retrofit
• Used where simplicity and durability are prioritized over automatic switching

How does its construction improve installation and longevity?

Guest designed the 2111A with longer stud lengths to simplify cable routing and assembly in cramped compartments. Internals use heavy-duty copper sweep contacts for secure conductivity, while the polycarbonate housing resists impacts and environmental exposure to protect moving parts.

• Longer studs reduce strain on lugs and make routing thicker cables simpler
• Copper sweep contacts provide positive circuit engagement under load
• Impact-resistant polycarbonate housing shields internal components from moisture and debris
• 3/8" cable lug capacity accommodates common marine and vehicle cable sizes

What electrical and physical specifications should I plan for?

The switch’s electrical limits and dimensions determine suitable applications and mounting clearance. Use these specs to match fusible protection, wire size, and panel cutout during installation planning.

• Continuous current rating: 230 amps; momentary rating: 345 amps for starting loads
• Cable lug size: 3/8" to fit standard battery cable lugs and hardware
• Overall dimensions: 5.0" x 2.75"—allow room behind the panel for stud clearance
• Universal mount design for straightforward retrofit into many existing installations

How do I wire and maintain the selector for safe operation?

Correct wiring and periodic inspection preserve reliable performance: use the right lug hardware, torque to manufacturer recommendations, and inspect contacts and housing for corrosion or damage. Always isolate power before servicing and size fuses or breakers to system requirements.

• Use 3/8" lug-compatible battery cable and properly rated lugs or terminals
• Follow recommended torque on studs; secure cable routing to avoid stress
• Install appropriately sized fuses or circuit breakers matching cable and load
• Inspect for corrosion and clean or replace components as needed

Who is this for? The Guest 2111A is aimed at boat owners, RV enthusiasts, fleet managers, and contractors who prefer a dependable, manually operated battery selector built for high current and harsh conditions. Choose this switch if you need a straightforward, serviceable solution with robust contacts, longer studs for easier installation, and a tough housing that tolerates marine and mobile environments without relying on automatic failover electronics.
