HOZAN spoke threader for #14 plain spokes, BC2.0 (56 TPI), compact die-head for stainless and iron, Size #14

HOZAN C-702-14 is a dedicated spoke threader that cuts reliable BC2.0 (56 threads) threads into #14 plain spokes for stainless or iron rims.

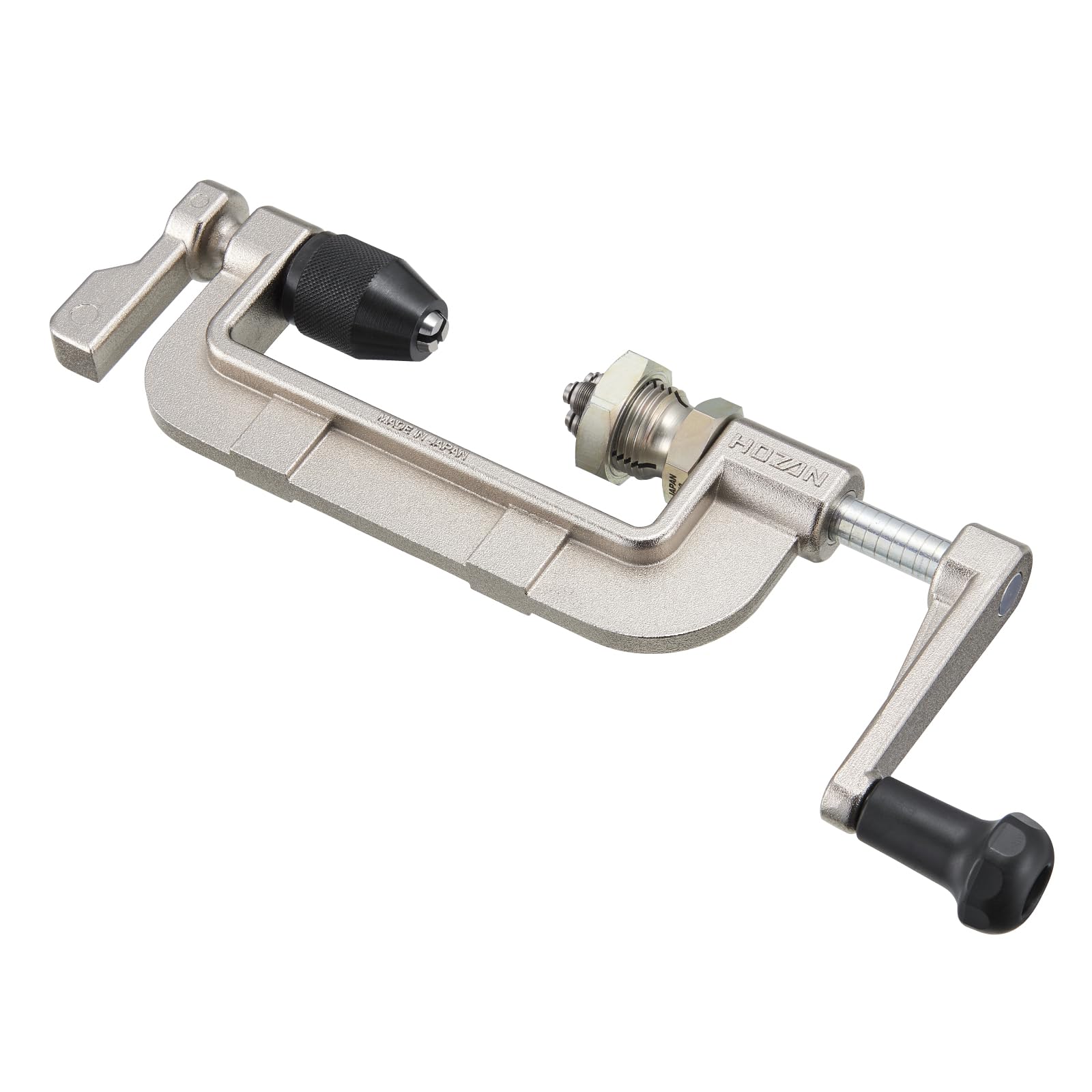

This compact die-head threader is built to create consistent, durable threads on plain bicycle spokes so you can fit nipples quickly and accurately. The roller is constructed from hardened die steel for long wear, and the screw-rolling design helps the tool bite into stainless and iron spokes with minimal effort. It ships with the standard #14 die head and is sized for spokes 3.5 inches (90 mm) and longer. Follow lubrication and sizing guidance to avoid damage and ensure smooth operation.

How does the C-702-14 make threading spokes simpler?

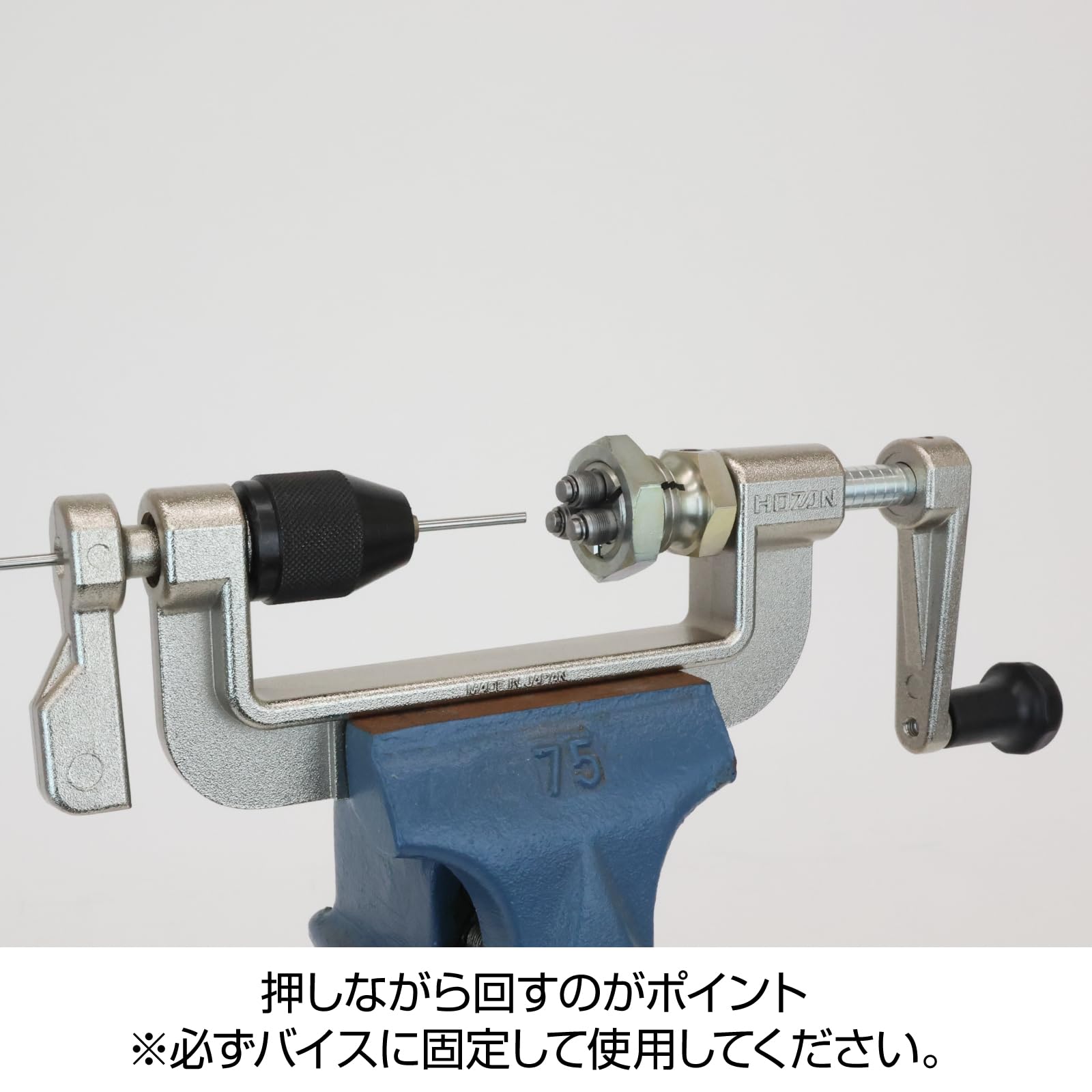

The C-702-14 uses a screw-rolling roller that draws the die onto the spoke, reducing hand force and creating uniform threads. Because the roller bites into the metal, it prevents slippage and helps maintain concentricity so nipples seat properly.

• Die-steel roller for high wear resistance
• Screw-rolling action for controlled cutting
• Consistent BC2.0 (56 threads) pitch for standard nipples
• Works on stainless and iron plain spokes

Which spokes and sizes are compatible with this threader?

This model is specifically calibrated for plain (non-butted) #14 spokes and is not intended for other diameters or shapes. It requires a spoke length of at least 3.5 inches (90 mm) so the die can seat and cut correctly without damaging the tool or the spoke.

• Spoke gauge supported: #14 (plain)
• Minimum spoke length: 3.5 inches / 90 mm
• Screw size output: BC2.0 with 56 threads per inch
• Materials: stainless steel and iron spokes compatible

What maintenance or preparation is required before using it?

To protect the roller and ensure clean threads, always apply cutting or lubricating oil to the die and spoke before starting. Using oil reduces heat and metal buildup, extends roller life, and produces a smoother thread profile.

• Lubricate with cutting oil before each use
• Inspect die for nicks or wear; replace if damaged
• Match spoke shape and size exactly—do not attempt other gauges
• Avoid using on spokes shorter than 3.5 inches (90 mm)

Can the C-702-14 handle stainless spokes without special tools?

Yes—the die-steel roller and screw-rolling method are designed to bite and form threads in stainless spokes, but correct lubrication and steady pressure are essential. Improper use or mismatched screw sizes can damage both the spoke and the roller.

• Compatible with stainless spokes when oiled properly
• Use steady, controlled rolling motion for best results
• Do not attempt to roll different screw sizes than the spoke size
• Replace worn rollers to keep thread quality consistent

Who is this for: The HOZAN C-702-14 is aimed at bicycle mechanics, wheel builders, and experienced DIYers who regularly work with plain #14 spokes and need a durable, accurate tool for producing BC2.0 (56T) threads. It’s not a universal threader—only use it with compatible spokes, correct lubrication, and proper technique to get reliable, usable threads for tidy nipple installation.
