IZTOR 12V LED Teardrop Navigation Boat Light, Model 1, Stainless Steel Waterproof, 2NM Visibility

IZTOR 12V Teardrop LED Navigation Light is a waterproof stainless-steel side bow signal lamp that delivers USCG-compliant navigation visibility up to 2 nautical miles for small vessels.

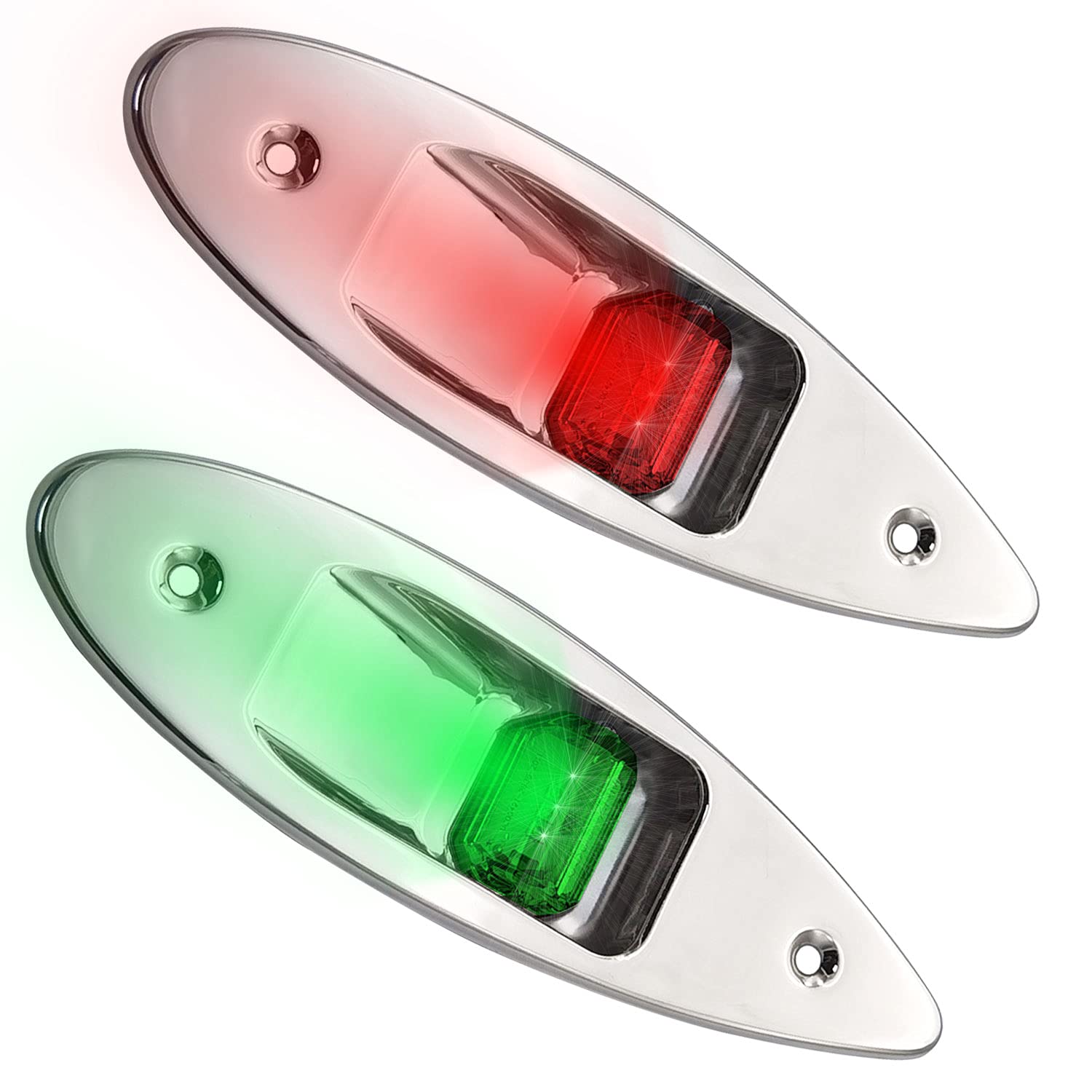

This compact teardrop-style navigation light is built for boats, yachts, and small craft that need a durable, low-energy marker for night and low-visibility conditions. Constructed with a polished SUS304 stainless steel shell, a polycarbonate lens, and a sealed rubber gasket, the unit resists saltwater exposure while providing focused red or green light with a wide beam angle.

How bright is the IZTOR navigation light and what range can I expect?

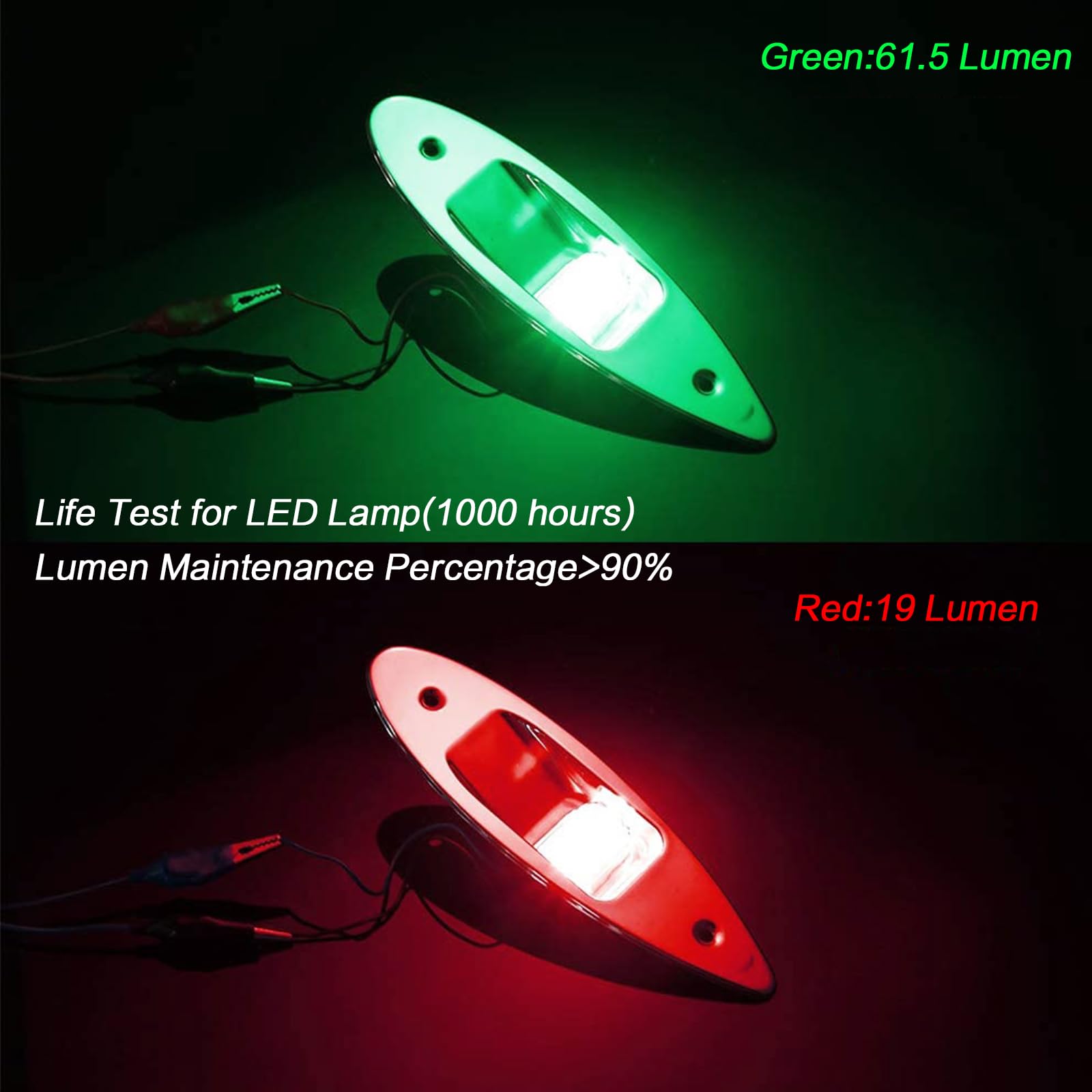

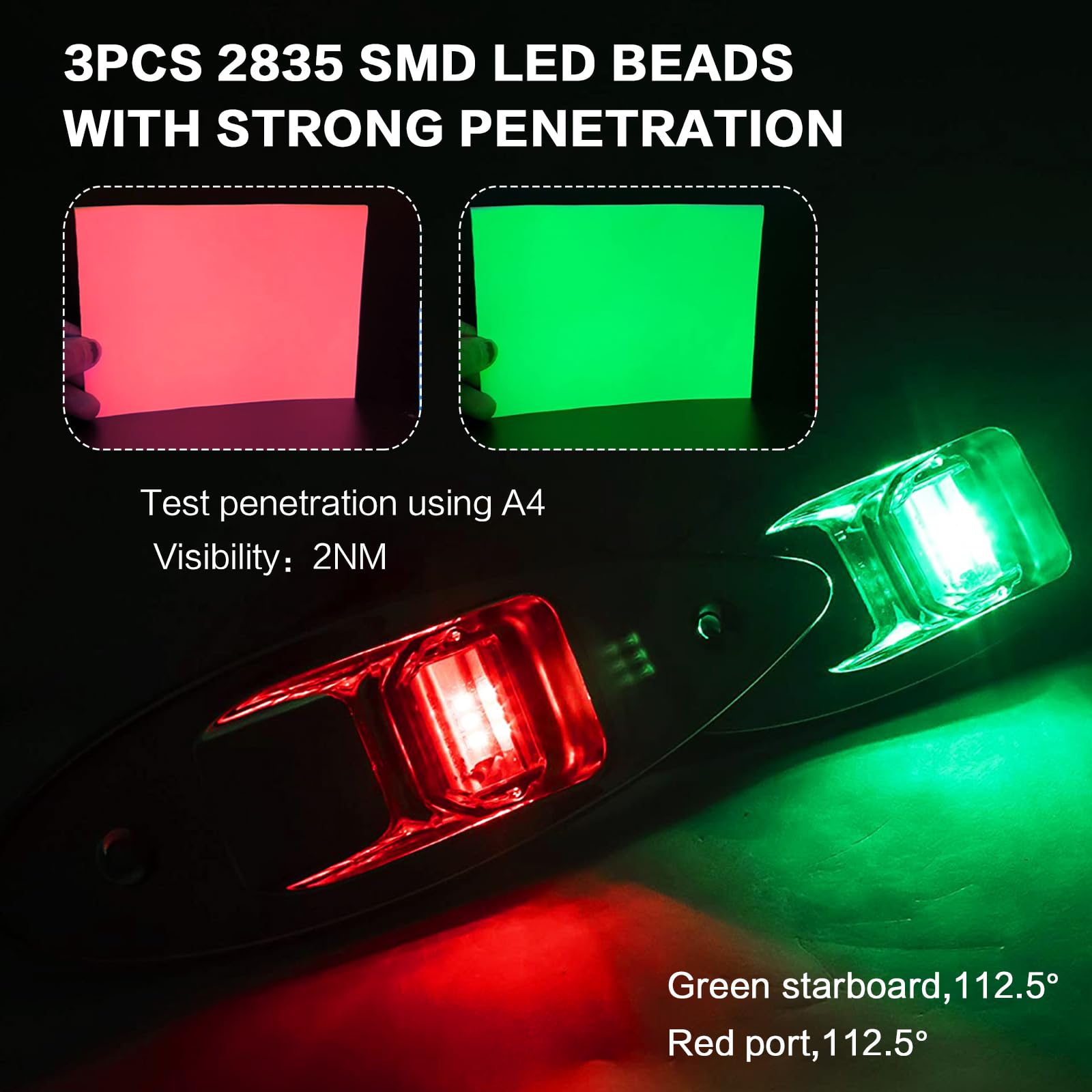

The light uses 3x 2835 SMD LEDs at 12 V and 1 W power consumption, producing a focused beam with tested lumen values and long-term brightness retention. It meets visual range guidance for vessels up to 20 meters, giving about 2 nautical miles of visibility under normal conditions.

• Green output: approximately 61.5 lumens
• Red output: approximately 19 lumens
• Beam angle: roughly 112.5° for LEDs; overall lens beam ~120°
• Lumen retention: >90% after 1,000-hour life test

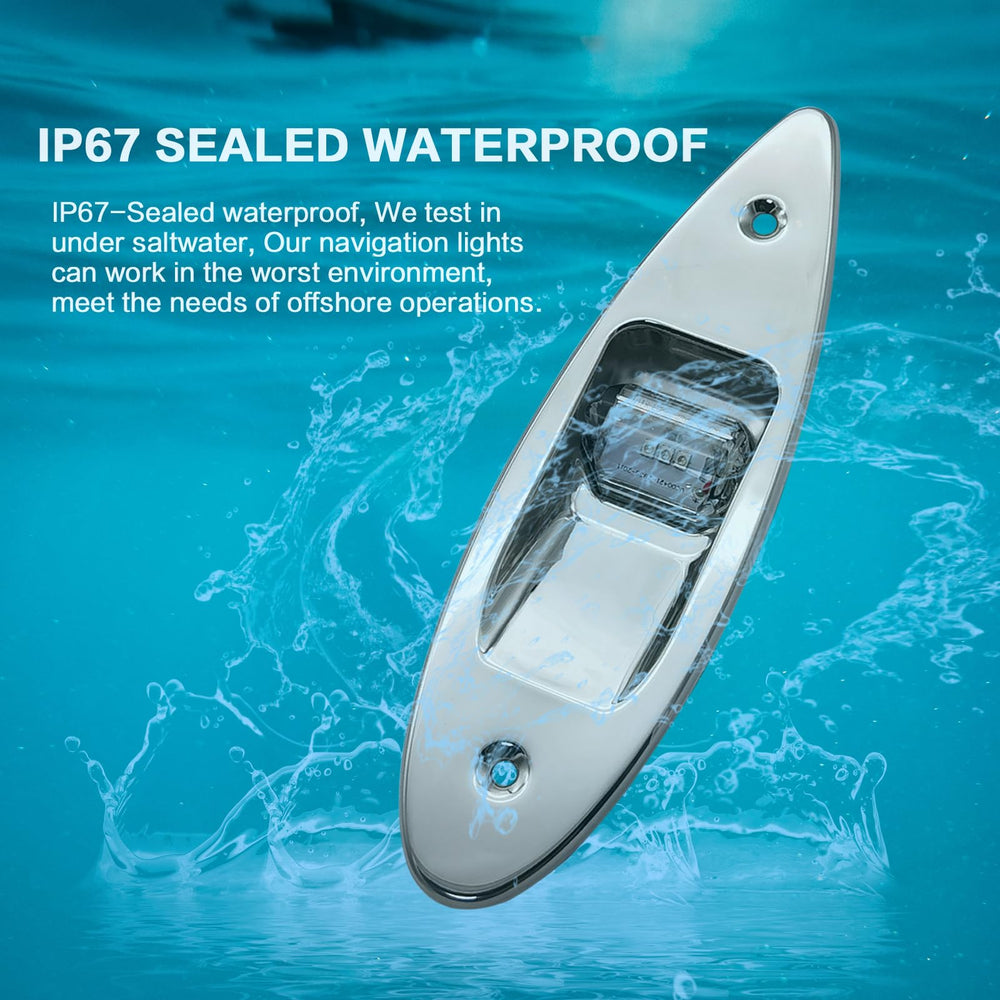

Is this light durable enough for saltwater and outdoor use?

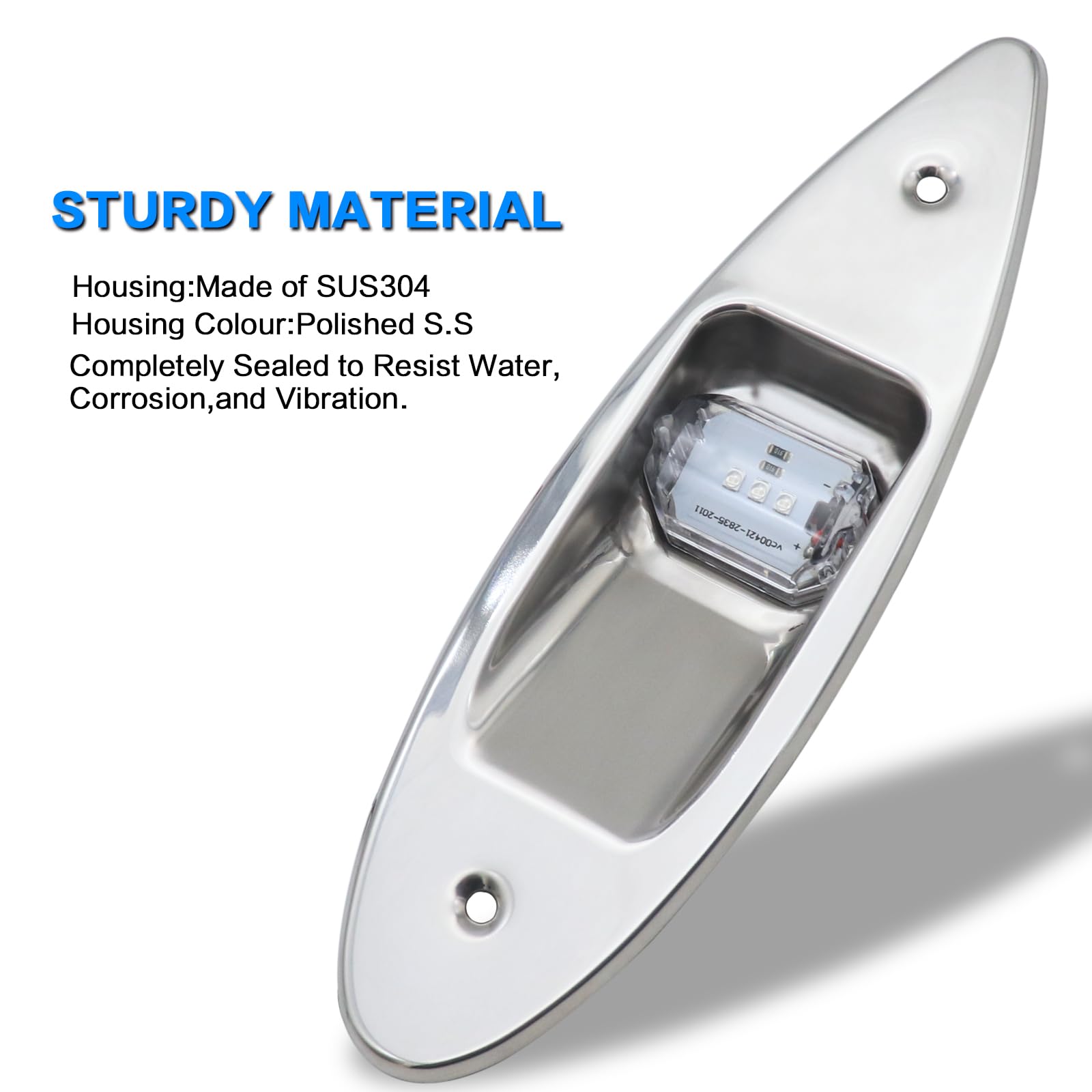

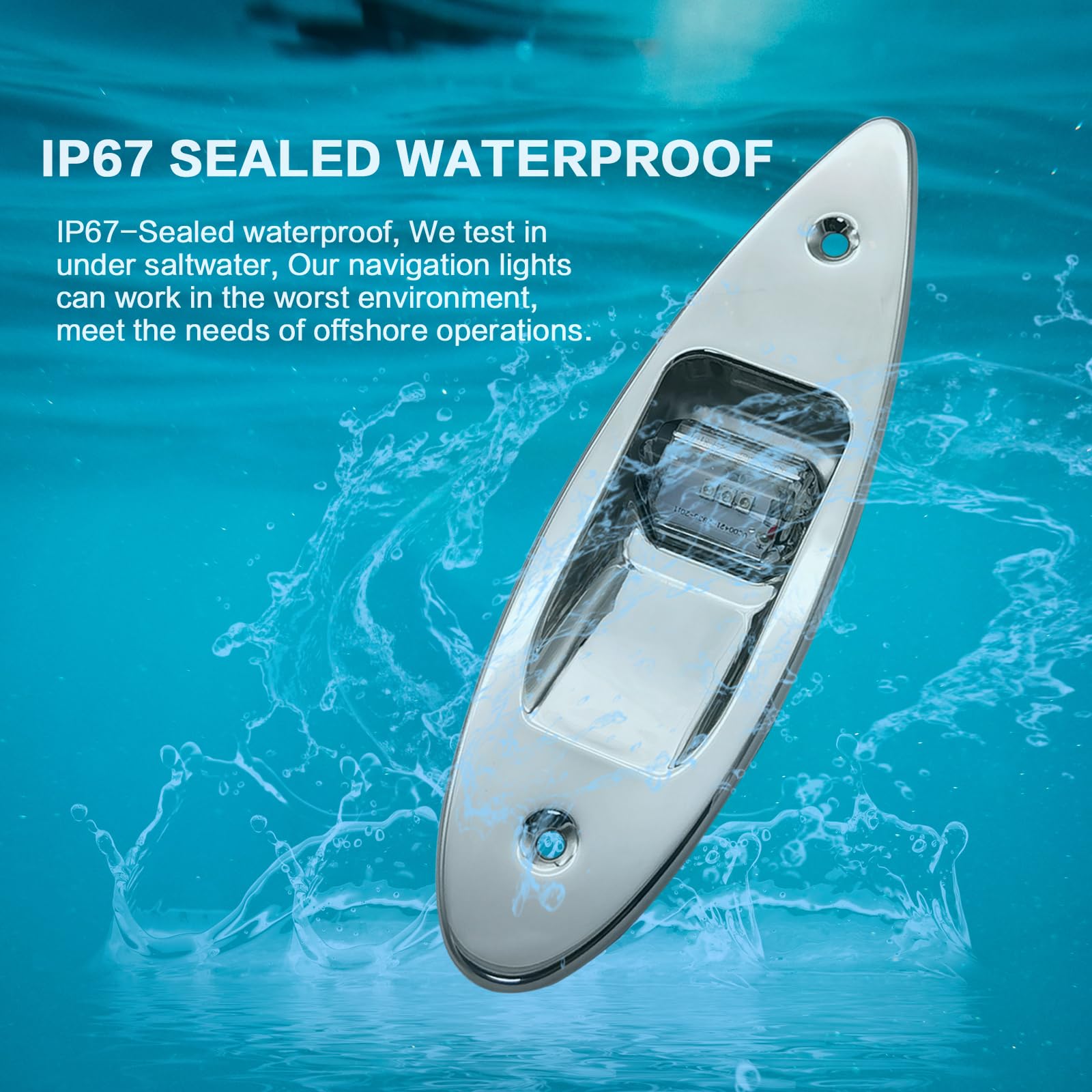

The housing is formed from SUS304 polished stainless steel with a polycarbonate lens and a rubber gasket, which together create a sealed, corrosion-resistant assembly. The sealed LED module carries an IP67 rating and has passed saltwater immersion tests to stand up to marine environments.

• Material: SUS304 polished stainless steel shell
• Sealing: rubber gasket and sealed LED unit
• Ingress protection: IP67 waterproof and dustproof
• Saltwater immersion tested for marine durability

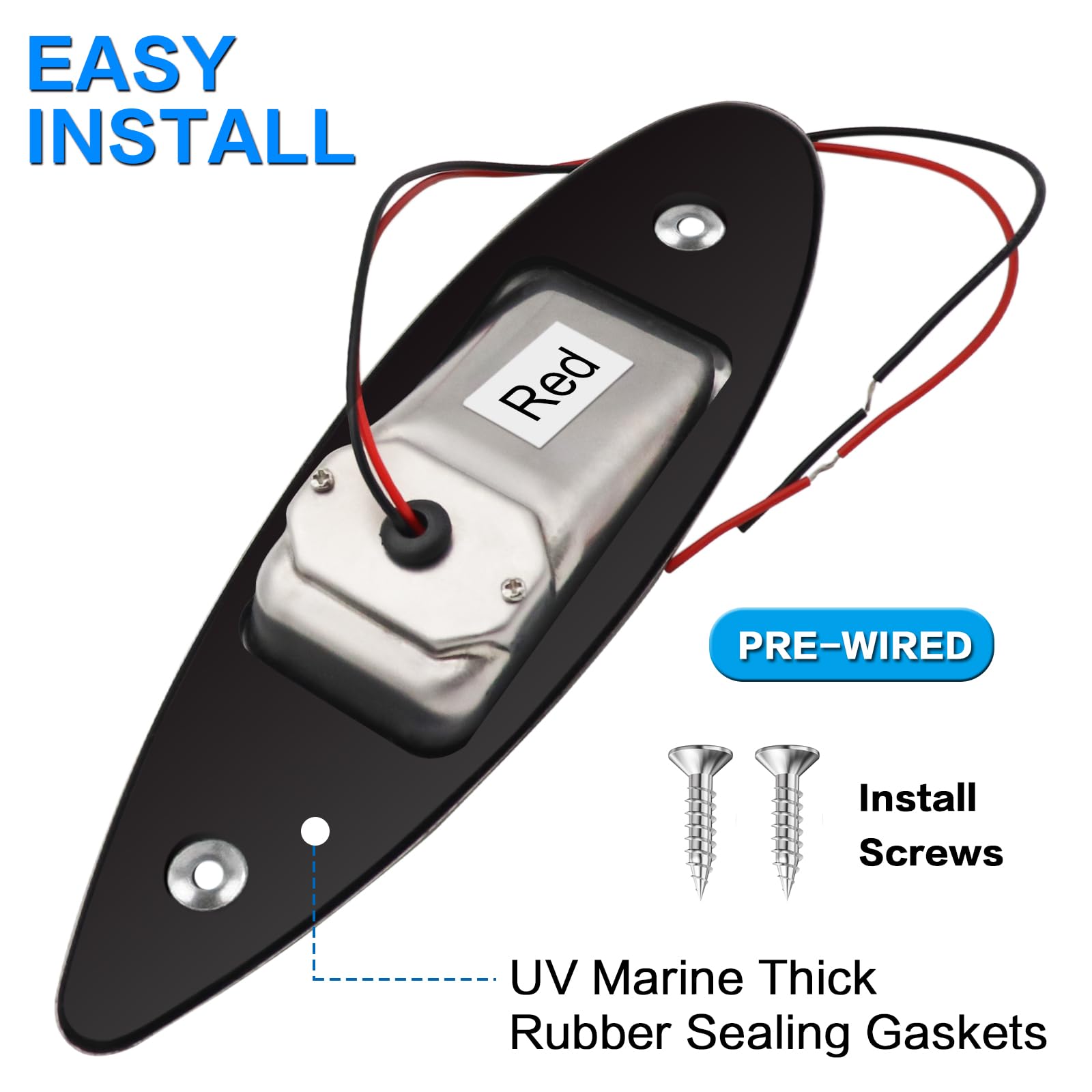

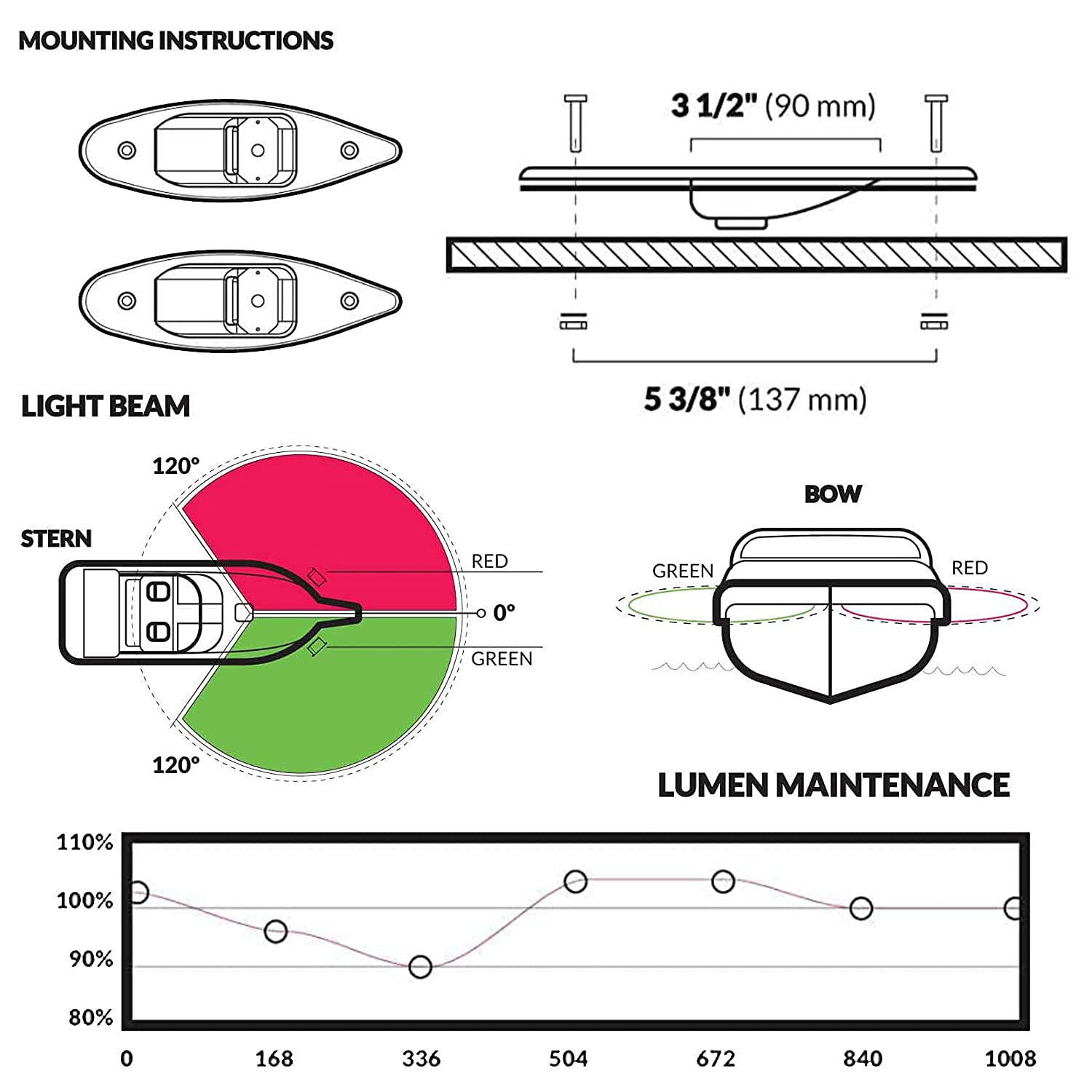

How do I mount and connect the IZTOR teardrop bow light on my boat?

The light is designed for a vertical mount on the bow or side of small craft and comes with a pre-drilled base and rubber seal for a straightforward install. It runs on 12 V DC and is suitable for a range of vessels commonly used in coastal and inland waters.

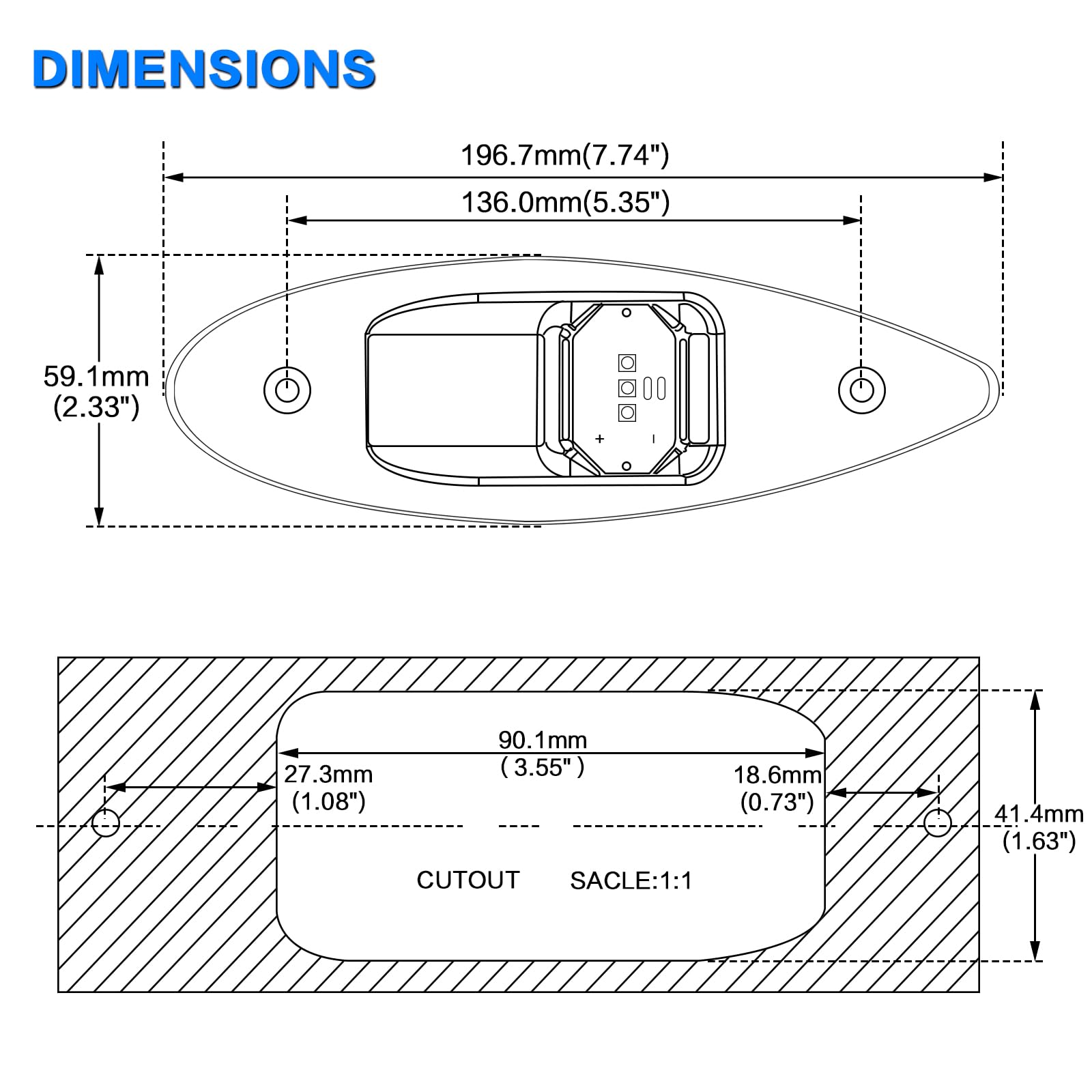

• Mount style: vertical side/bow mount
• Installation: pre-drilled holes and rubber seal included
• Power: 12 V DC, 1 W consumption

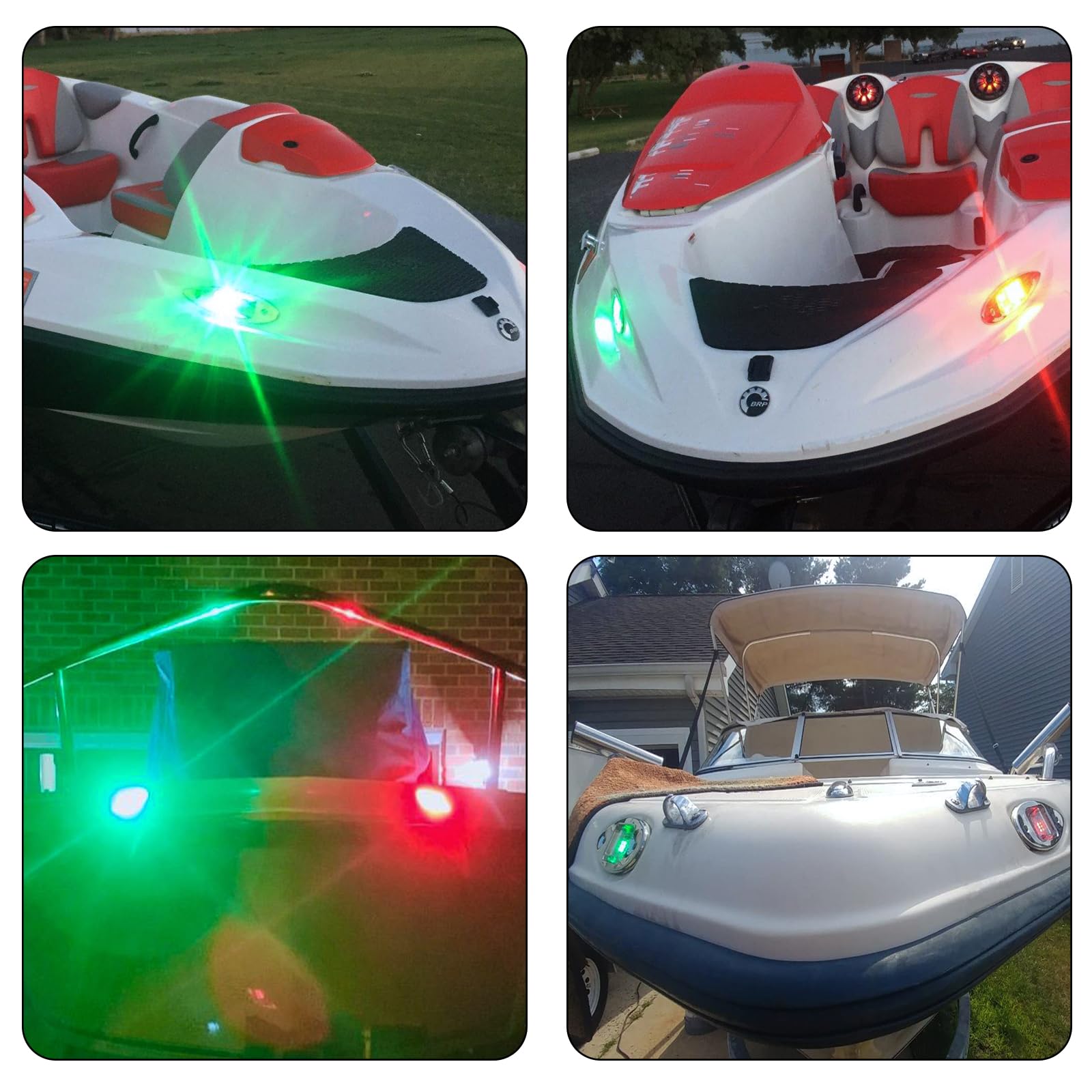

• Fits: pontoon boats, skiffs, speedboats, small yachts, fishing vessels

Will this meet regulatory requirements for my vessel?

The IZTOR teardrop navigation light is built to align with the USCG guidance for vessels up to 20 meters (approximately 65 feet) when used as the required sidelights. Always verify local regulations and vessel-specific requirements before relying on a single light for compliance.

• Designed to comply with USCG rules for boats up to 20 meters
• Intended as a sidelights set (red and green) for night navigation
• Check local and class regulations for installation and distances

Who is this for? The IZTOR 12V Teardrop LED Navigation Light is aimed at recreational boaters, small commercial operators, and DIY marine technicians who need a compact, energy-efficient, and seaworthy sidelamp. It’s a practical choice for owners of skiffs, small fishing boats, pontoon craft, and yachts seeking a corrosion-resistant, easy-to-install navigation solution that balances low power draw with dependable visibility.
