IZTOSS 4 Gang Type 2 Marine Rocker Switch Panel, Blue — 12-24V Pre-Wired, IP65 Aluminum

Designed for use where space is limited and reliability matters, this panel combines a slim anodized aluminum fascia with stainless steel push-buttons and integrated blue LEDs to make equipment control simple and visible at night. The module accepts 12–24 V systems, includes two 25A fuse holders to safeguard circuits, and mounts neatly into a 124 × 40 × 2 mm opening for a professional finish on dashboards, consoles, or galley areas.

How will this panel make operating my boat or RV easier?

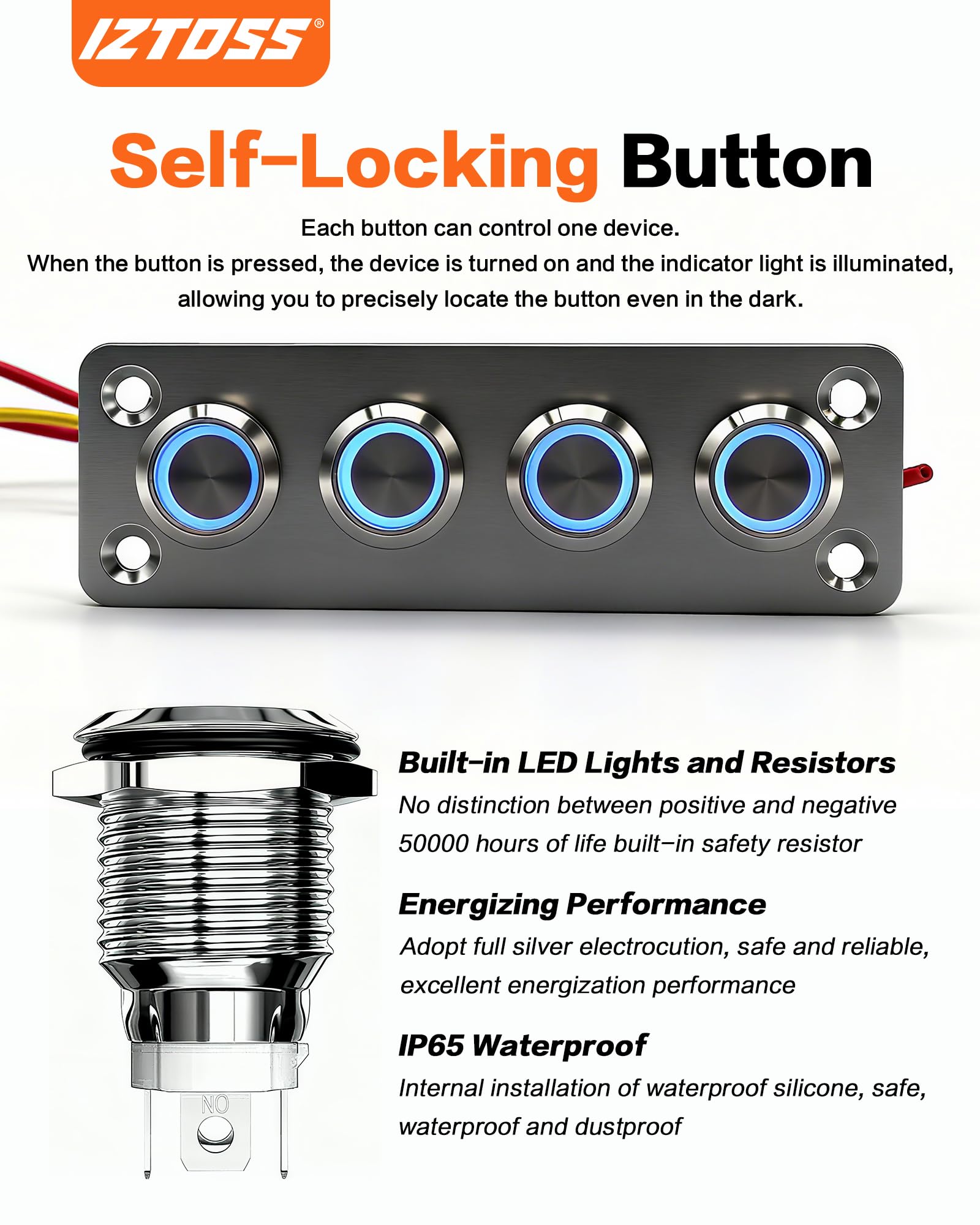

The IZTOSS switch panel centralizes four separate circuits behind a single tidy plate, so common loads like lights, pumps, and accessories are reachable without multiple loose switches. Each rocker is self-locking, so a quick press toggles the circuit reliably, and the blue LED shows active status even in low light.

• Four labeled push-rocker switches for individual devices
• Blue illumination for nighttime visibility
• Self-locking operation for one-touch on/off control
• Pre-wired harness to simplify installation

Is this panel durable enough for marine or outdoor use?

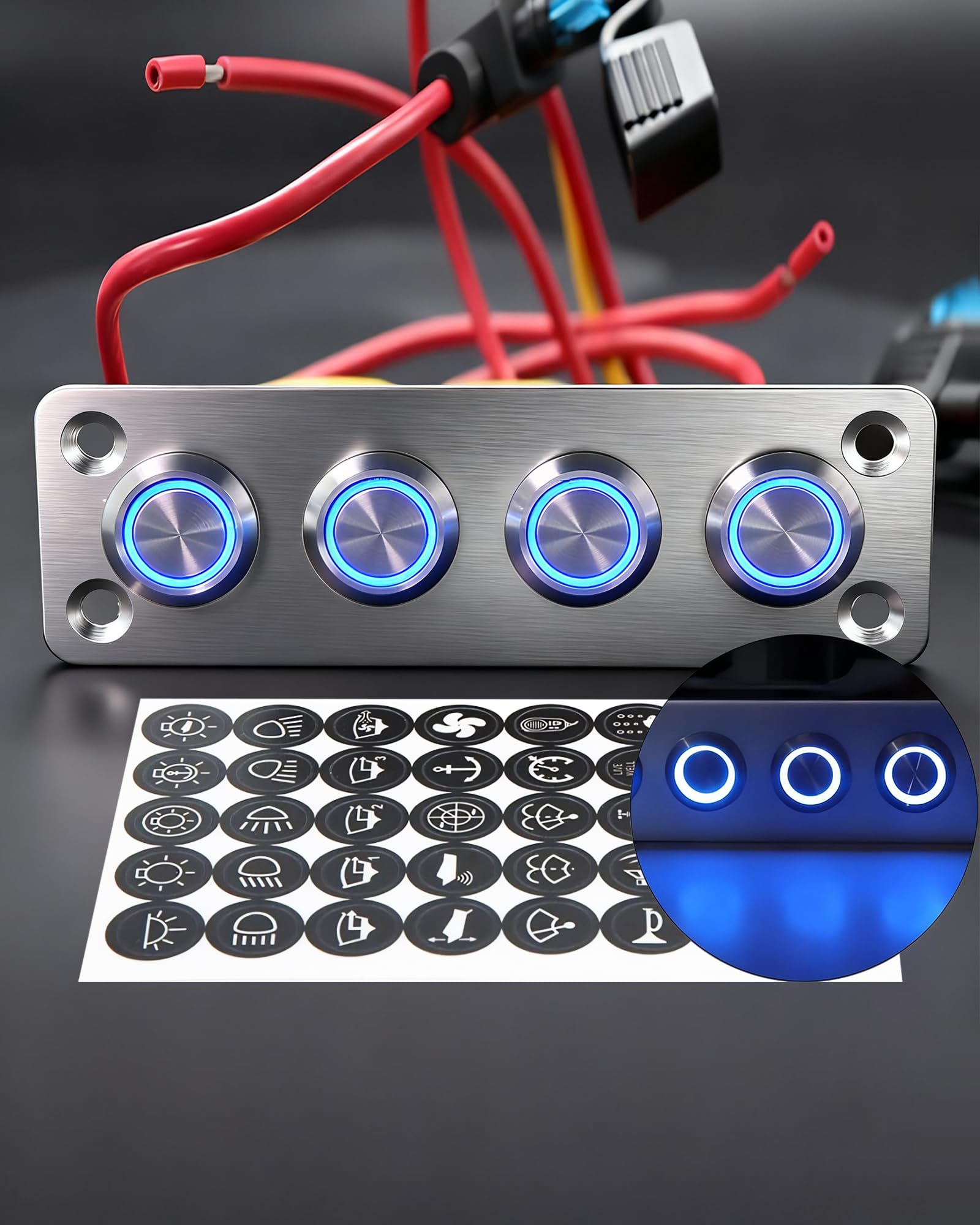

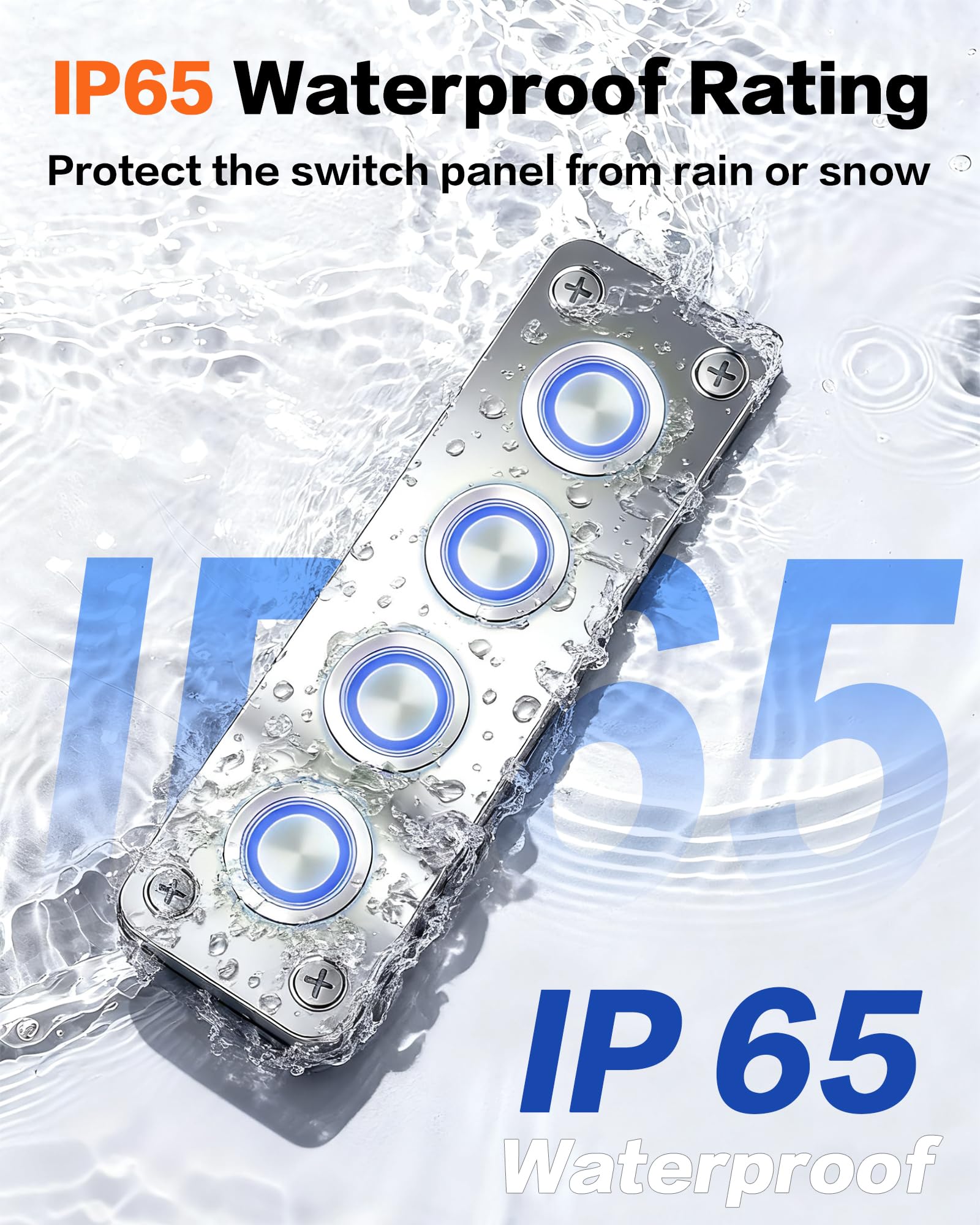

The front plate is laser-cut from anodized aluminum and the button housings use stainless components to resist corrosion in harsh environments. The assembly carries an IP65 rating, protecting against dust and water spray—suitable for deck mounting, but not for full immersion.

• Anodized aluminum face resists scratching and oxidation
• Stainless push components reduce rust risk
• IP65 rating blocks spray and dust ingress
• Compact 124×40×2 mm size fits tight panels

How does the panel protect my electrical system?

Two integrated fuse holders accept 25A fuses and are wired so each holder can protect two circuits, making it easy to add overcurrent protection without separate inline fuses. This arrangement reduces wiring complexity while giving clear protection for accessories and manufacturer-installed devices.

• Two fuse holders, each accepting 25A fuses
• One holder protects up to two circuits for simplified wiring
• Pre-wired leads speed up connection to batteries and loads
• Designed for 12–24 V electrical systems

What should I know about installation and use?

The unit arrives pre-wired to minimize hook-up time; you still need to mount the panel and connect power, ground, and individual outputs. Cutout and overall dimensions are compact, and the tactile self-locking switches require no special tools to operate, making it a straightforward upgrade for DIYers and professionals alike.

• Pre-wired harness reduces installation time and mistakes
• Mount in a 124×40 mm panel opening for flush fit
• Works across 12–24 V platforms—boats, motorhomes, ATVs
• Not rated for underwater or continuous submersion use

Who is this for: The IZTOSS 4-gang rocker switch panel is aimed at boat owners, RV enthusiasts, and mobile-vehicle technicians who want a durable, compact, and illuminated multi-switch solution. It fits projects where corrosion resistance and splash protection matter, and where convenient onboard circuit protection and easy nighttime visibility are priorities.
