KiberAxle Thru Axle Quick Release for RockShox 15mm X 110mm, CNC Aluminum, Adjustable Swivel Handle

KiberAxle Quick Release Thru Axle is a lightweight, CNC-machined 15mm x 110mm aluminum axle with an adjustable swivel handle built to fit RockShox-style 15mm forks and hub mounts.

This thru axle replaces standard 15mm fork and rear hub adapters to provide a stiffer, more reliable wheel attachment while keeping weight minimal. Machined from high-strength aluminum alloy, the axle combines corrosion resistance and precise tolerances so wheels seat consistently. The adjustable revolve handle lets you tailor the lever angle for clearance and easy operation without tools.

Will this axle fit my RockShox 15mm x 110mm fork?

Yes—this axle is sized for 15mm diameter forks with 110mm hub spacing commonly found on modern Boost-style RockShox applications. Confirm your fork dropouts and hub spacing match 15 x 110mm before purchasing. Thread length and pitch are tuned for compatible M15 nuts and standard TP 1.5mm medium threads to ensure reliable engagement.

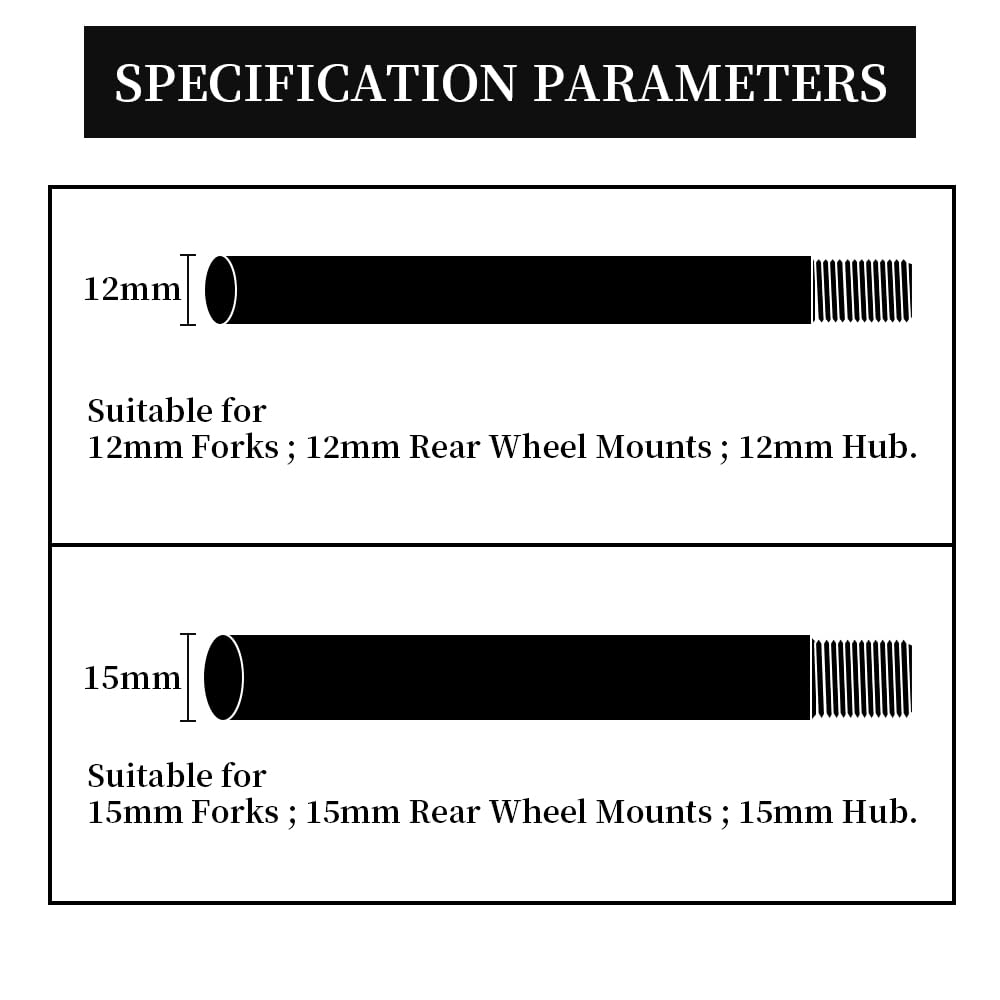

• Diameter: 15mm shaft suited to 15mm fork dropouts
• Hub spacing: 110mm (Boost-compatible)

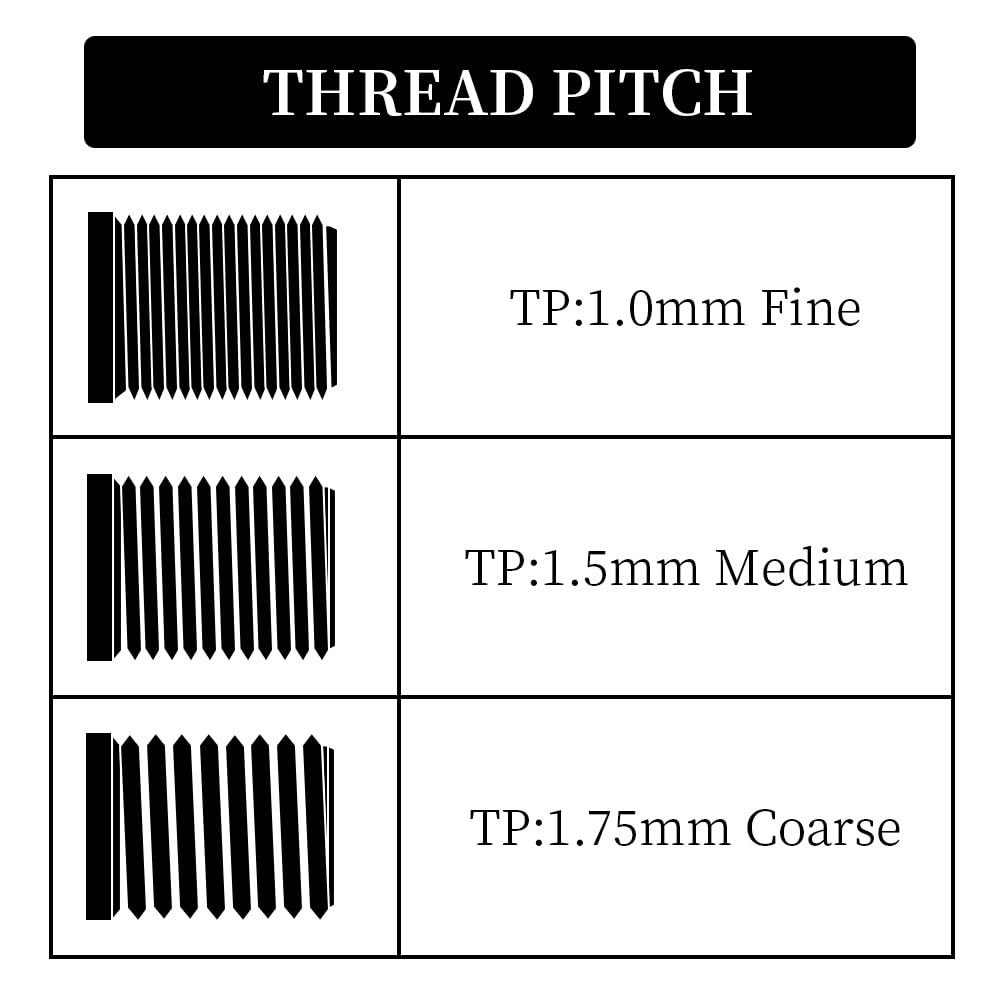

• Thread pitch: 1.5mm medium, thread length 9mm
• Compatible nut type: M15 & TP 1.5mm medium

How durable and lightweight is the KiberAxle compared with stock axles?

The axle is CNC-machined from an aluminum alloy selected for high strength-to-weight performance so you lose minimal mass without sacrificing stiffness. Precision machining reduces tolerances that can cause play, while the alloy resists corrosion for long-term durability under wet and muddy conditions. At roughly 0.13 lbs, it helps shave grams from the front assembly.

• Material: high-strength aluminum alloy for stiffness and low weight
• Manufacturing: CNC precision for tight tolerances
• Weight: approximately 0.13 lb for lightweighting
• Finish: corrosion-resistant surface from machined alloy

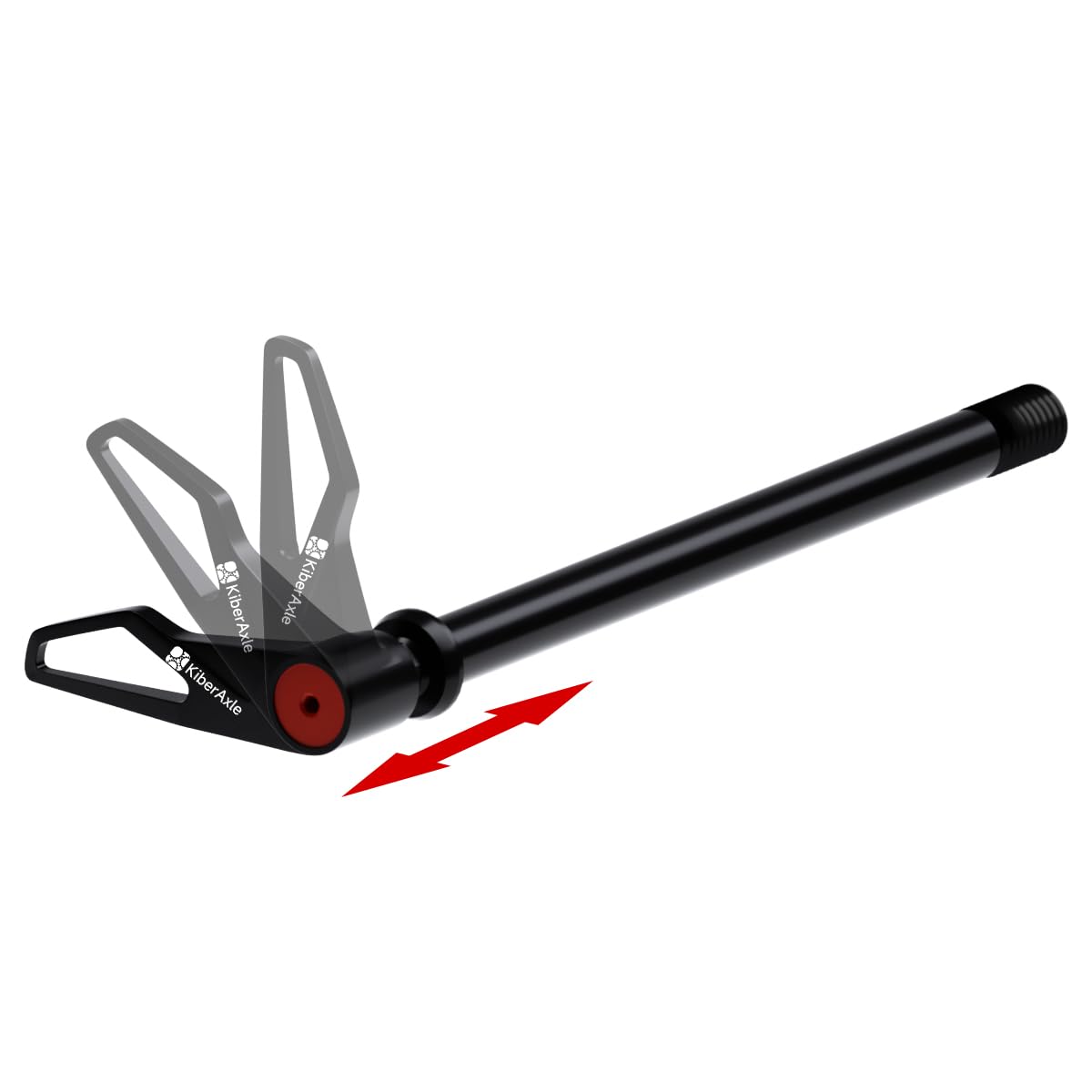

What benefits does the adjustable revolve handle provide?

The swivel adjustable handle lets you set the lever angle to avoid interference with brakes, fork legs, or frame components and to provide better ergonomics when tightening or releasing the axle. The handle is made from the same alloy and is engineered to lock securely in position to prevent accidental movement during rides. This makes wheel removal and installation faster, especially on trail or race days.

• Adjustable angle to clear brake calipers and frame parts
• Secure locking to prevent lever rotation in use
• Tool-free adjustment for quick on-trail changes
• Ergonomic shape for confident hand operation

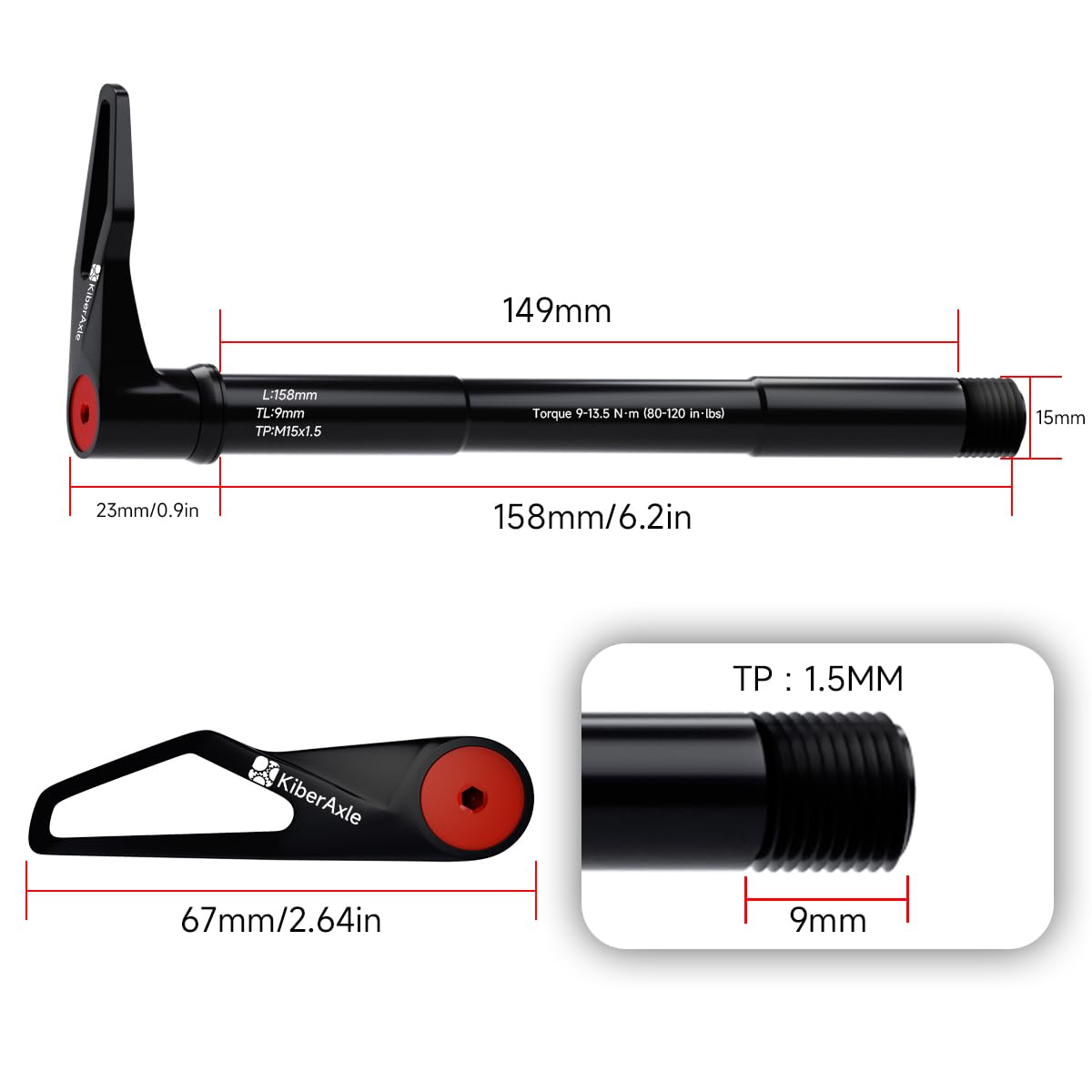

What exact measurements and threading should I check before ordering?

Verify your fork and hub specifications: axle diameter 15mm, axle length 158mm for the assembled axle to clear a 15 x 110mm spacing, and compatible nuts using M15 size with 1.5mm thread pitch. The axle’s thread length is 9mm, so ensure that provides full engagement with your hub or nut. If your bike uses a different pitch, diameter, or spacing, select the matching part to guarantee safe fitment.

• Axle length: 158mm overall for 15 x 110mm applications
• Thread pitch: 1.5mm medium, thread length: 9mm
• Applicable nut: M15 & TP 1.5mm medium
• Shaft diameter: 15mm for fork dropouts

Who this axle is for: Cyclists upgrading or replacing a 15mm x 110mm thru axle on RockShox-equipped forks who want a lighter, CNC-machined aluminum option with a convenient adjustable lever. It’s suited for trail riders, racers and commuters who need a reliable, tool-free wheel retention system that reduces weight and improves handling precision. Double-check your fork and hub specs before ordering for an accurate match.
