M Marine Tech Tools 32mm Yamaha outboard trim spanner wrench — 4mm L-4 pins, 1/2" drive, stainless steel

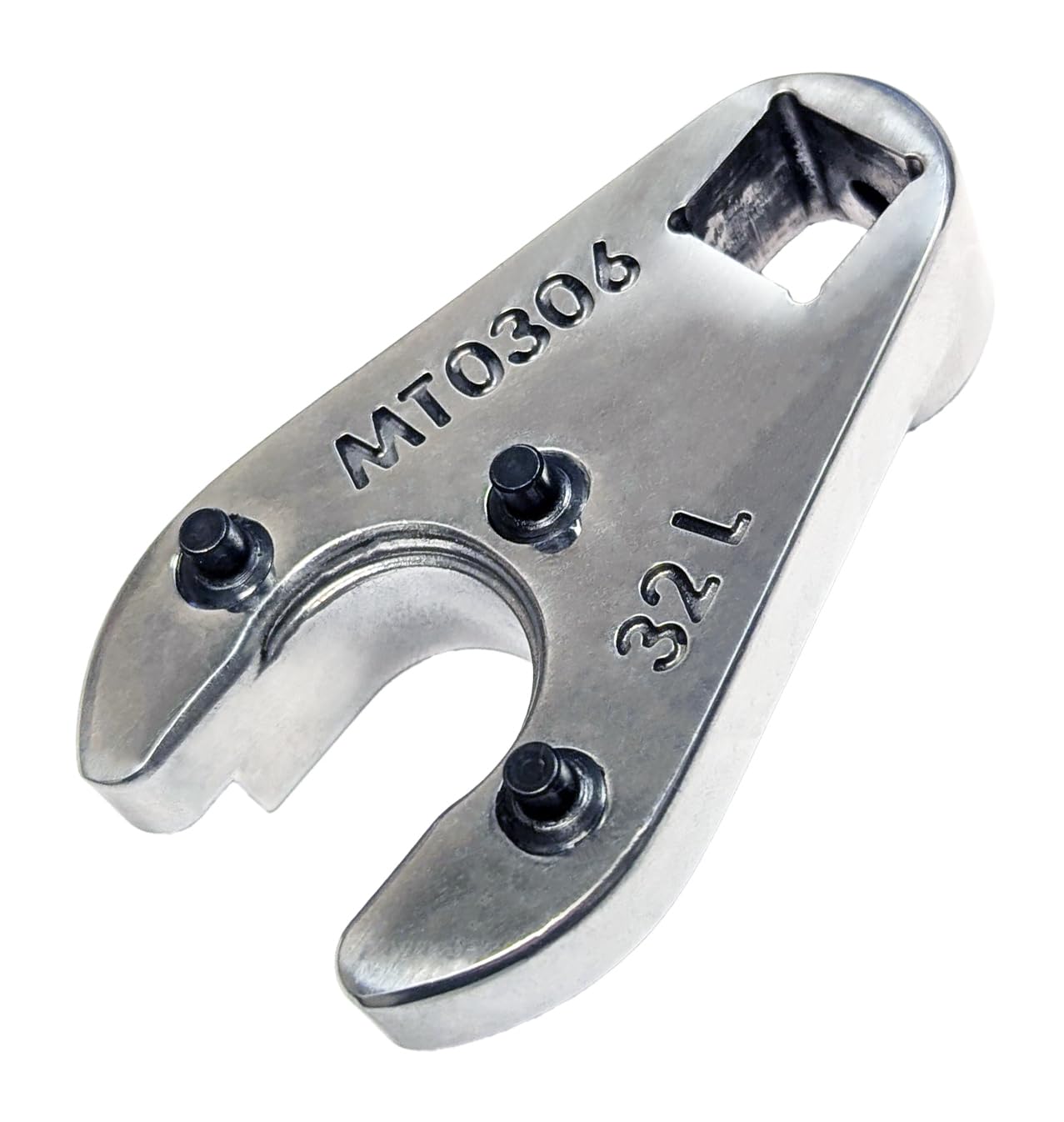

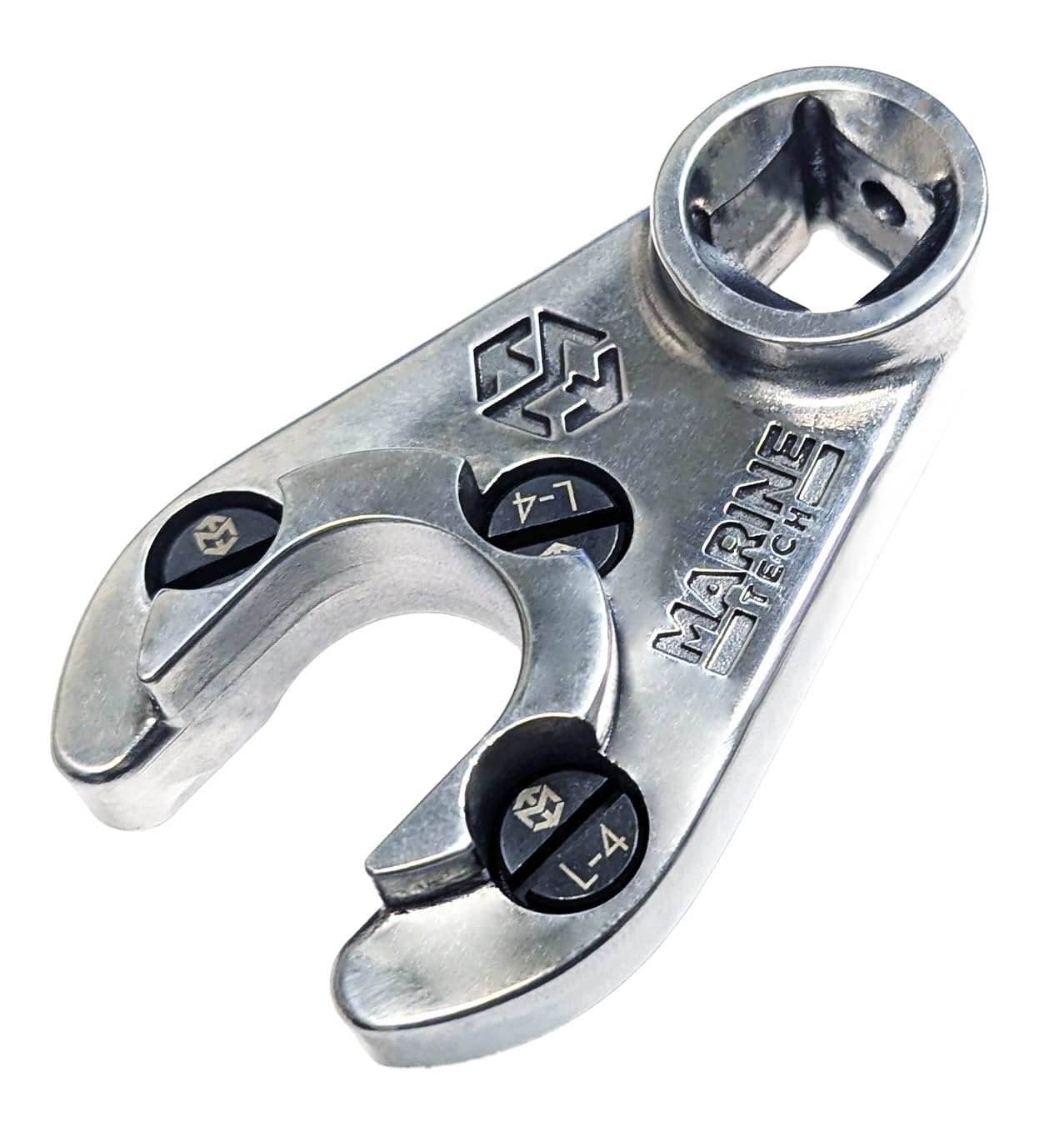

The AMT0306 is a 32mm Yamaha-style outboard trim spanner wrench with 4mm L-4 pins and a 1/2" drive, built from marine-grade stainless steel and rated for heavy torque.

This precision spanner wrench from M Marine Tech Tools is designed to remove and install trim cap nuts on Yamaha four-stroke outboards and compatible models from Honda, Suzuki, Johnson, and Evinrude. Engineered to accept a 1/2" socket drive, it pairs with breaker bars, torque wrenches and impact tools for fast, reliable service. The kit includes six spare L-4 pins and is manufactured from corrosion-resistant stainless steel with a proprietary heat treatment for higher yield strength.

Will this wrench fit my Yamaha or similar outboard trim caps?

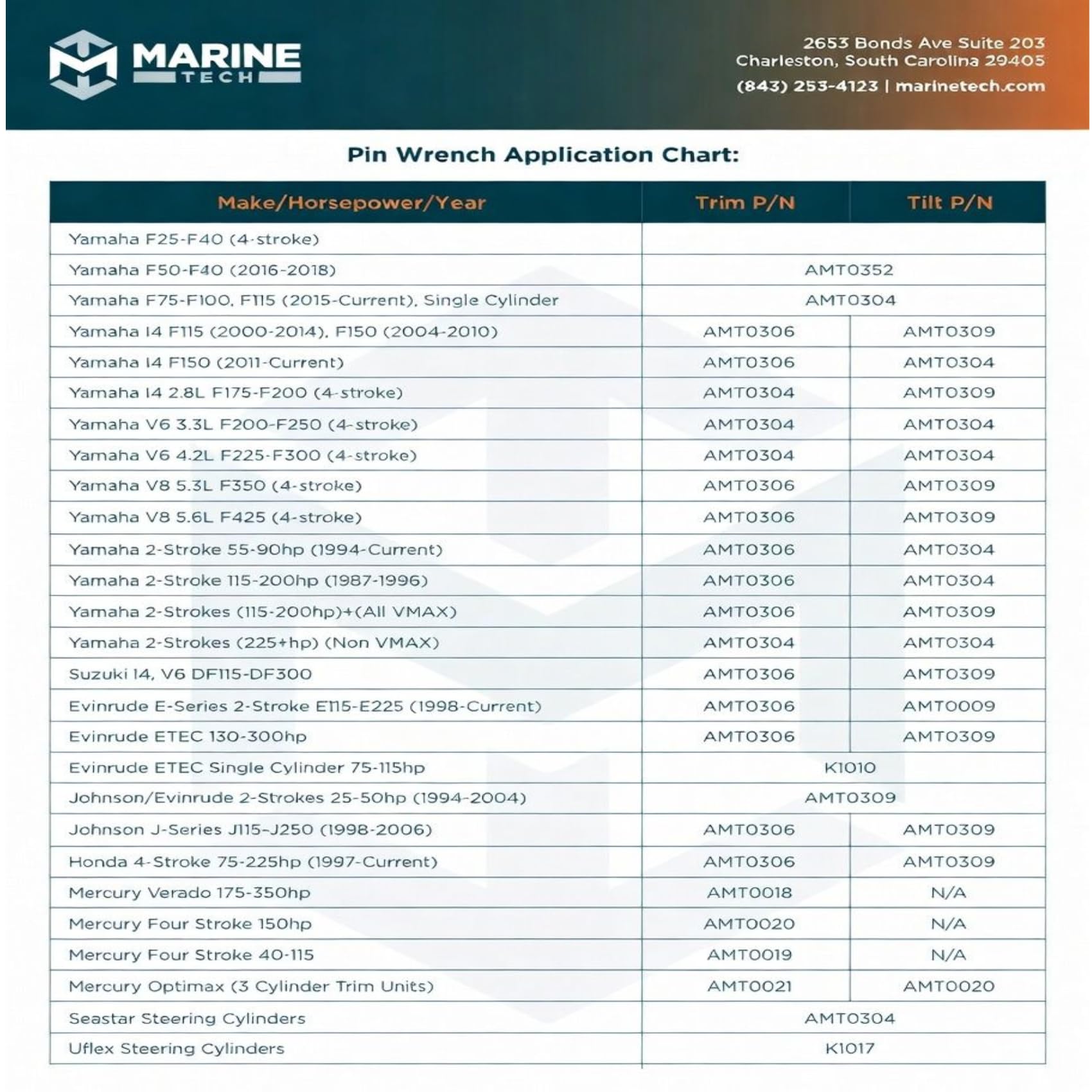

Yes — the AMT0306 matches the Yamaha 32mm trim cap profile and uses 4mm L-4 pins that engage standard trim cap holes. It’s listed as a direct replacement for Yamaha part numbers YB-06175-1A, YB-06175-2B, and YB-06548, and is compatible with many Honda, Suzuki, Johnson, and Evinrude trim caps that follow the same pin pattern.

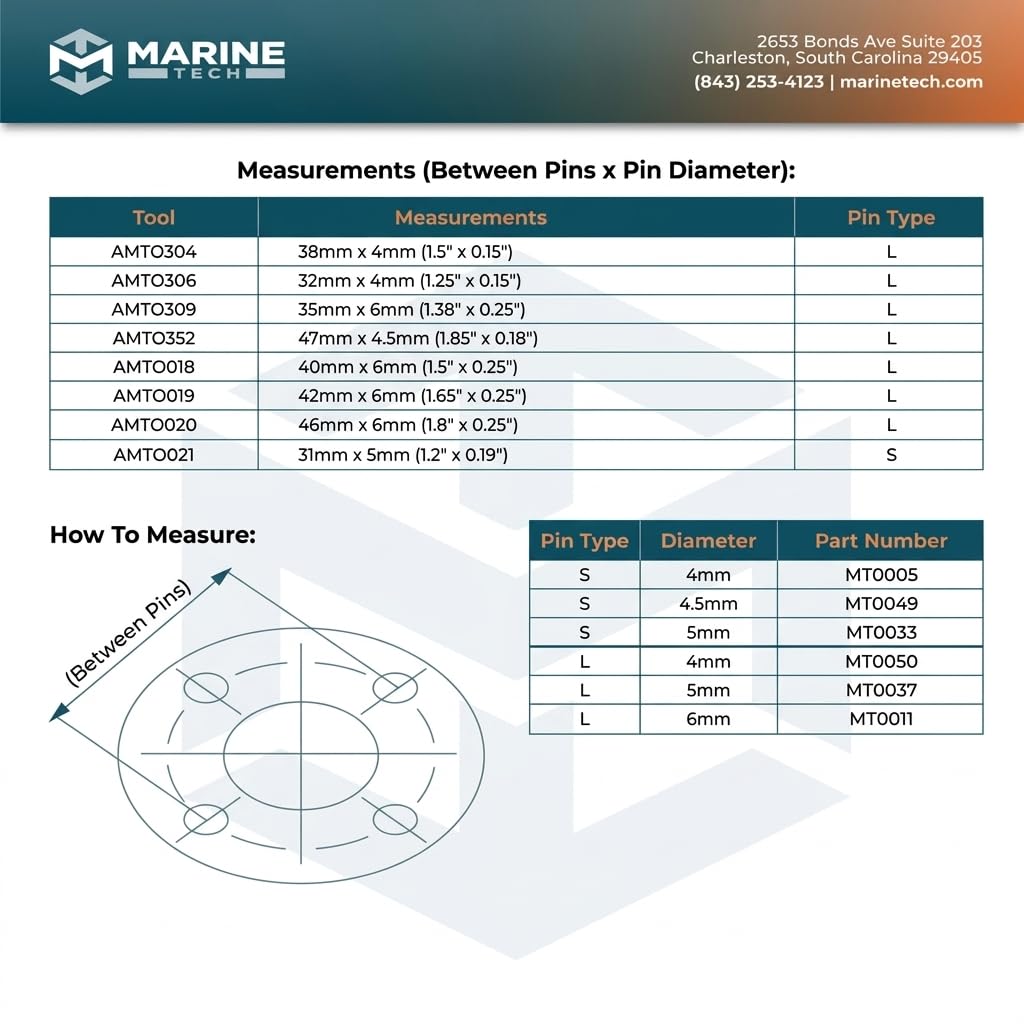

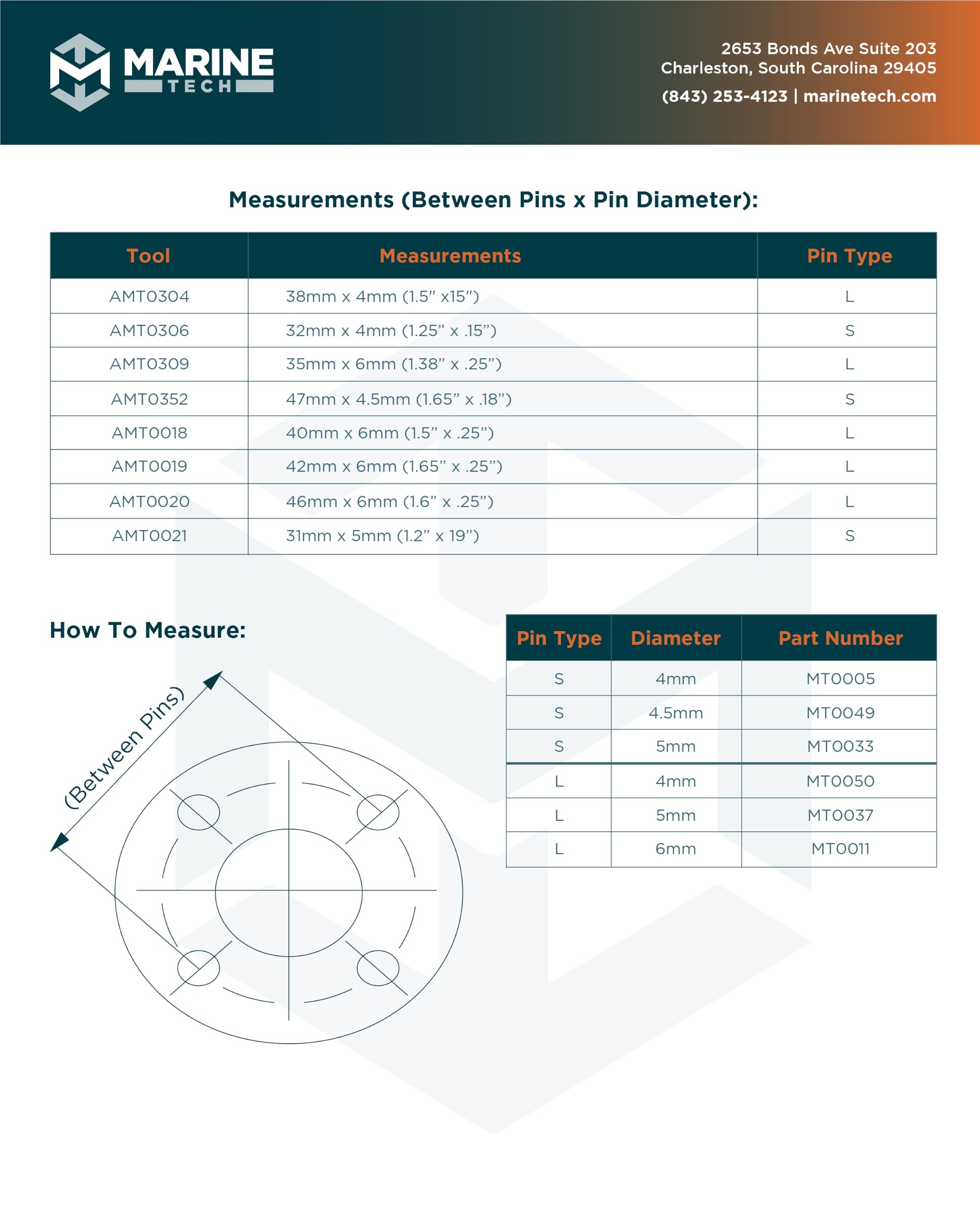

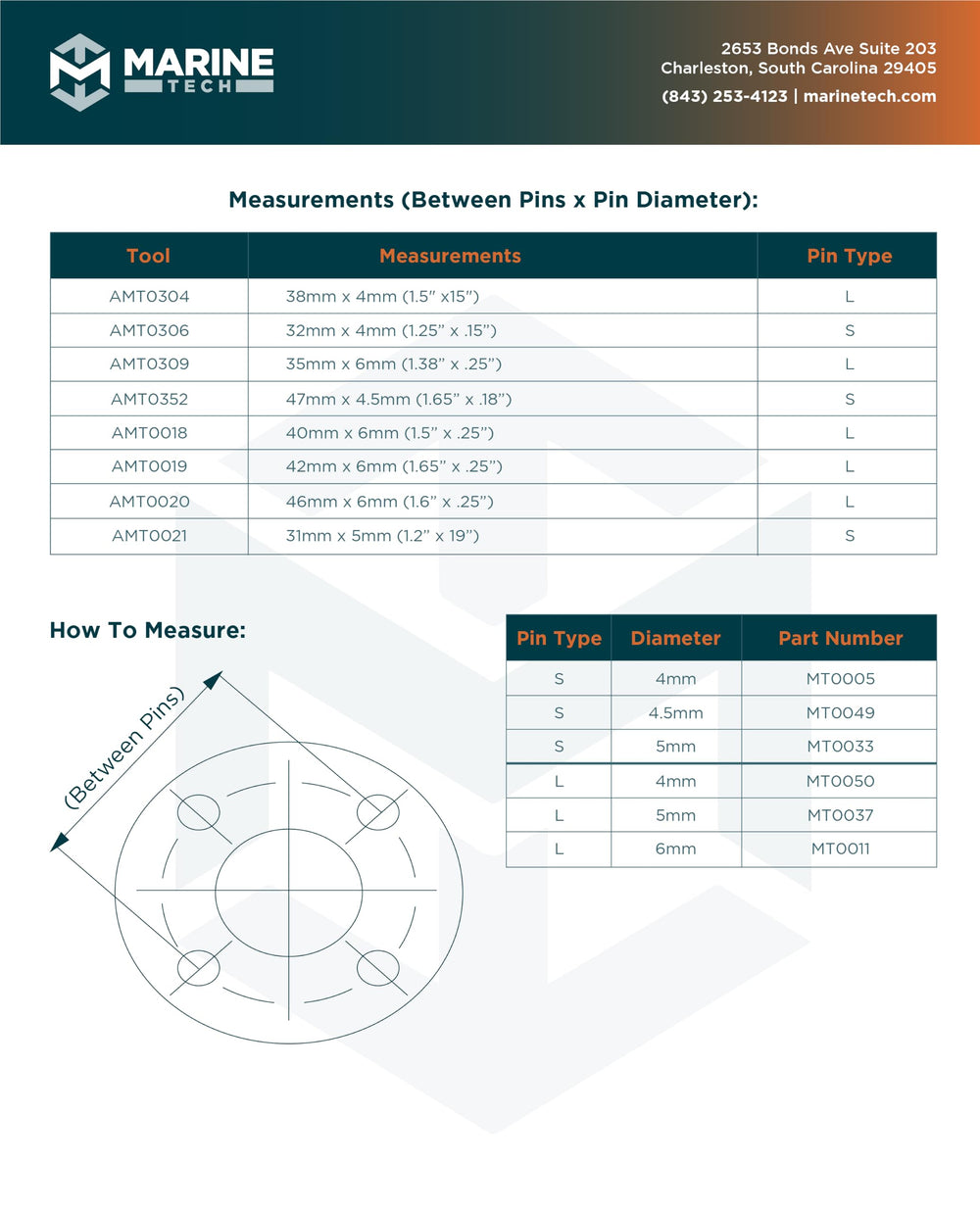

• Fits 32mm trim cap nut with 4mm L-4 pin holes.
• Replaces Yamaha YB-06175-1A, YB-06175-2B, YB-06548.
• Works on many Honda, Suzuki, Johnson, and Evinrude models using the same pin spacing.
• Includes six spare L-4 replacement pins (AMT0050 compatible).

How does the lock-in sleeve-and-receiver system prevent the wrench from slipping?

The wrench is designed to accept the AMT0170 sleeve (sold separately) which seats into the trim housing and creates a stable receiver for the spanner. With the sleeve in place, the outboard’s weight helps seat the tool so you can apply full breaker-bar torque without the pins popping free under load.

• Compatible with AMT0170 sleeve for positive engagement.
• Sleeve uses outboard weight to lock the wrench in place.
• Enables use of breaker bars and torque wrenches safely.
• Reduces pin wear and prevents 'kick-out' failures.

What torque can the AMT0306 handle and how durable is it?

AMT0306 pins are engineered and heat-treated to a minimum yield of 200 ft-lb, allowing heavy-duty removal and installation without deformation. The wrench body is polished marine-grade stainless steel to resist saltwater corrosion and maintain strength through repeated professional use.

• Pins rated to a minimum 200 ft-lb yield strength.
• Polished marine-grade stainless construction for corrosion resistance.
• Proprietary heat treatment to extend service life of pins.
• Replacement L-4 pins available as AMT0050 for ongoing maintenance.

What accessories or add-ons do I need to use this tool properly?

To get the most secure engagement under heavy torque, add the AMT0170 sleeve which provides the receiver that locks the spanner in place. For routine maintenance plan to keep spare L-4 pins (AMT0050) on hand; the 1/2" drive means you can use common breaker bars, torque wrenches, and impact drivers you already own.

• AMT0170 sleeve recommended for locked-in operation (sold separately).
• AMT0050 replacement L-4 pins for pin refresh.
• 1/2" breaker bar or torque wrench for leverage and torque control.
• Impact driver compatible with 1/2" drive if preferred for stubborn nuts.

Who is this for? The AMT0306 is built for boat owners, professional mechanics, and marine technicians who service Yamaha-style outboards and need a robust, corrosion-resistant spanner that pairs with standard 1/2" drive tools. It’s ideal for anyone who wants a durable aftermarket replacement for OEM part numbers, a tool that withstands higher torque without pin failure, and a product backed by a lifetime warranty from a small family-owned marine tools company.
