Pactrade Marine Waterproof LED Masthead & Deck Combo Light — Vertical Mount 12V for Boats up to 12m

Pactrade Marine’s waterproof vertical-mount combo provides masthead and foredeck illumination for sailboats and powerboats up to 12 m (39'), combining low-voltage LEDs in a single, corrosion-resistant assembly.

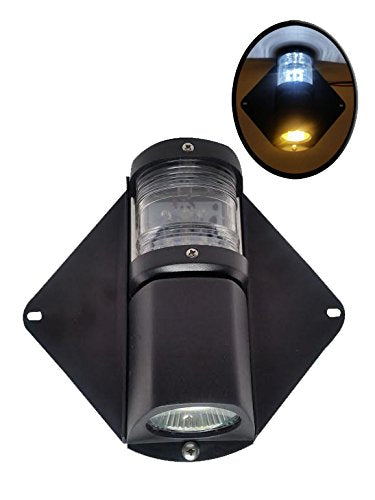

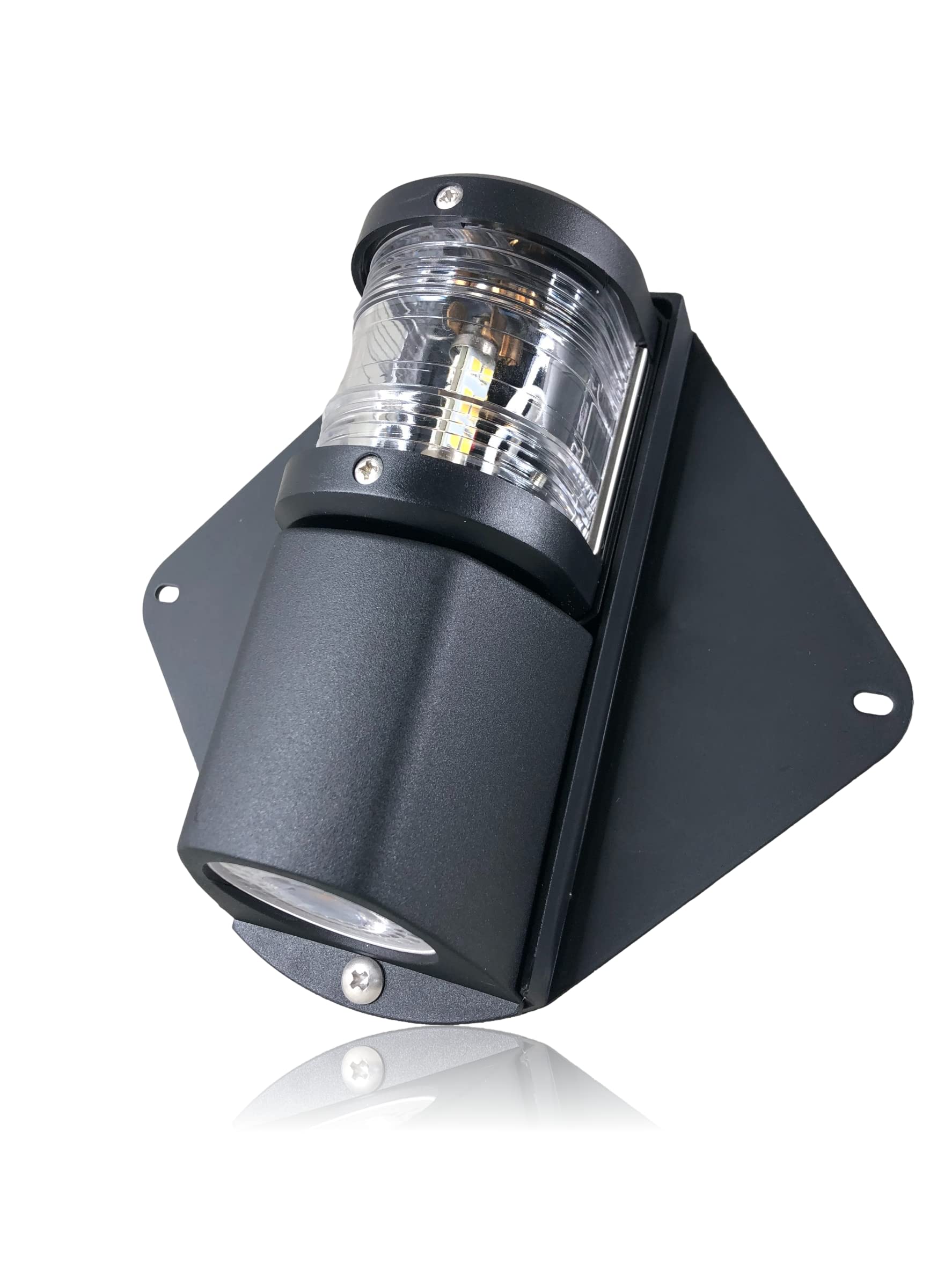

This compact, dual-purpose unit pairs a focused masthead beacon with a brighter deck/splash light in one vertical housing. Built from molded plastic for marine environments, it runs on 12 VDC and ships with a wiring diagram for straightforward installation. The design fits foredeck spread or masthead locations, delivering both navigation visibility and deck-area illumination without complex installation or heavy power draw.

How bright are the masthead and deck lights?

The masthead and deck sections are tuned for different roles: the masthead provides directional navigation visibility while the deck light offers concentrated area illumination. Together they balance low energy use with effective output for small to mid-sized boats.

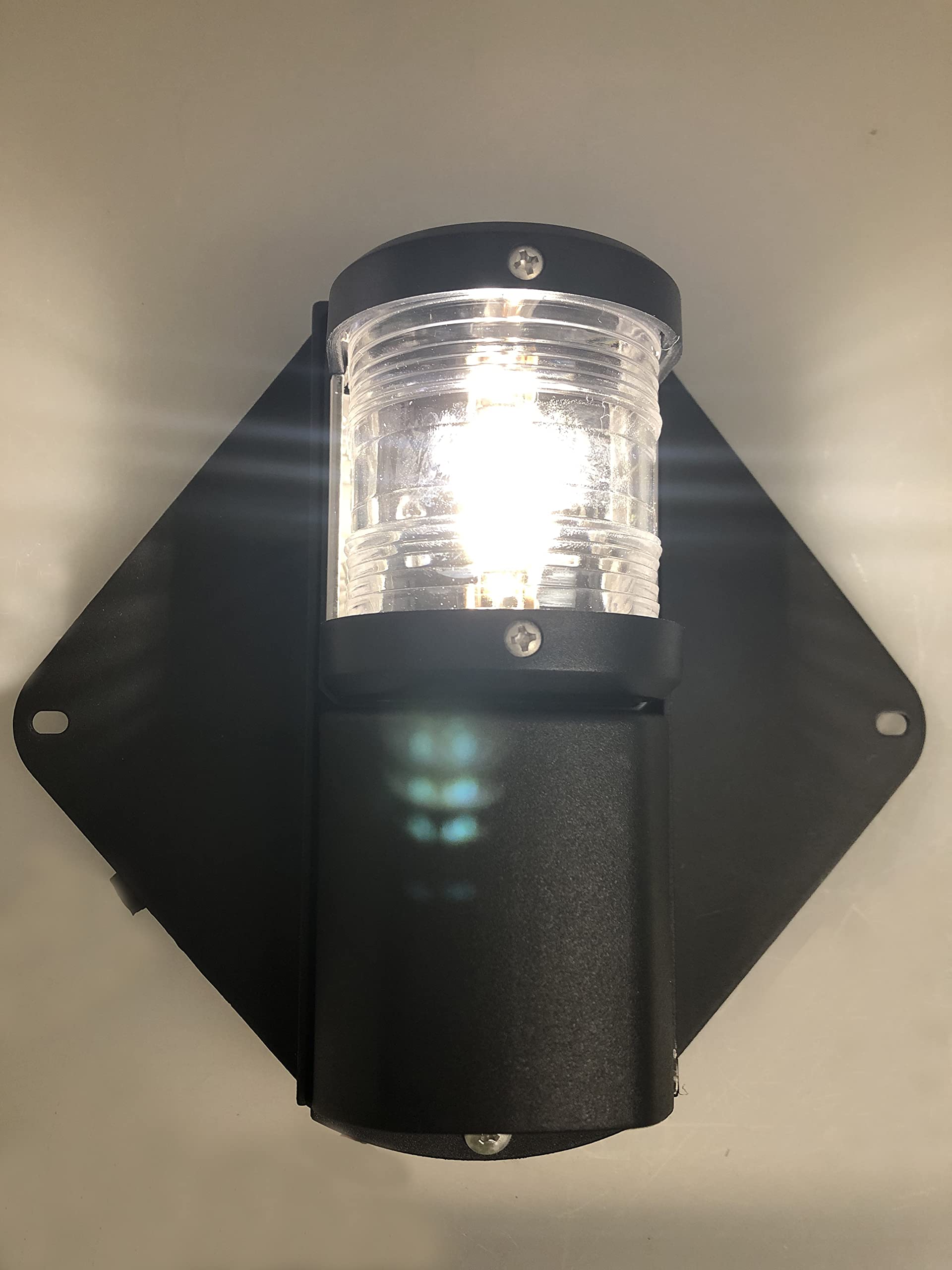

• Masthead: 12 LEDs producing a combined 55 lumens, ideal for navigational focus.

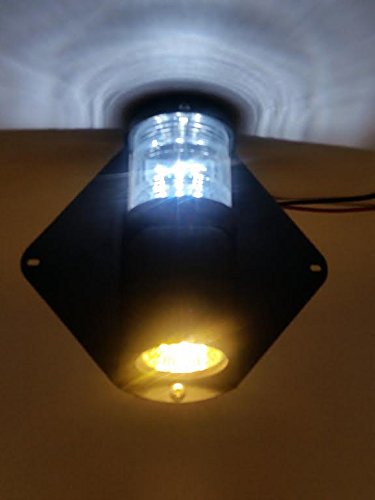

• Deck light: 6 LEDs delivering approximately 420 lumens for foredeck tasks and visibility.
• Total power draw: 0.5 W for the masthead section and 1.5 W for the deck section.

Will this fit my boat and how is it mounted?

The unit is designed for vertical surface mounting, which suits sailboat masts or foredeck spreader positions on boats up to 12 meters. Its molded plastic housing is splash proof and resists corrosion common in marine settings.

• Recommended for sailboats and powerboats up to 12 m (39').

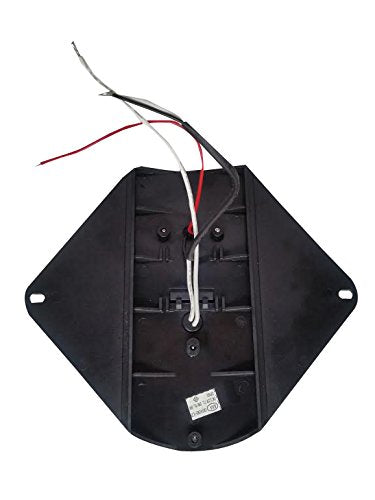

• Vertical mount surface installation — screws and wiring run through the base.
• Wiring diagram included to guide proper 12 VDC connections and placement.

What are the construction and electrical specifications?

This combo light uses robust, marine-grade plastic and low-voltage LEDs to keep weight and maintenance low. It integrates two LED types so each lamp can meet its intended function while remaining energy efficient.

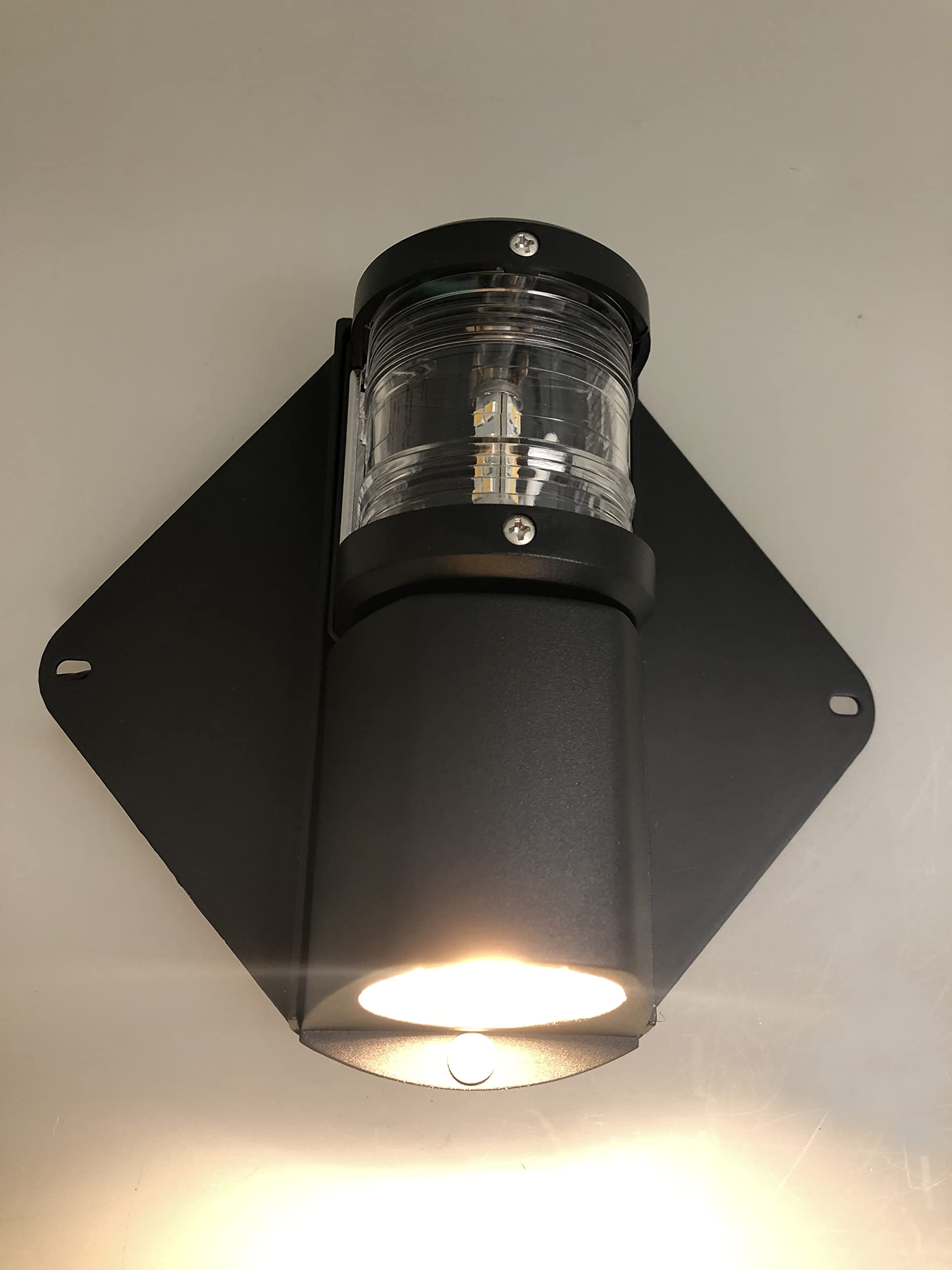

• Material: molded corrosion-resistant plastic housing.
• Voltage: 12 VDC; Masthead wattage 0.5 W, Deck wattage 1.5 W.

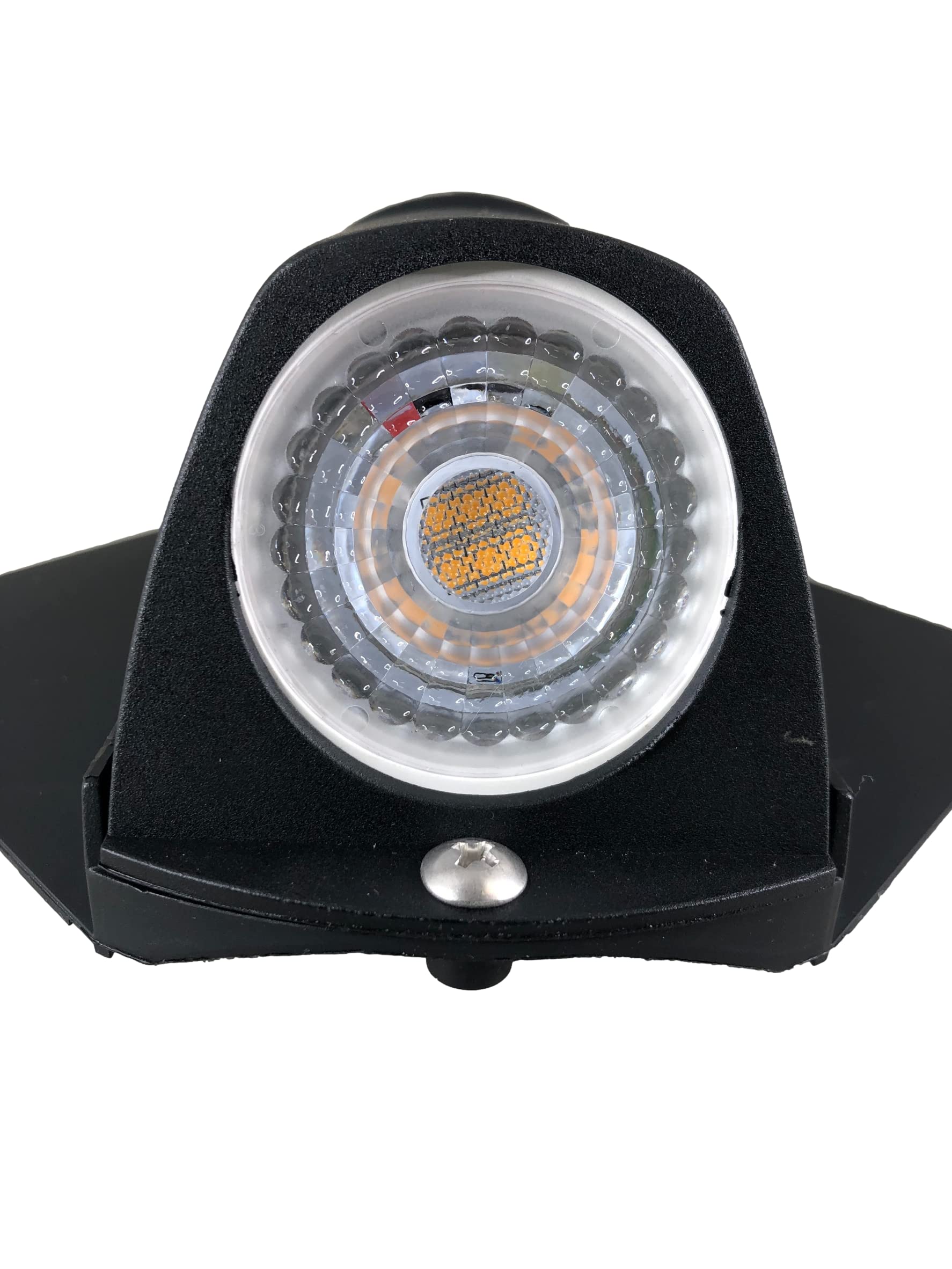

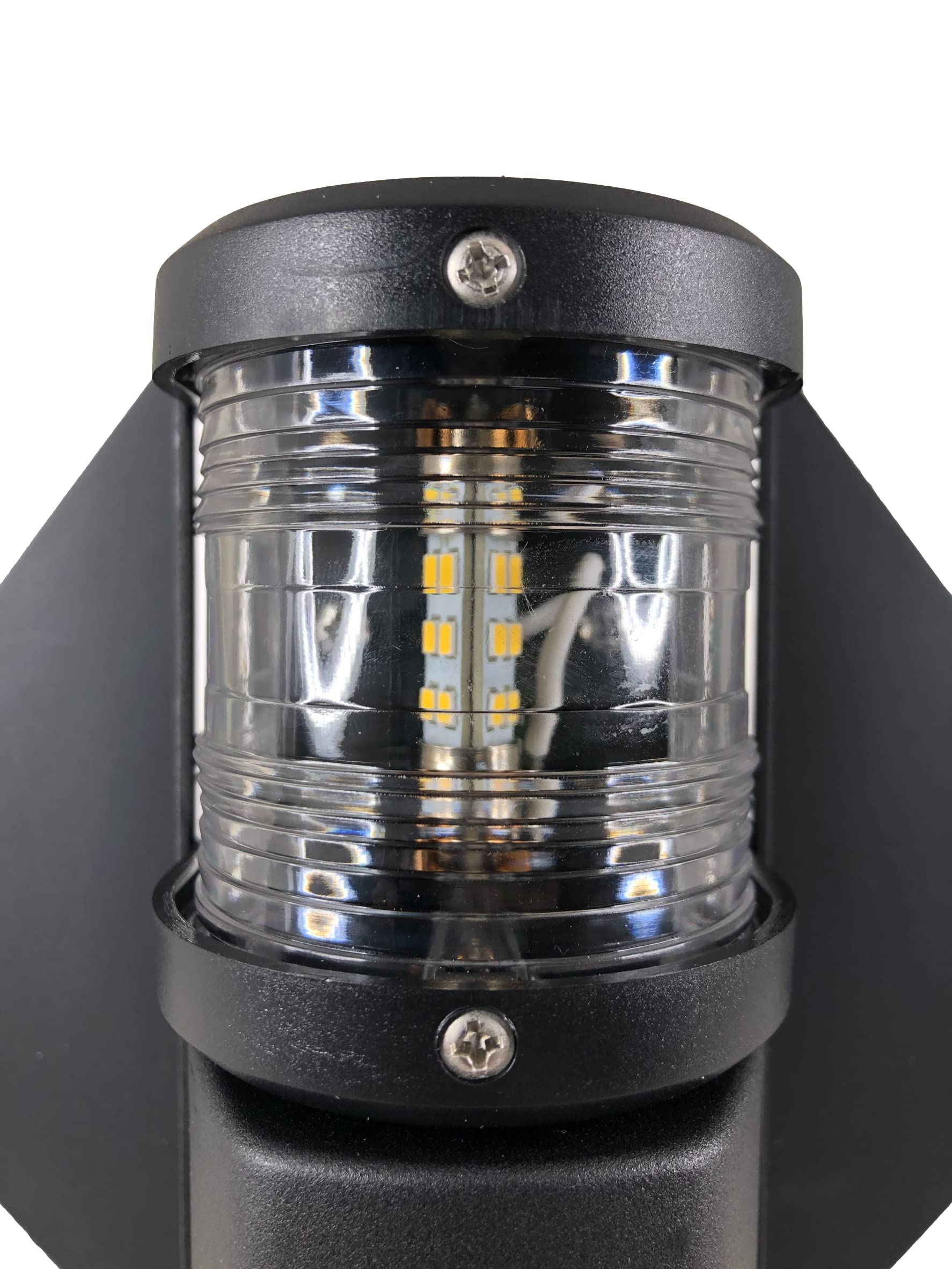

• LED types: Masthead uses 5mm LEDs (model 00131-LD); Deck uses MR16-style LEDs.
• Overall dimensions: approximately 7.5" x 6 3/8" (19.05 cm x 16.19 cm).

How easy is installation and maintenance?

Installation is intended to be straightforward for anyone familiar with basic 12 V marine wiring. The splash-proof design minimizes upkeep, and the included wiring diagram helps avoid common mistakes during mounting and connection.

• Wiring diagram included for step-by-step electrical guidance.
• Screws secure the vertical base for a stable mount on flat surfaces.
• Molded plastic housing reduces corrosion and routine surface care.

Who is this for: The Pactrade Marine P00100LD vertical combo is suited to sailors and powerboaters who need a compact, reliable two-in-one lighting solution for vessels up to 12 meters. It fits owners seeking low-power LED navigation and deck lighting in a splash-proof package that’s easy to install and maintain, especially on small cruising and day-sailer rigs or as a replacement masthead/foredeck fixture.
