Park Tool BBT-18 Bottom Bracket Tool for 8-Notch External Cups, 43.4mm OD, Hardened Cast

The Park Tool BBT-18 is a hardened cast tool designed to engage 8-notch external bottom bracket cups with a 43.4mm outside diameter for accurate installation and removal.

When servicing bikes with 8-notch external bottom bracket cups, you need a tool that fits precisely and transfers torque without rounding the notches. The BBT-18 is a purpose-made cast tool from Park Tool that matches the common 8-notch profile used by many bottom bracket manufacturers. It is built for mechanics who want a tight fit on the cup face, control when tightening, and reliable engagement during removal.

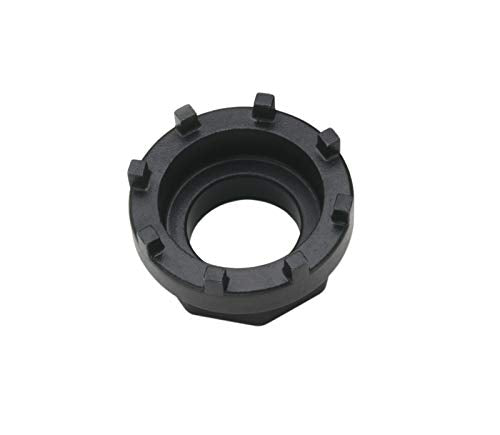

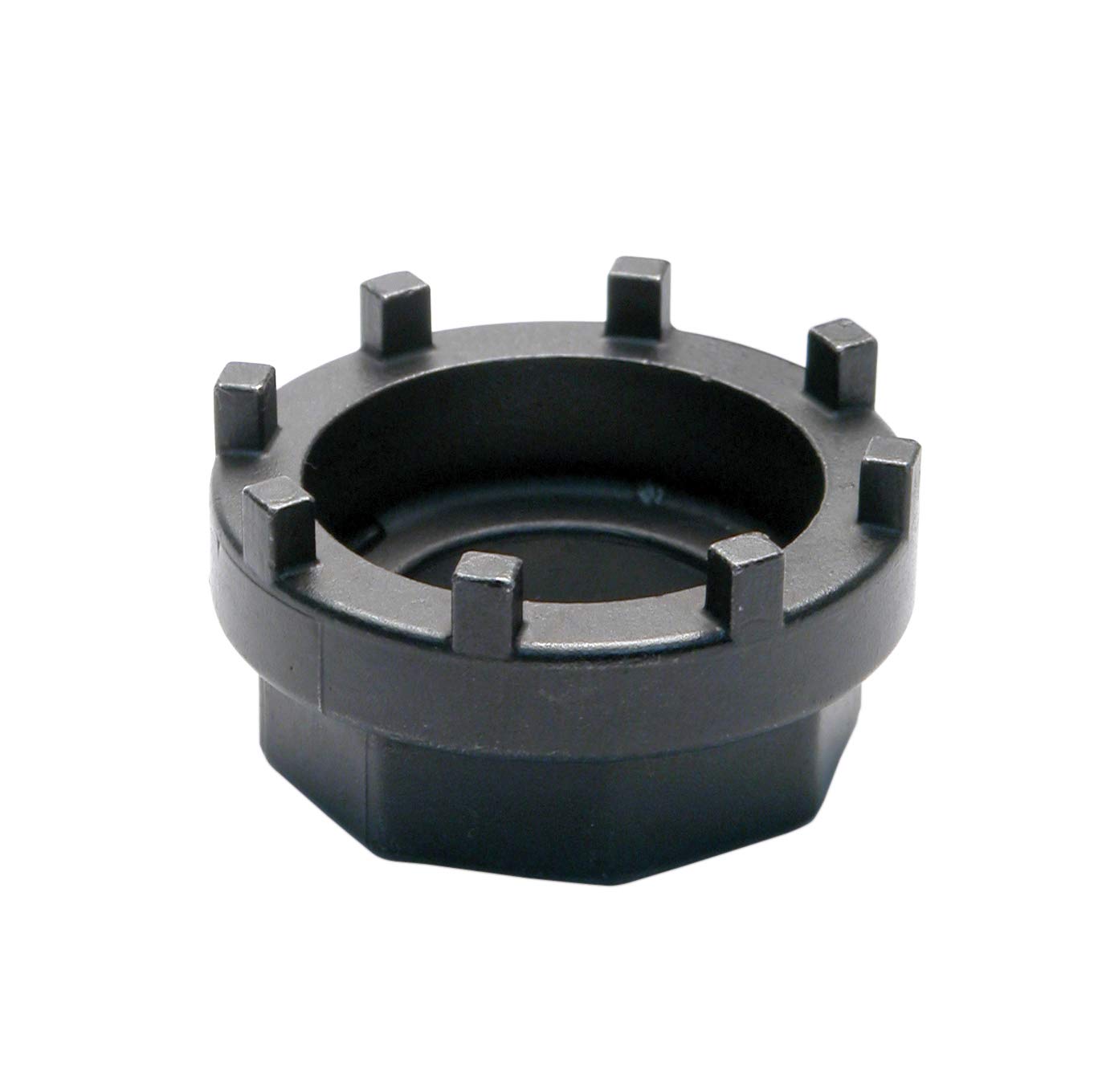

What sizes and notch geometry does this tool match?

The BBT-18 is configured for external bottom bracket cups with eight notches. Its outer diameter is nominally 43.4mm while each notch measures about 3.9mm across, giving secure bite and even load distribution across the cup.

• Outside diameter: nominally 43.4 mm for cup engagement
• Notches: 8 equally spaced, ~3.9 mm wide each
• Internal width: roughly 38 mm measured inside-to-inside
• Center clearance hole: 22.5 mm

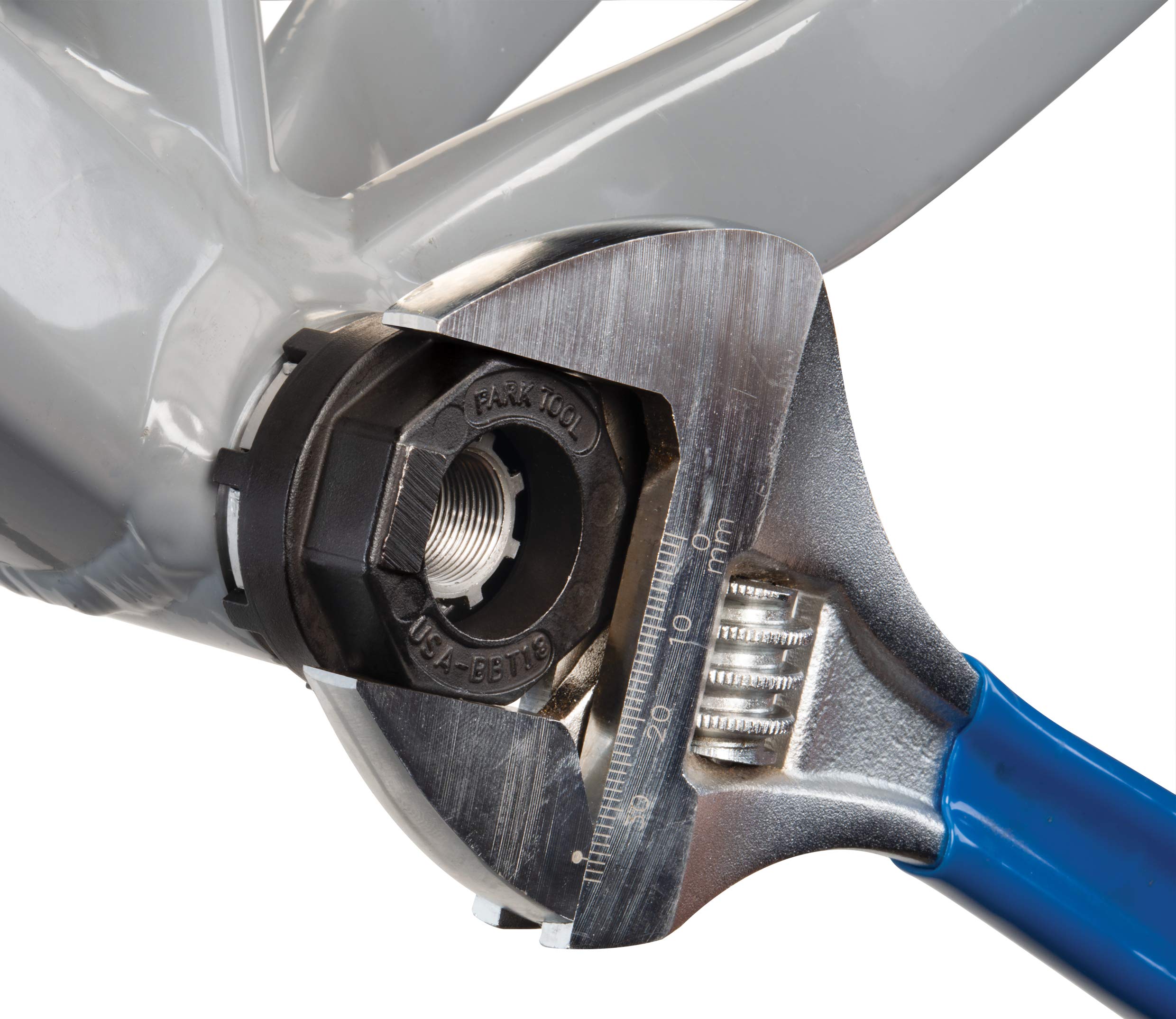

Will this fit my crank spindle or axle?

The BBT-18 has a central opening of 22.5 mm and is not large enough to slide over 30 mm spindles. Confirm your spindle diameter before choosing this tool to avoid incompatibility.

• Center hole diameter: 22.5 mm — fits hollow spindles up to that size
• Not compatible with 30 mm through-axles or spindles
• Works best on cups with exposed 8-notch faces

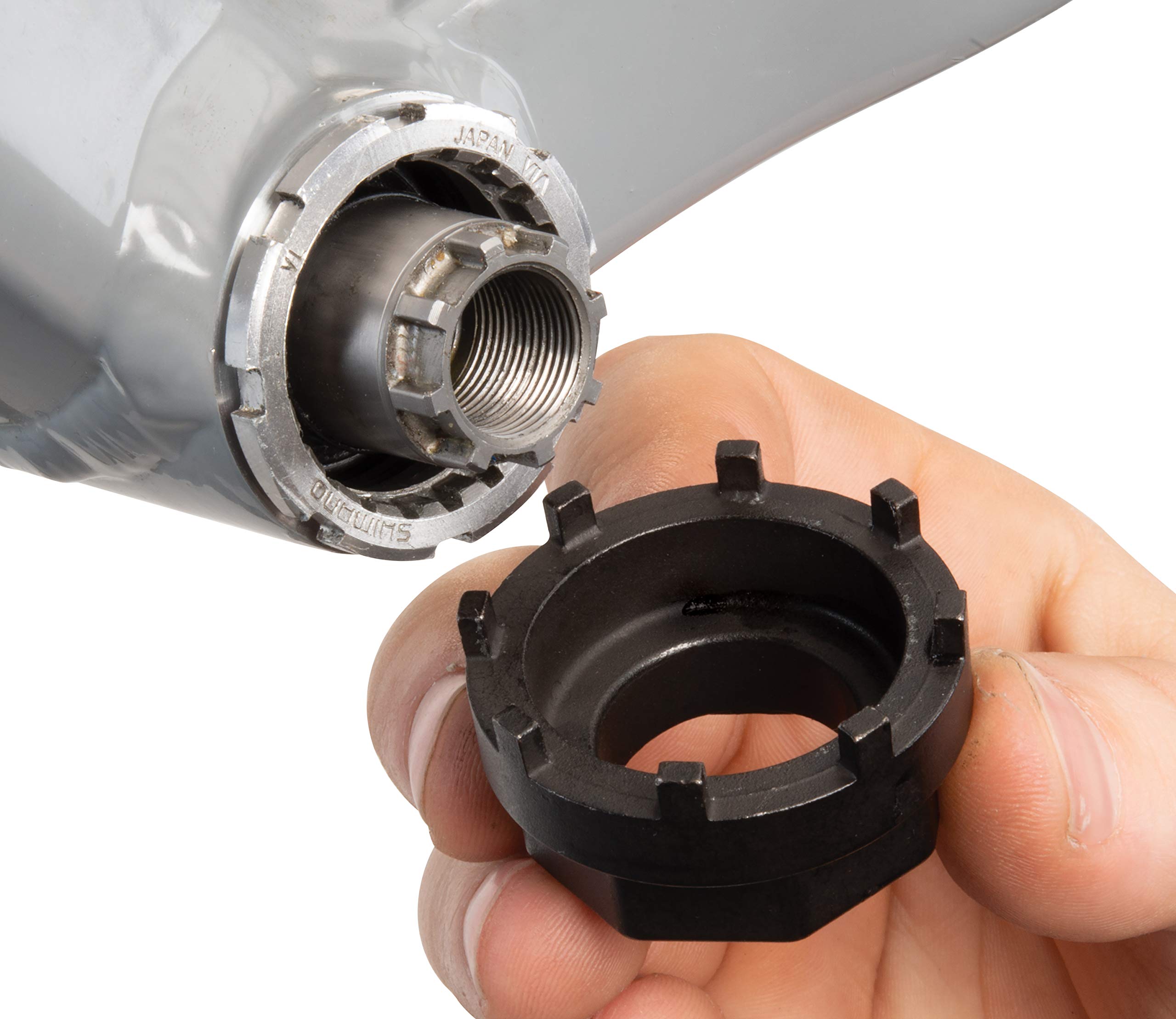

How should I use the BBT-18 to avoid damage?

Use a compatible wrench or socket driver that fits the tool’s drive interface and apply steady, controlled torque. Seat the tool fully on the cup so all eight notches engage before turning; avoid hammering to prevent nicking the cup faces.

• Ensure full seating on the cup before applying torque
• Use a torque wrench or long-handled wrench for controlled force
• Inspect cup notches for wear; replace if deformed
• Avoid using on 30 mm spindles to prevent jamming

What materials and workshop roles is the BBT-18 suited for?

Park Tool cast this driver to withstand workshop stresses and repeated use. It’s suitable for home mechanics and professional shops who service a range of bikes fitted with 8-notch external bottom bracket cups.

• Durable cast construction for repeated service use
• Compact profile for use on tight frames and crowded chainstays
• Simple geometry reduces slippage and notch rounding

Who is this for: The BBT-18 is aimed at cyclists, bike technicians, and independent mechanics who work on bikes using 8-notch external bottom bracket cups and need a precise, hard-wearing engagement tool. If you frequently remove or install these cups and your crank spindle is under 22.5 mm in diameter, this is a reliable, workshop-grade option. If your bike uses 30 mm spindles or uncommon cup standards, check compatibility or choose a different Park Tool model tailored to that specification.
