Partsam 6" Oval LED Trailer Tail Lights 2-Pack — Sealed IP65, Red & Amber 6-inch Flush-Mount

Partsam 2-pack 6-inch sealed oval LED tail lights combine brake, tail, turn and parking functions in a single flush-mount fixture for trailers, trucks and RVs.

These Partsam oval tail lights are a compact, weather-resistant lighting solution designed to replace worn or outdated lamps on trailers, trucks, campers and other 12V vehicles. Each lamp integrates a red outer LED ring for tail and brake illumination plus an amber center array for turn and parking signals, and comes with a molded rubber grommet and four-wire hookup for straightforward installation.

How do these lights perform in wet or dusty conditions?

The fixtures meet an IP65-level sealing standard, protecting the LEDs and internal wiring from splashing water and dust intrusion. The sealed housing and rubber grommet maintain a reliable connection and reduce corrosion risks at the mounting surface.

• IP65-rated sealed housing for dust and water resistance

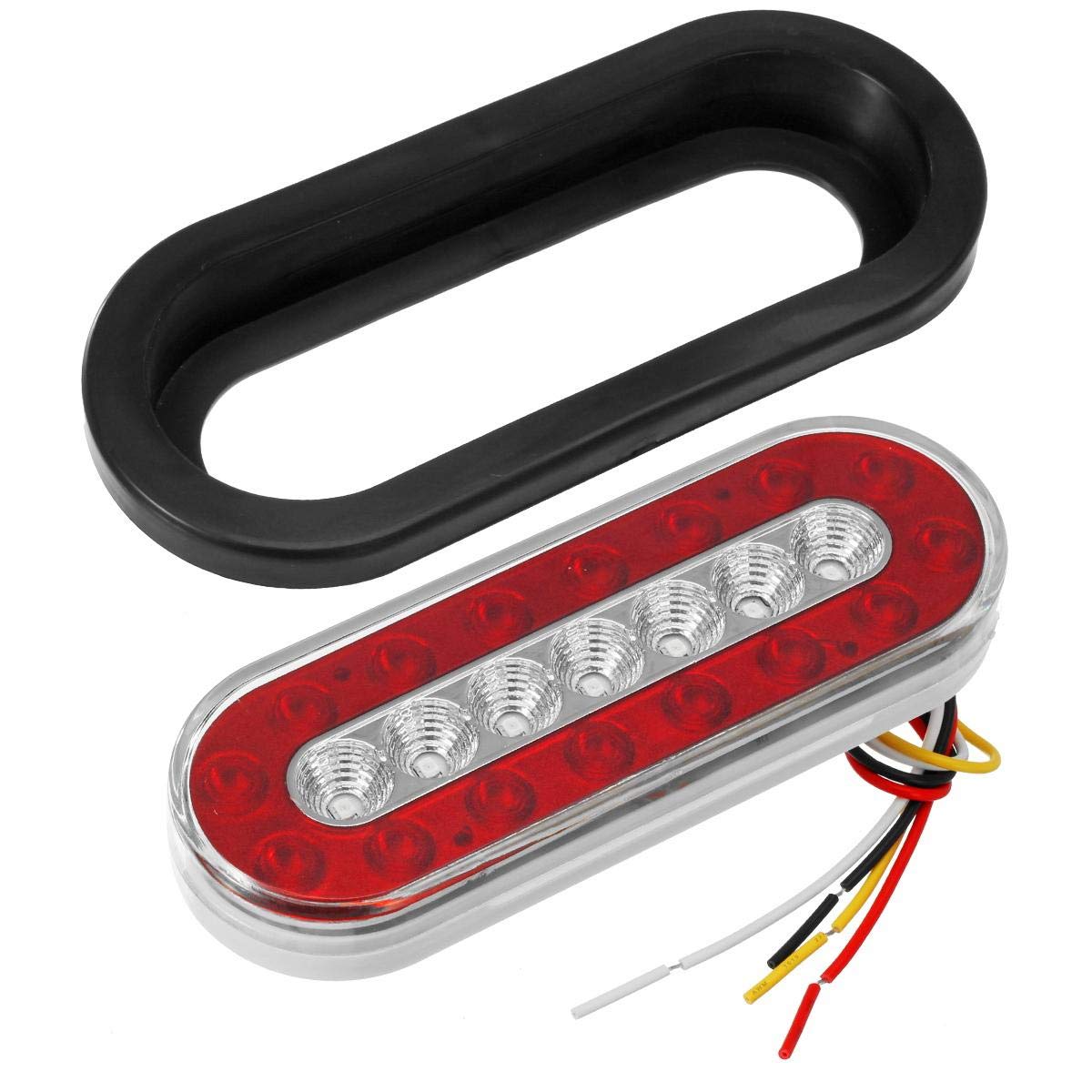

• Durable rubber grommet that helps prevent leaks and movement
• Corrosion-resistant lens and internal components for outdoor use

What wiring and electrical setup is required?

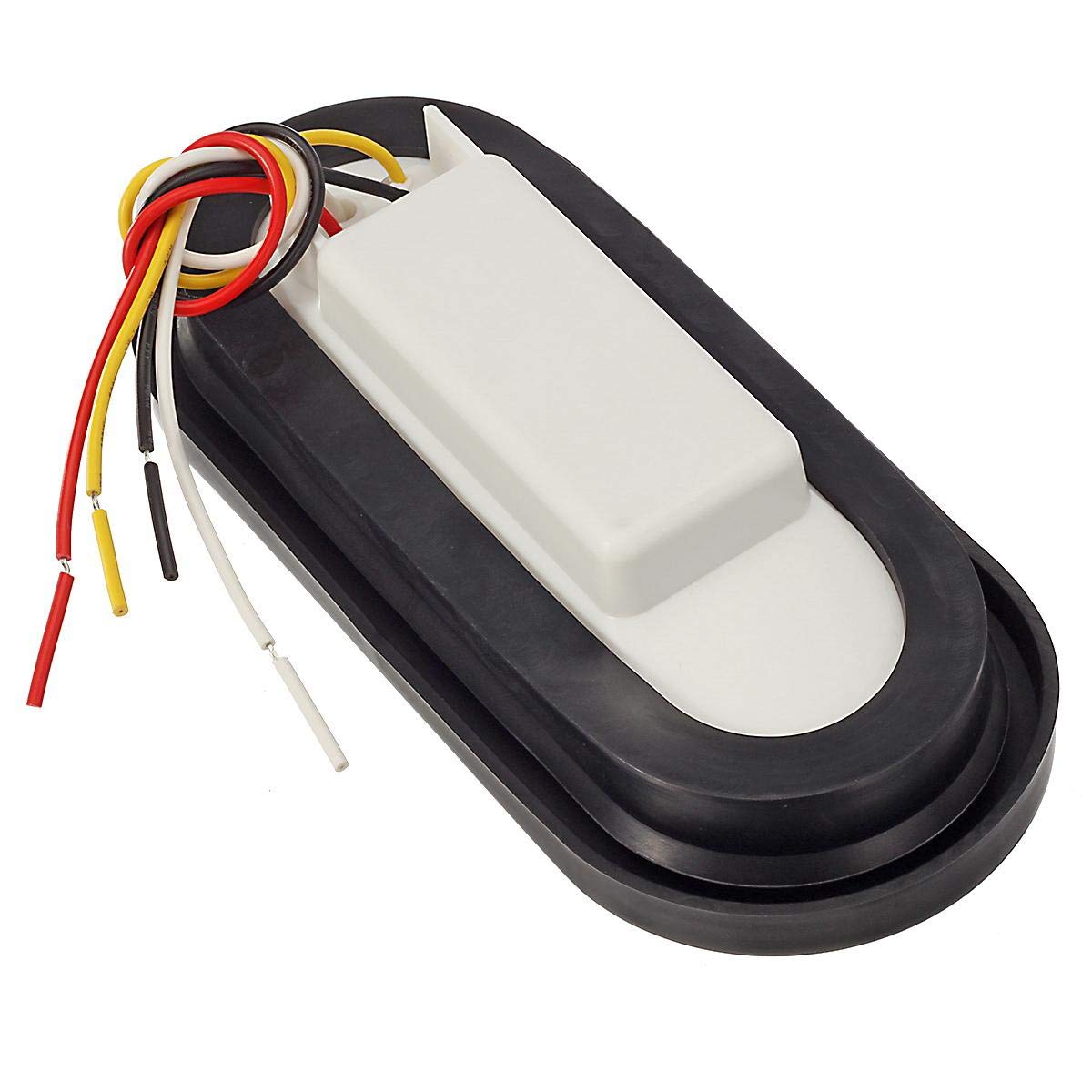

Each lamp uses a four-wire system: ground, brake, turn, and running/tail. That wiring layout makes the lights compatible with standard 12V DC circuits commonly found on trailers, trucks and recreational vehicles.

• Black wire — ground connection
• Red wire — brake light feed
• Yellow wire — turn signal feed
• White wire — running/tail light feed

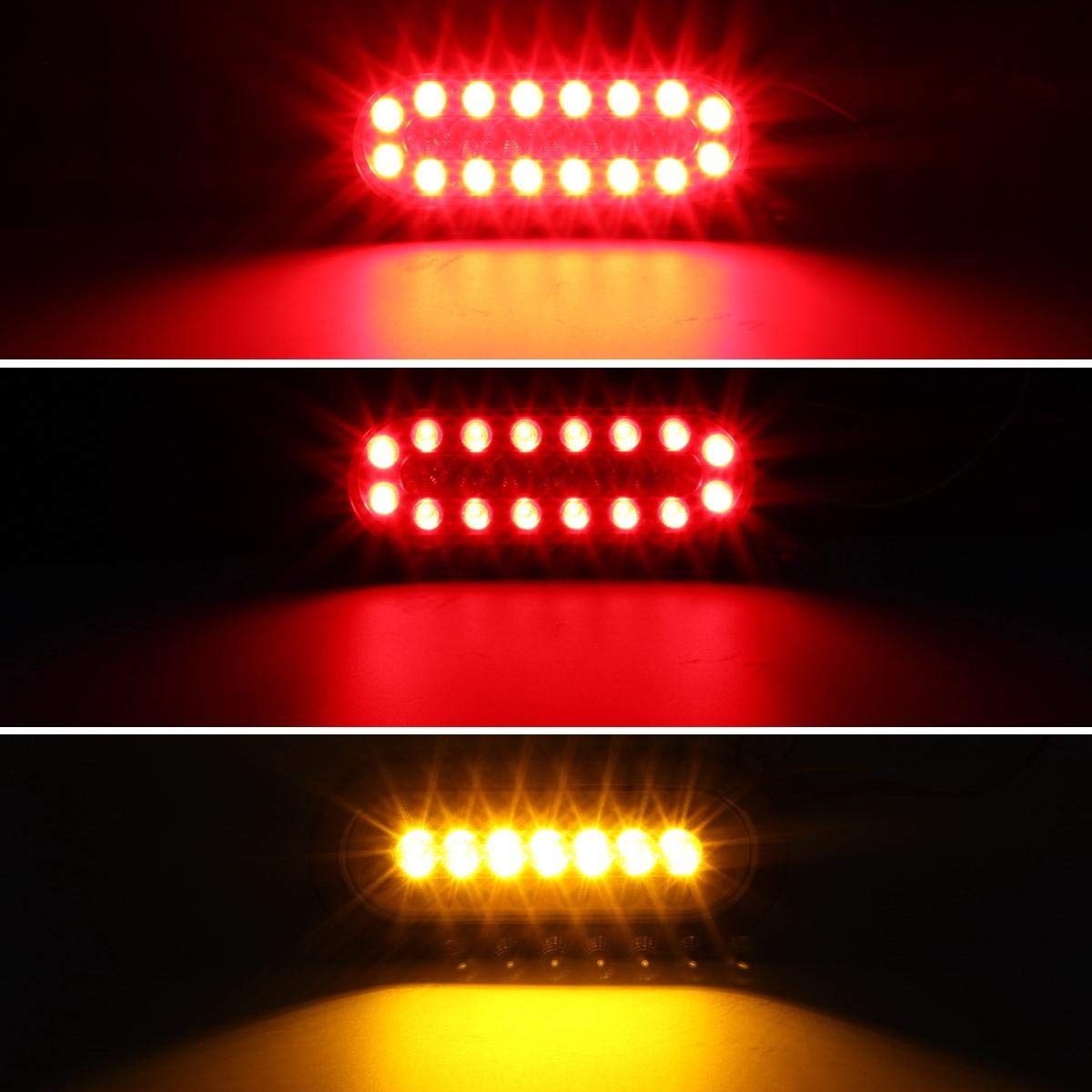

How bright and visible are the LEDs compared with old incandescent units?

The lamps use 23 total LEDs per fixture (16 on the outer red ring and 7 amber in the center) with faceted miro-flex reflectors to increase apparent brightness and spread. Individual diodes and reflectors produce a clean, evenly distributed beam that improves night and daytime visibility without excessive glare.

• 16 red outer LEDs for tail and brake illumination
• 7 amber center LEDs for turn and parking signals
• Miro-flex faceted reflector design for better light distribution

What are the size and mounting details?

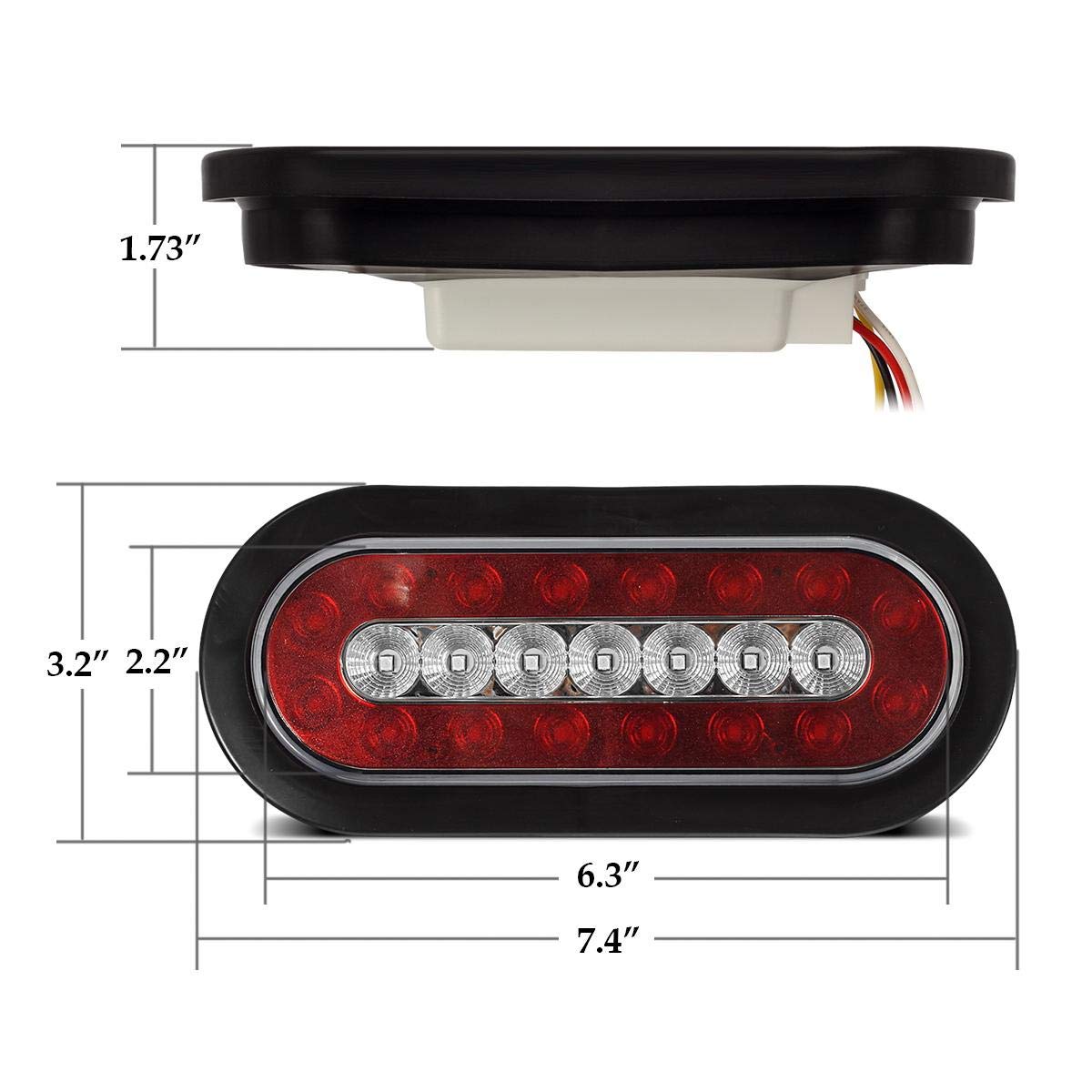

The visible light area measures six inches across, while the overall housing diameter is about 7.4 inches to accommodate the rubber grommet and flush mounting. The package is designed for a simple grommet-style installation that sits mostly flush against the vehicle panel.

• Inner visible diameter: 6.3 inches; overall outer diameter: 7.4 inches
• Flush-mount style with durable oval rubber grommet included
• Compact 6" oval footprint fits many trailer and truck recesses

Who is this for: These Partsam oval LED tail lights suit owners of trailers, campers, pickup trucks, utility vehicles and boats that need a weatherproof, multi-function tail light replacement. They are ideal if you want straightforward four-wire installation, improved LED brightness and a compact, sealed lamp that resists corrosion and environmental exposure. Choose this 2-piece set when you need matching, reliable lights for brake, tail, turn and parking functions on any 12V-equipped vehicle.
