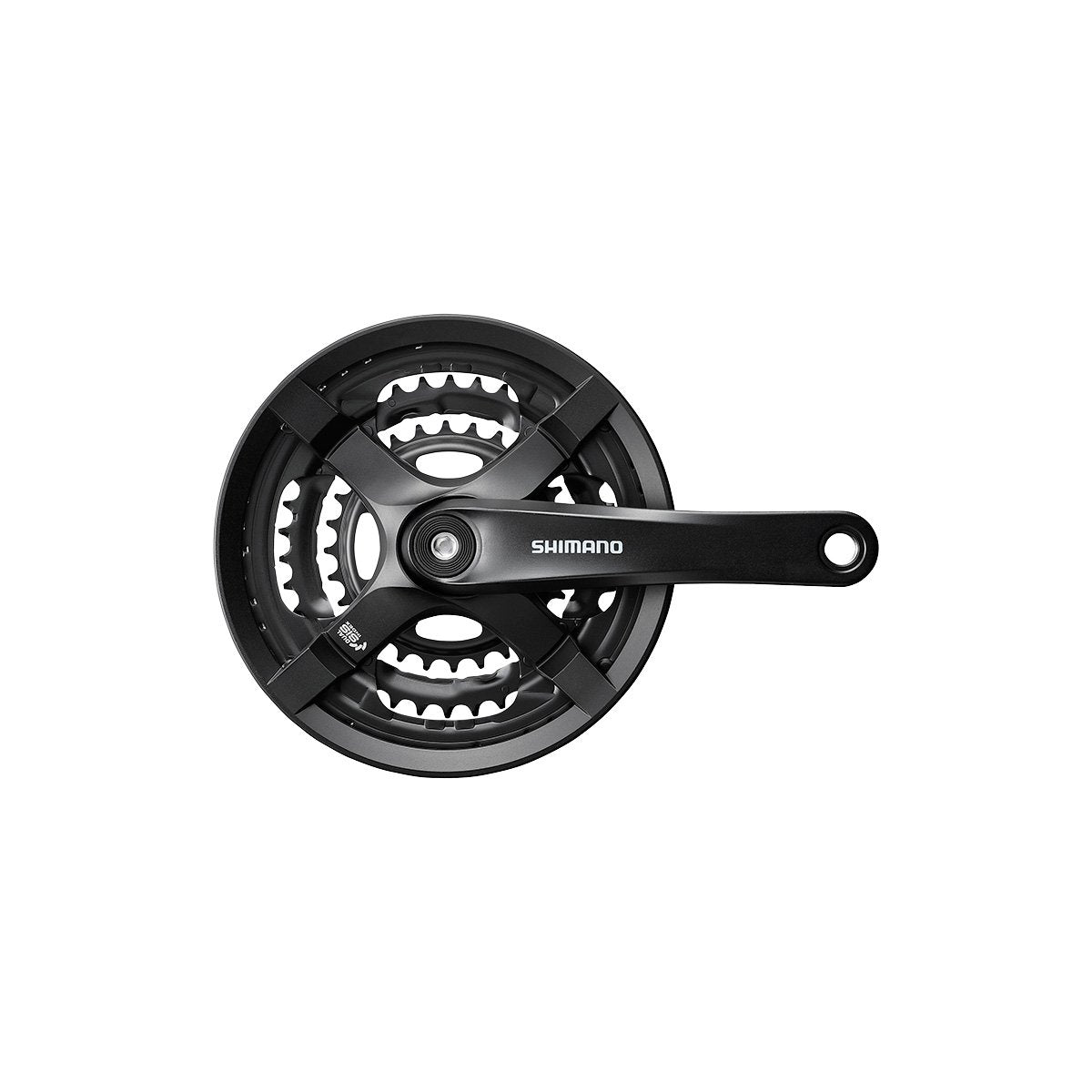

SHIMANO FC‑TY501 Triple Crankset 170mm 42-34-24T Black — Aluminum Arms, Riveted Steel Rings for 6/7/8‑Speed MTB

The SHIMANO FC-TY501 is a durable 170mm triple crankset with 42/34/24T riveted chainrings, built for reliable shifting on 6/7/8-speed mountain-bike drivetrains.

This crankset blends proven Shimano engineering with rugged materials to give riders a dependable front drivetrain option for trail, cross-country and everyday mountain biking. Featuring an aluminum crank arm, steel riveted chainrings and a square-taper JIS interface, the FC-TY501 is designed to work with most 6–8 speed systems and common MTB hub standards. It’s supplied in a sleek black finish and ships without a bottom bracket so you can pair it with your preferred spindle or existing BB.

How does the FC-TY501 improve gear range for varied terrain?

The triple-ring layout (42/34/24T) provides a broad range of gears to tackle steep climbs and fast descents without frequent chain skips. The tooth spread lets you select a comfortable cadence across technical climbs and open flats.

• 42T outer ring for higher-speed sections and stronger push
• 34T middle ring for mixed-terrain cruising and moderate climbs
• 24T inner ring for steep gradients and low-cadence climbing
• Riveted construction keeps rings secured under load

Will this crankset fit my bike and existing drivetrain?

The FC-TY501 is compatible with 6-, 7- and 8-speed indexed systems and installs on a square-taper JIS spindle. It’s designed to align with common MTB hub spacing and chainlines, but the bottom bracket is not included so matching your BB spindle is required.

• Works with 6/7/8-speed derailleurs and chains
• Square taper JIS interface—choose compatible bottom bracket spindle length
• Q-factor ~185.5mm fits typical MTB stances
• Intended for 135mm and 142mm hub spacing common on MTB frames

How durable and serviceable is the FC-TY501 for off-road use?

Built with steel chainrings and an aluminum arm, the crankset balances strength and weight for everyday trail abuse. Riveted rings reduce the risk of ring movement and make replacement straightforward if rings wear down over time.

• Steel ring construction resists wear from rough chains and debris
• Aluminum crank arm offers stiffness where power is applied
• Riveted rings simplify service and replacement of worn rings
• Sleek black coating helps hide scuffs while maintaining a professional look

What should I know about installation and compatibility choices?

Because the FC-TY501 is sold without a bottom bracket, you’ll need to match the crankset to a compatible square-taper BB and spindle length to achieve the correct chainline. Basic tools and standard bottom bracket installation knowledge are sufficient for most home mechanics.

• Requires square-taper JIS bottom bracket (not included)
• Confirm spindle length for correct chainline with triple chainrings
• Use appropriate crank fixing bolt torque to avoid play
• Works with standard 9/16" pedal threads

Who is this for: The SHIMANO FC-TY501 is aimed at riders upgrading or replacing a front drivetrain on 6–8-speed mountain bikes who want a robust, cost-effective crankset with wide gearing options. It’s a good match for recreational trail riders, commuters using mixed surfaces, and cyclists who prefer a triple-ring setup for maximum low-end climbing range without sacrificing higher gears for flats and descents. If you need a complete installation, plan to purchase a compatible square-taper bottom bracket and the correct spindle length to suit your frame and chainline requirements.
