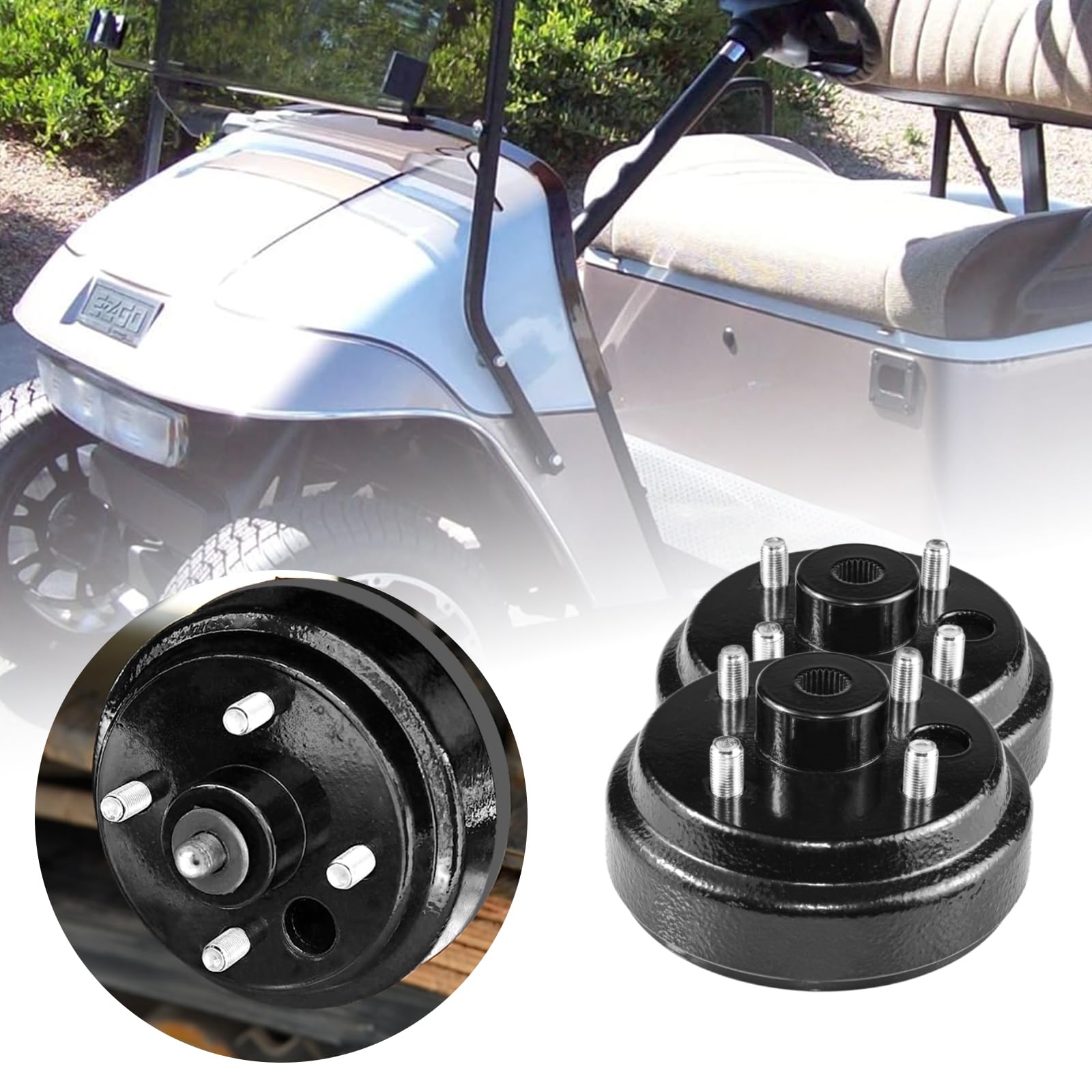

Shu-Ran Golf Cart Brake Drum Hub Assembly, 1 Pack, Fits EZGO TXT 1982-Up, 24-Tooth Star Spline, 3/4" Bore

Shu-Ran's brake drum and hub assembly is a direct-fit replacement for EZGO TXT golf carts (1982 and newer) built to the OEM #19186G1P fitment and star-spline specification.

This replacement assembly restores the braking hub interface on EZGO electric TXT models and certain earlier gas vehicles, replacing worn or damaged drums with a robust, weather-resistant component. Manufactured to match the OEM fit and spline pattern, the Shu-Ran hub simplifies installation and returns proper wheel braking engagement without the guesswork of mismatched parts.

How does this drum fit my EZGO TXT model?

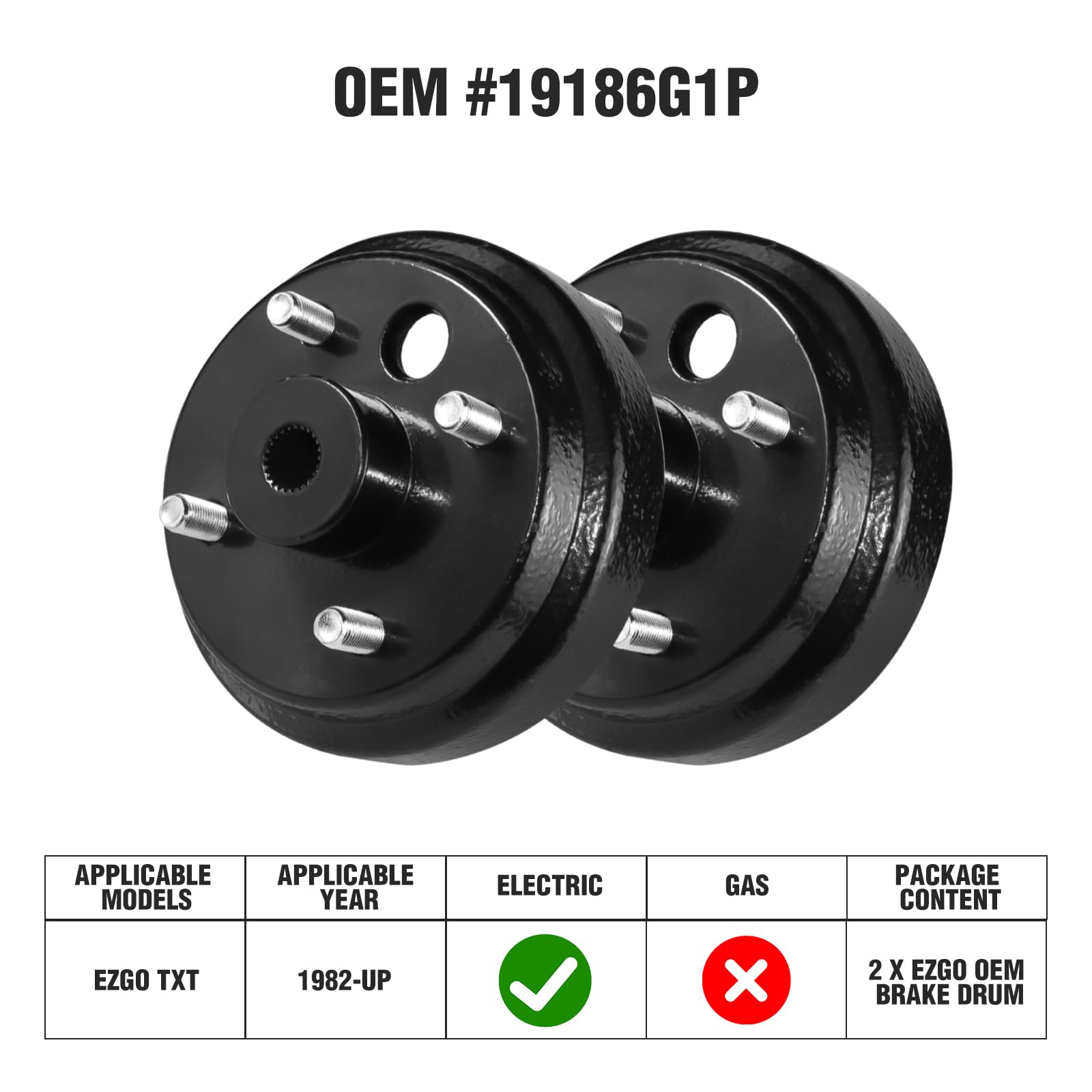

The Shu-Ran assembly is designed to fit EZGO TXT electric carts from 1982 onward and two-wheeled gas models from 1982–1993. It uses the same 24-tooth star spline and 3/4-inch center bore as the OEM part, so it aligns with standard TXT axle interfaces. You won’t need to modify the axle or spindle when replacing an identical OEM-style hub.

• Compatible with EZGO TXT electric models 1982 and up
• Compatible with EZGO two-wheeled gas models 1982–1993

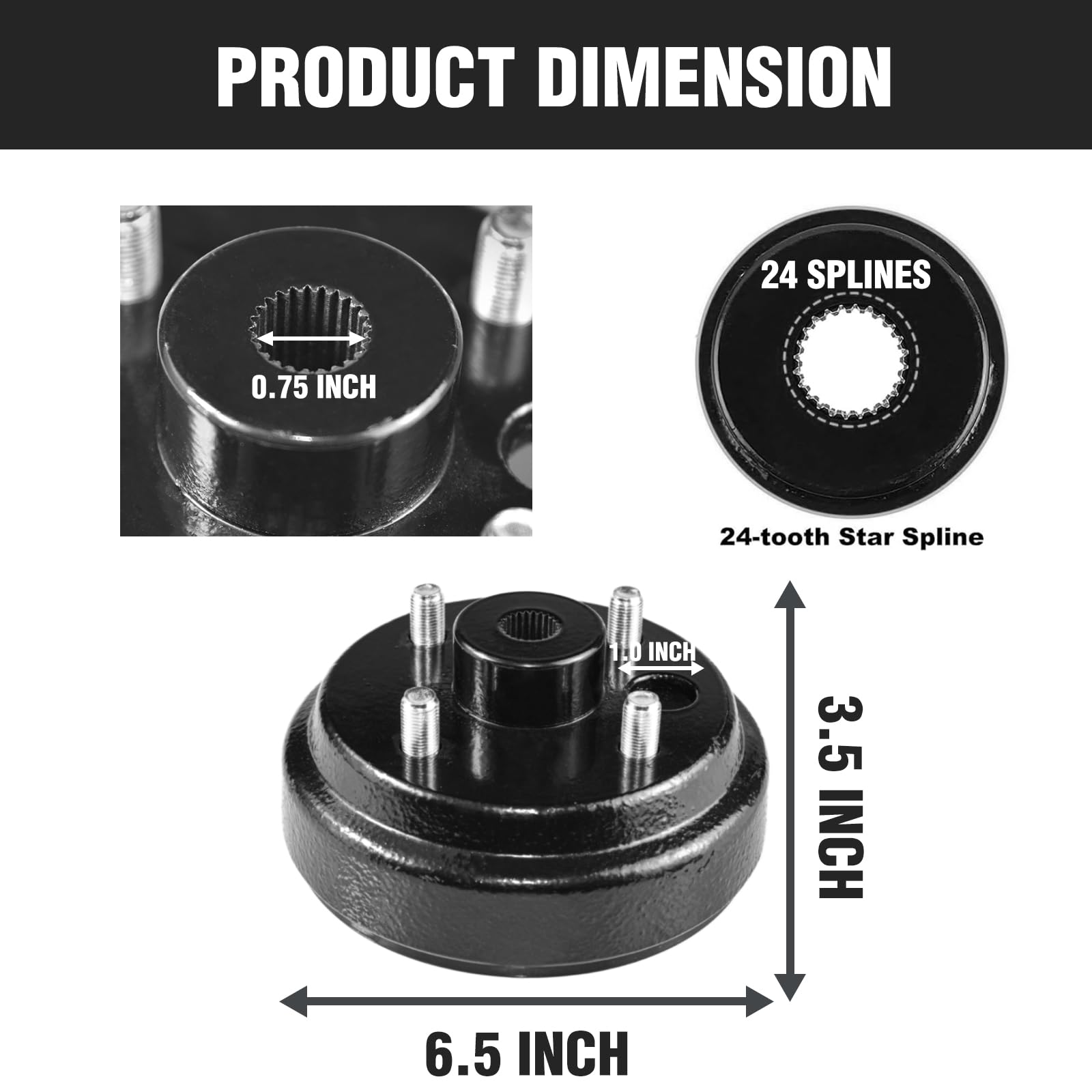

• 24-tooth star spline, 3/4-inch center hole to match OEM
• Direct-fit replacement for OEM #19186G1P

What are the key physical features and materials?

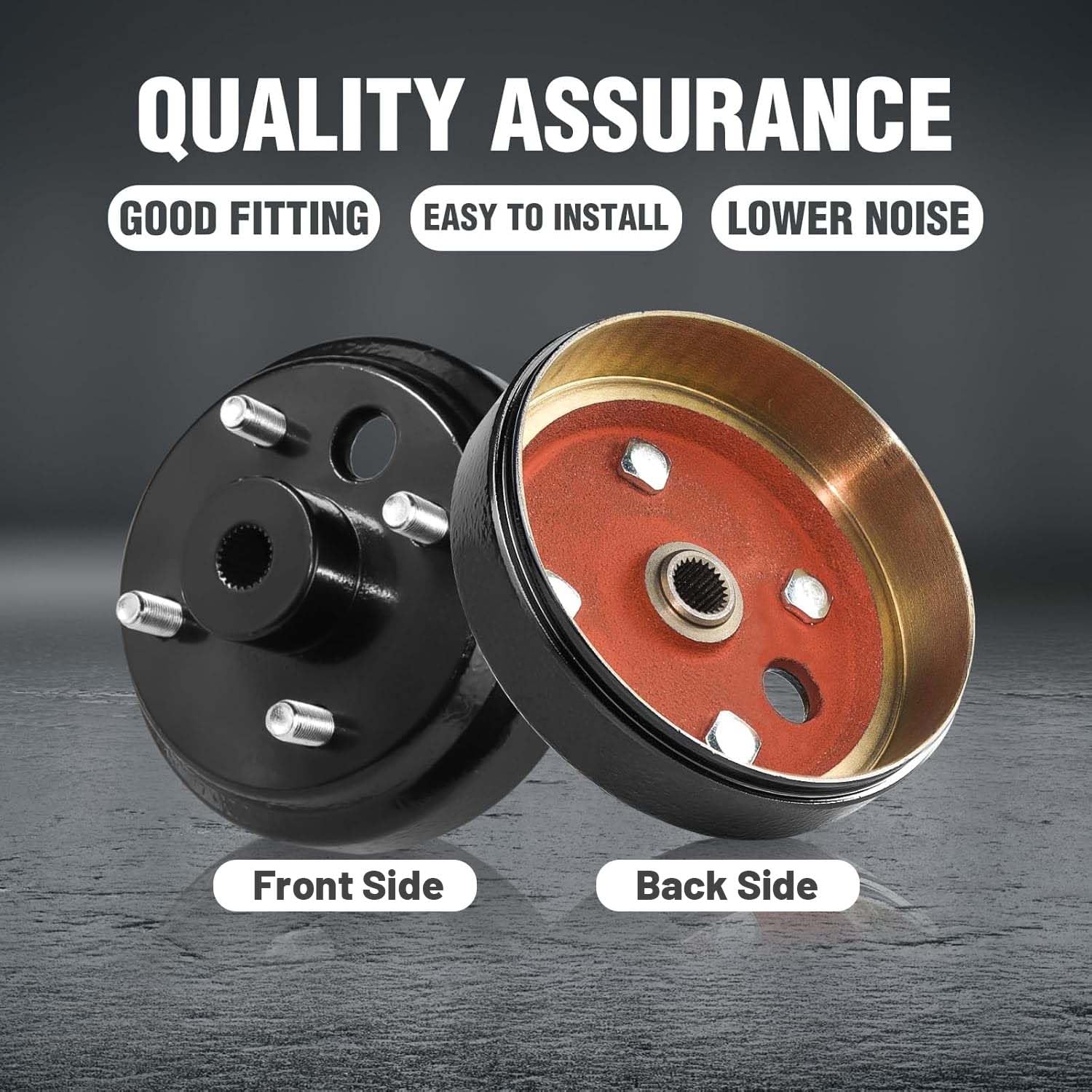

The drum and hub are cast from heat- and water-resistant materials chosen to withstand outdoor exposure and braking temperatures typical for golf cart use. The hub uses a cast nut (5/8-inch x 18 tpi) and a thick flat washer to secure it to the axle, and the star spline engages the axle splines without added adapters. Components are finished to reduce corrosion and ensure smooth mounting.

• Heat- and water-resistant casting for durability

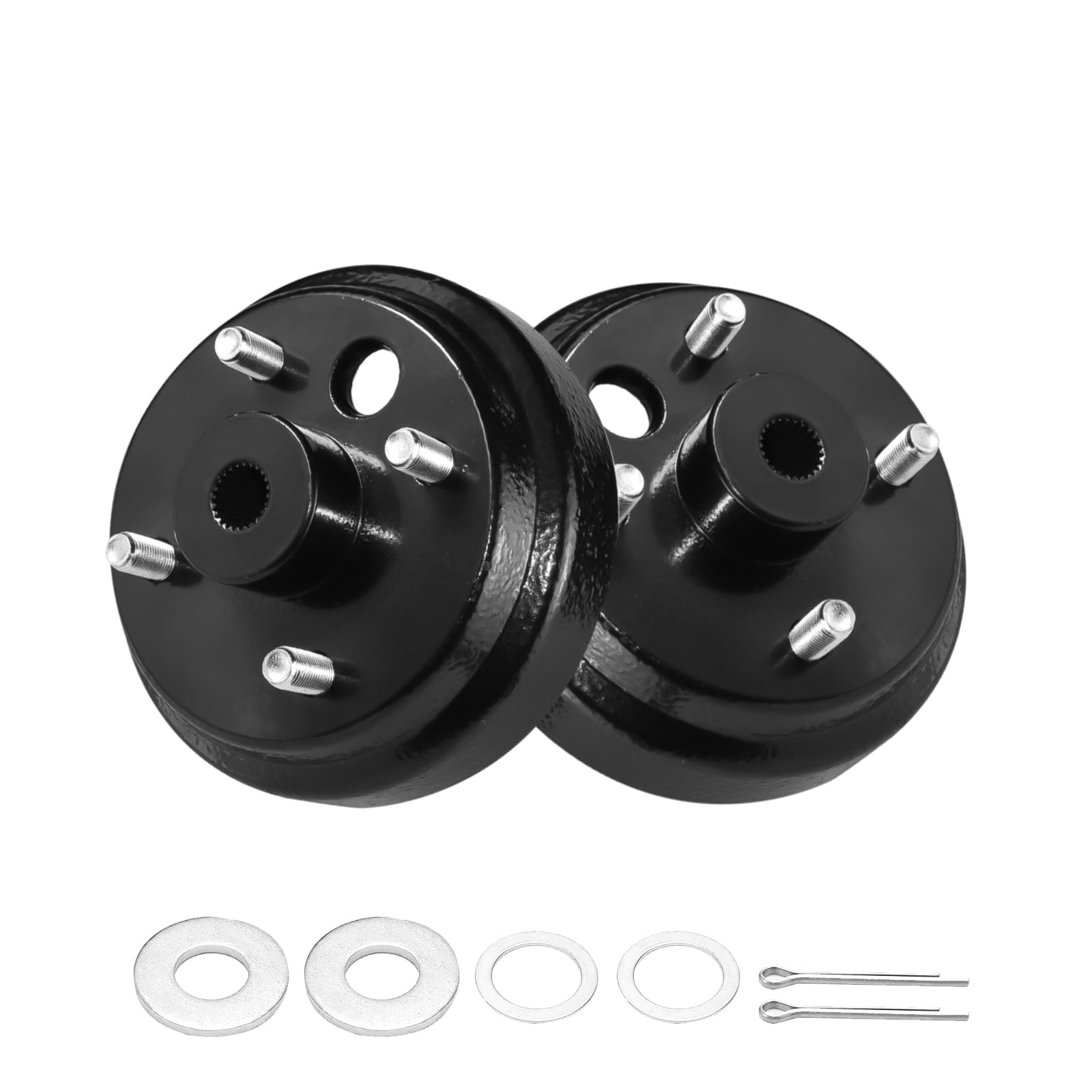

• Includes cast nut (5/8-inch x 18 tpi) and thick flat washer
• 24-tooth star spline for positive engagement
• OEM-style geometry for proper brake shoe alignment

How simple is the installation process?

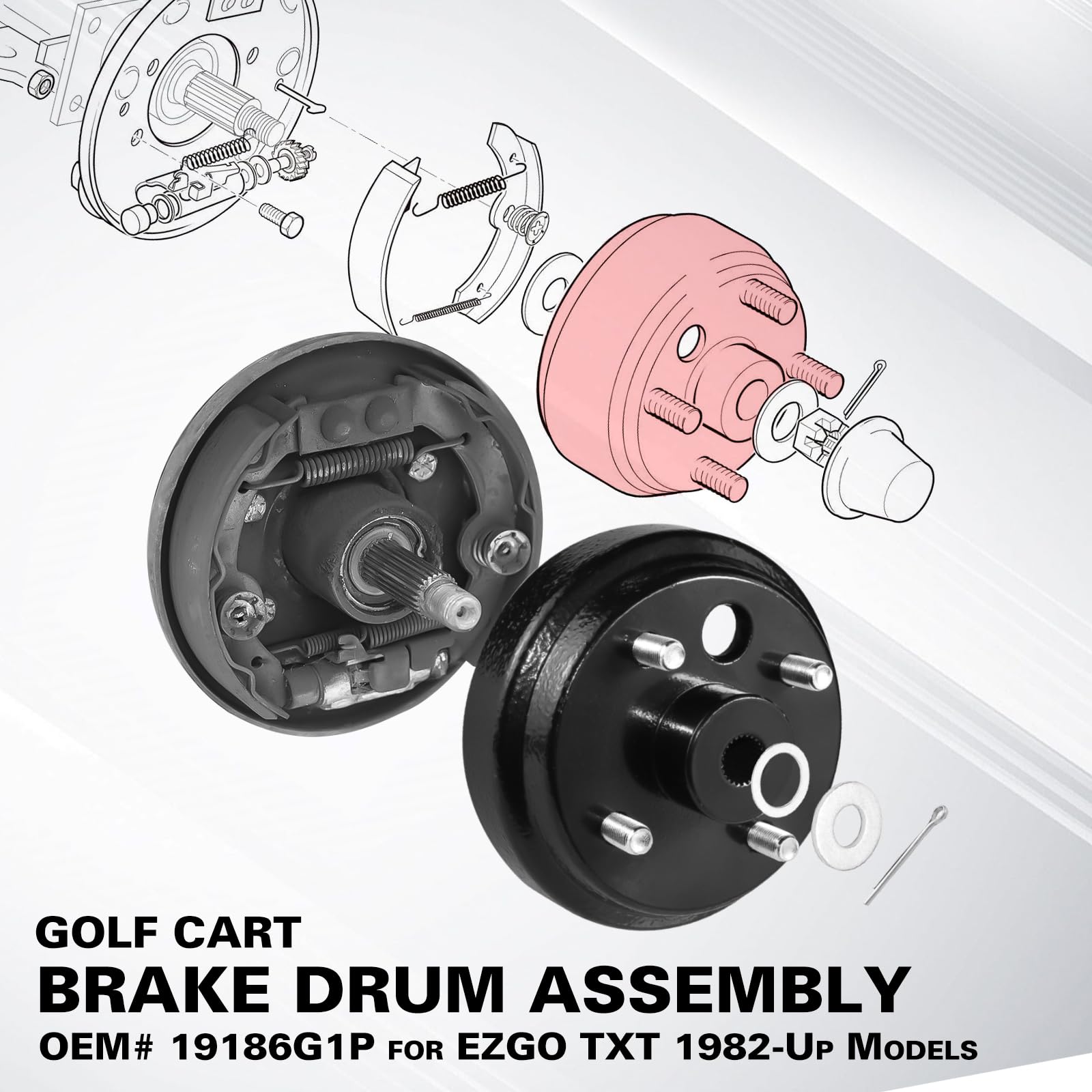

Installation follows standard brake drum replacement steps used on EZGO carts: remove wheel, pull old drum and hub, slide the Shu-Ran assembly onto the axle spline, and secure with the supplied nut and washer torque pattern. No special machining or re-splining is required when replacing an identical OEM-type hub, though basic hand tools and torque control are recommended for safe assembly.

• Removes and installs with common hand tools
• No axle modification required for direct-fit replacements
• Secure with provided cast nut and flat washer
• Follow torque specs from your EZGO service manual

What should I check before ordering?

Confirm your cart model year and whether the existing hub uses a star-spline rather than a straight keyway; this part replaces earlier hub designs that use star splines. Measure the center bore and count spline teeth if unsure, and compare the OEM part number (19186G1P) to your current component to ensure compatibility. If you have any doubts, contacting a technician or referencing your EZGO parts manual prevents incorrect purchases.

• Verify EZGO TXT model year (1982+ for electric)
• Confirm 24-tooth star spline and 3/4-inch bore
• Compare to OEM #19186G1P on your existing part
• Consult an EZGO parts manual for axle/nut torque values

Who is this for: This Shu-Ran brake drum and hub assembly is aimed at EZGO TXT owners, fleet managers, and repair technicians who need a reliable, OEM-compatible replacement for worn or damaged hubs. It’s ideal for anyone maintaining older TXT electric carts or restoring 1982–1993 two-wheeled gas EZGO vehicles who wants a direct-fit, corrosion-resistant part that matches the OEM spline pattern.
