LAFORMO Single-Axle Trailer Hanger Kit for Double-Eye 1-3/4" Leaf Springs — 7/8" Rear Eye, Fits 2,000–7,000 lb Axles

Heavy-duty LAFORMO Single-Axle Trailer Hanger Kit secures double-eye 1-3/4" wide leaf springs to single-axle trailer frames for 2,000–7,000 lb axles.

This hanger kit provides the frame-mounted components needed to attach two leaf springs on a single-axle trailer using double-eye springs. It supplies the front and rear hangers, steel-bushed rear hangers, shackle straps, bolts, and lock nuts to create a reliable connection between springs and frame. Note that axle-to-spring mounting parts (such as u-bolts and spring seats) are not included; this kit focuses on the spring-to-frame hardware.

What components come in the LAFORMO hanger kit and what are their sizes?

The kit contains front and rear hangers sized for double-eye springs, plus shackles and fasteners to complete the spring-to-frame attachment. Each piece is sized to match common double-eye spring dimensions used on light and medium trailers.

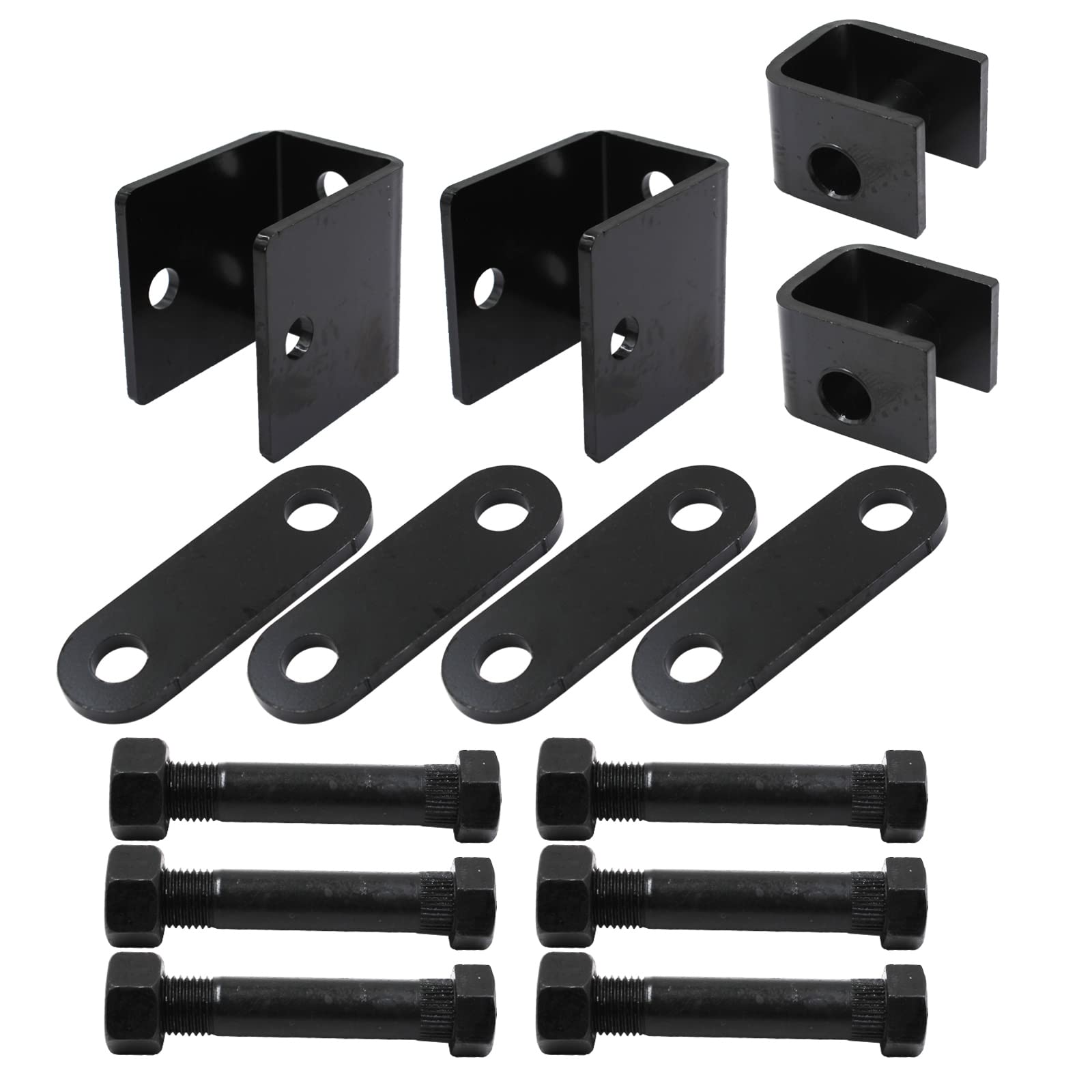

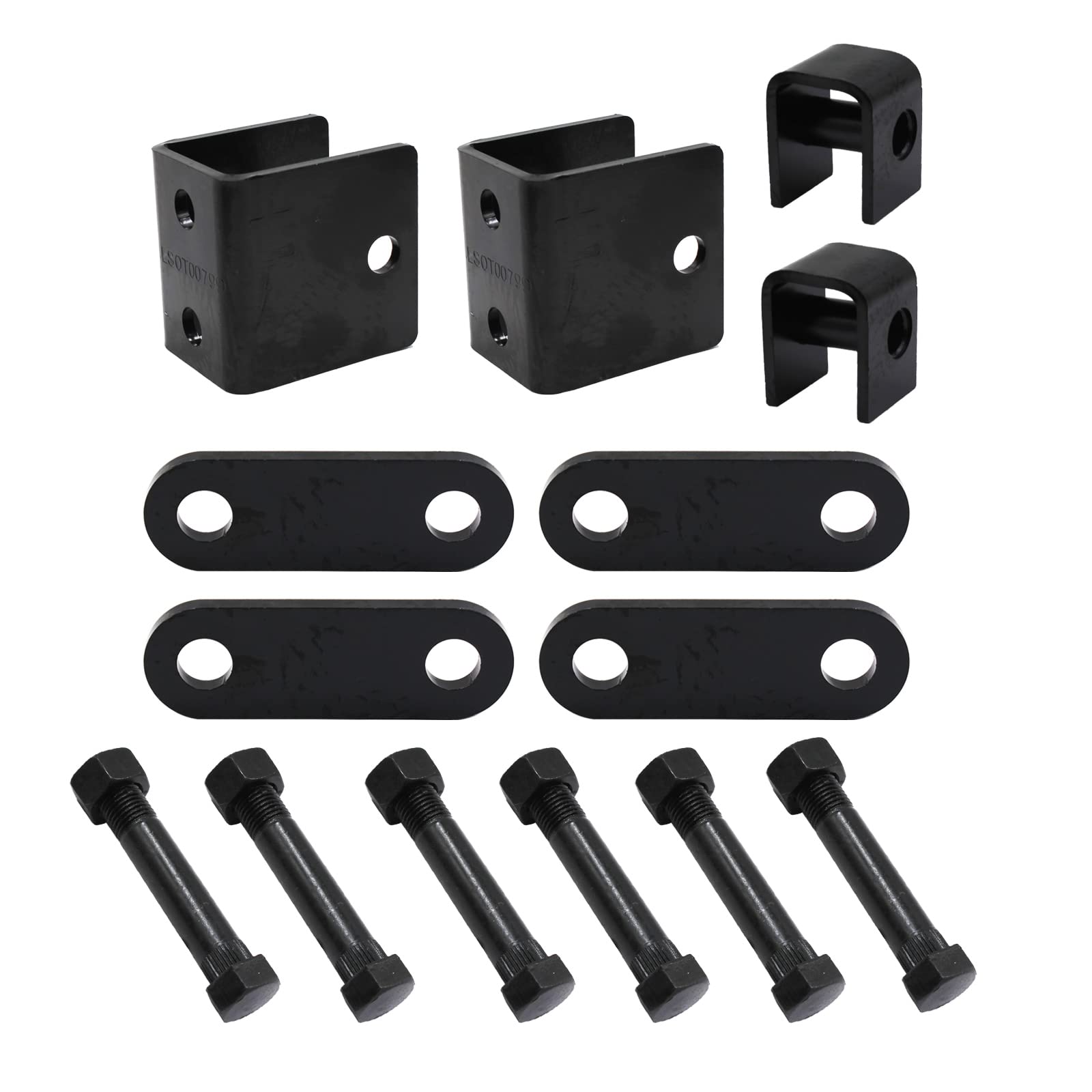

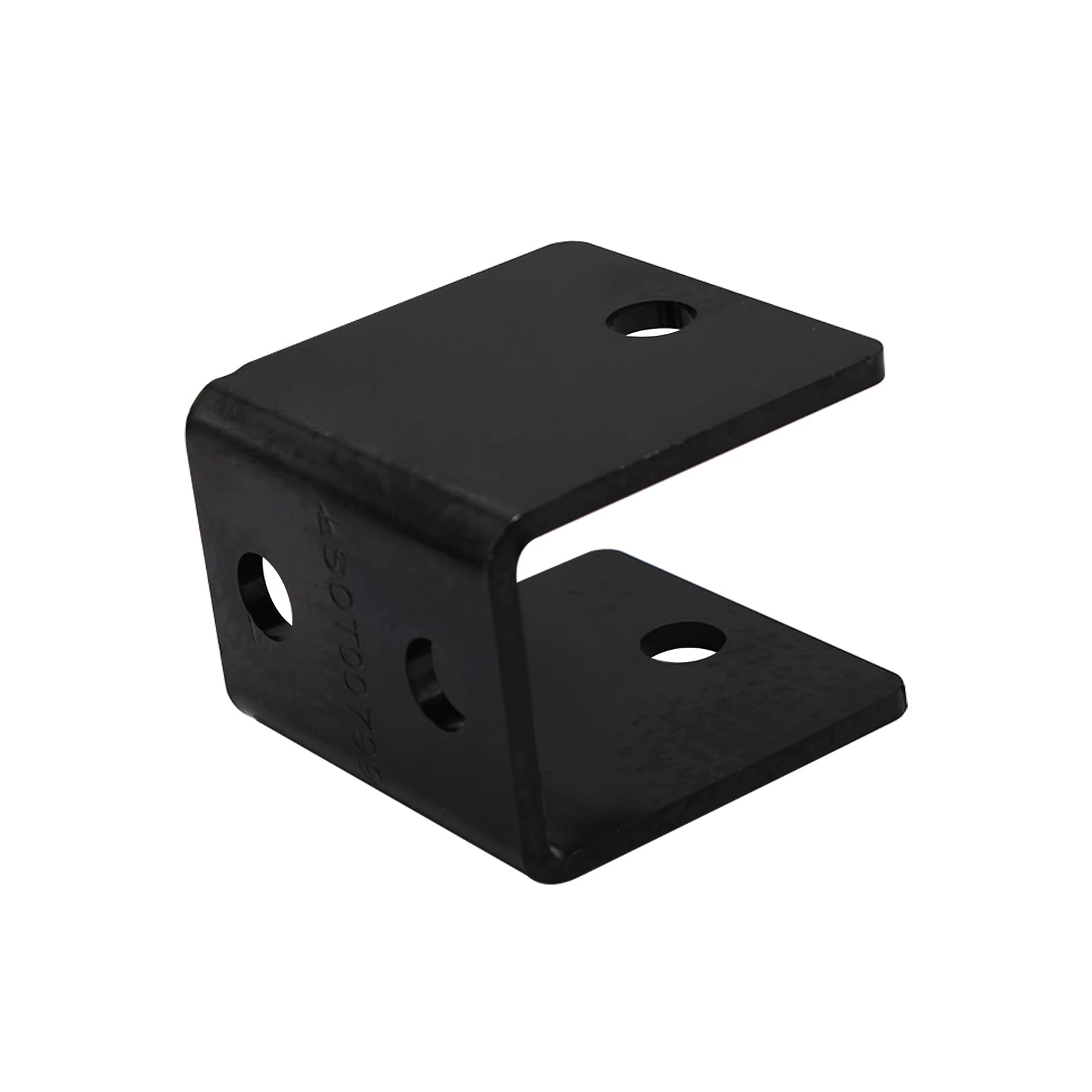

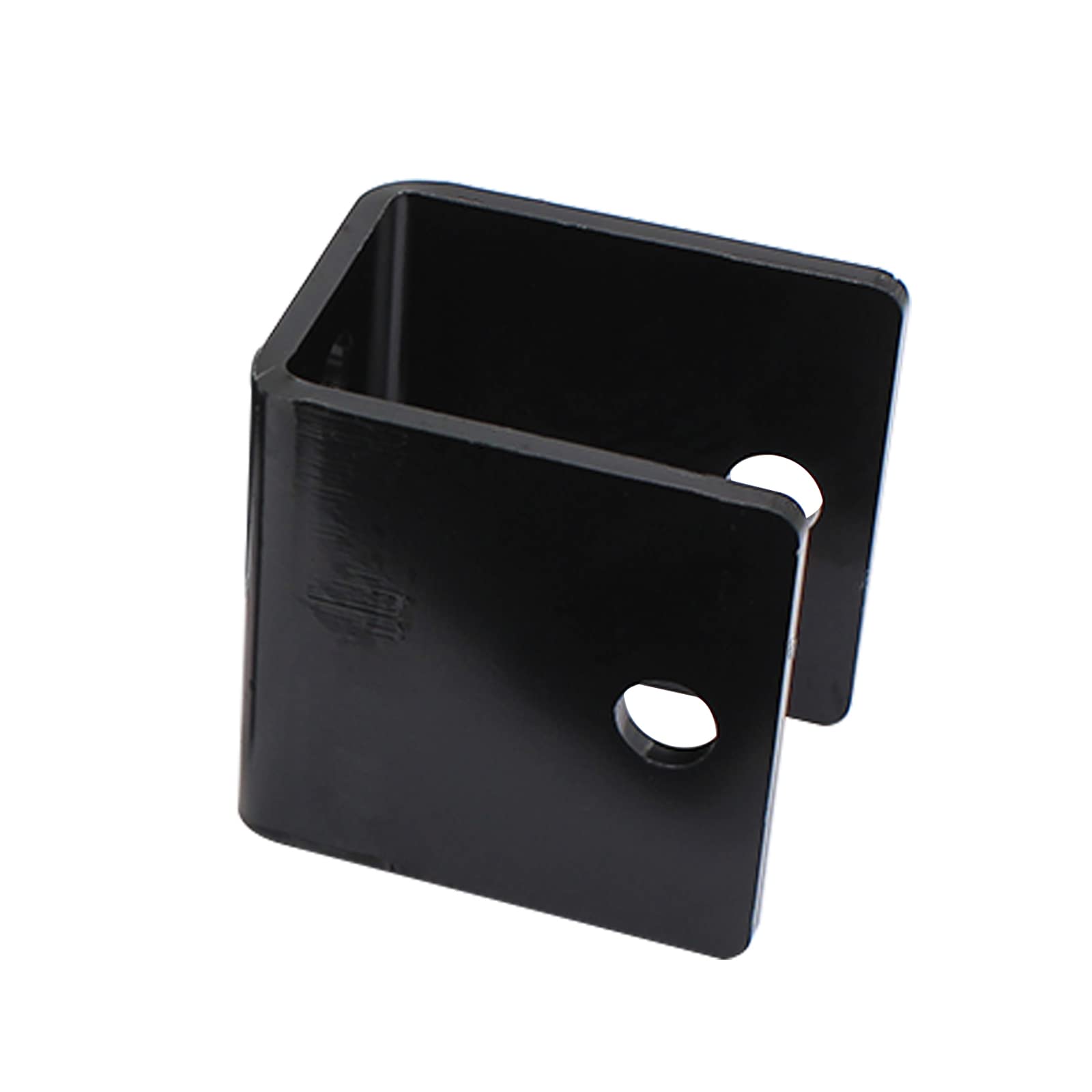

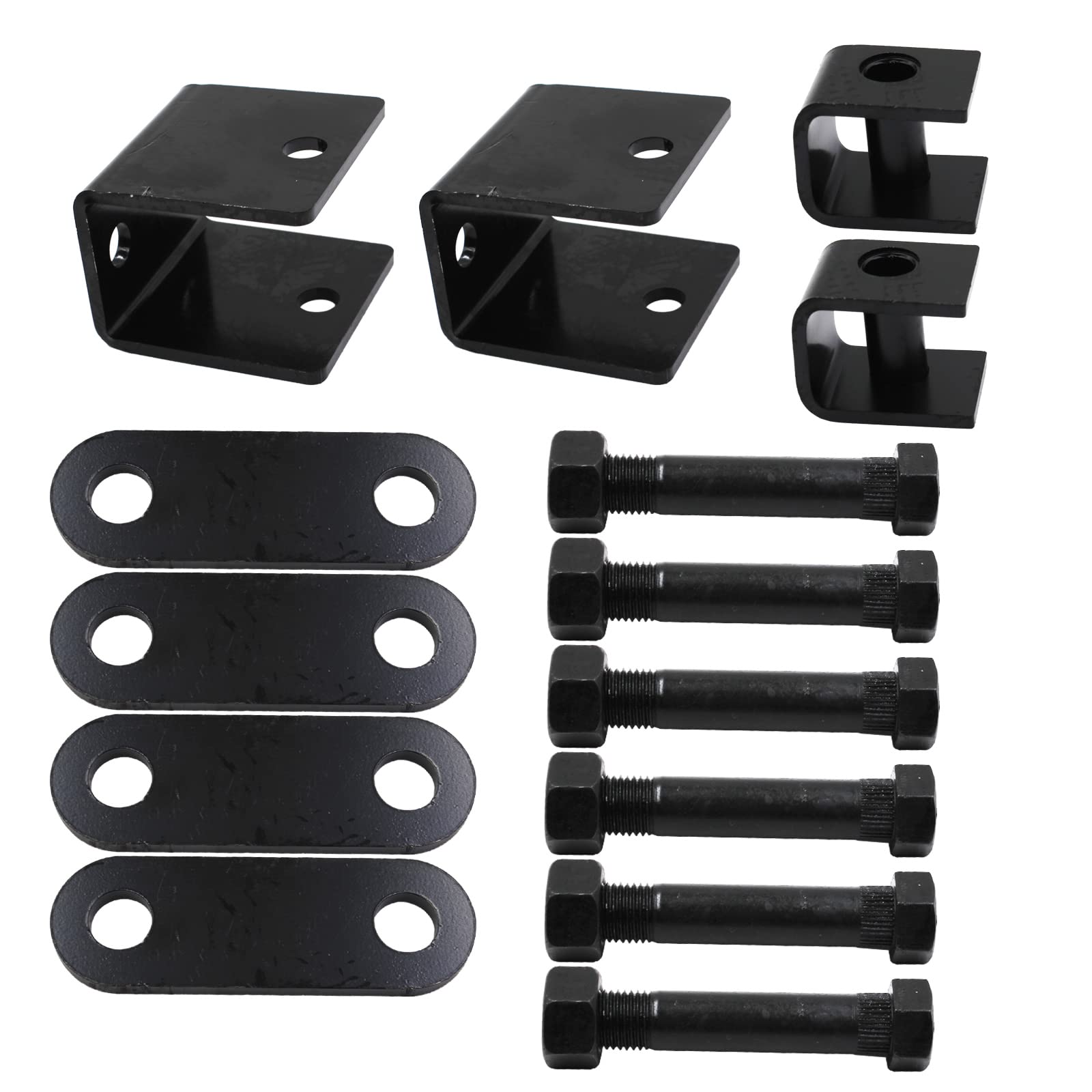

• 2 × 1-1/2" tall front hangers (frame-mounted)
• 2 × 7/8" tall rear hangers with steel bushings
• 4 × 3-1/8" long shackle straps

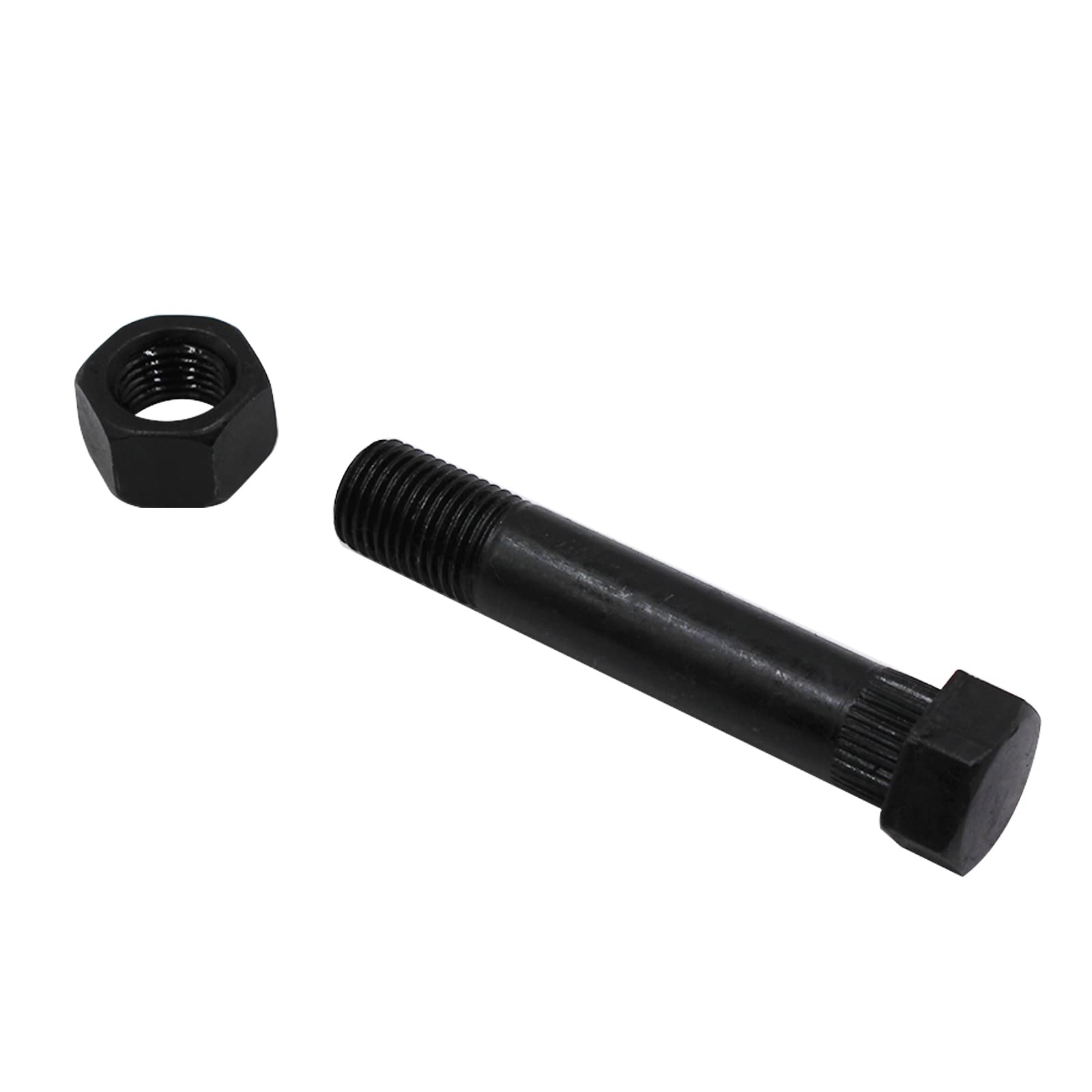

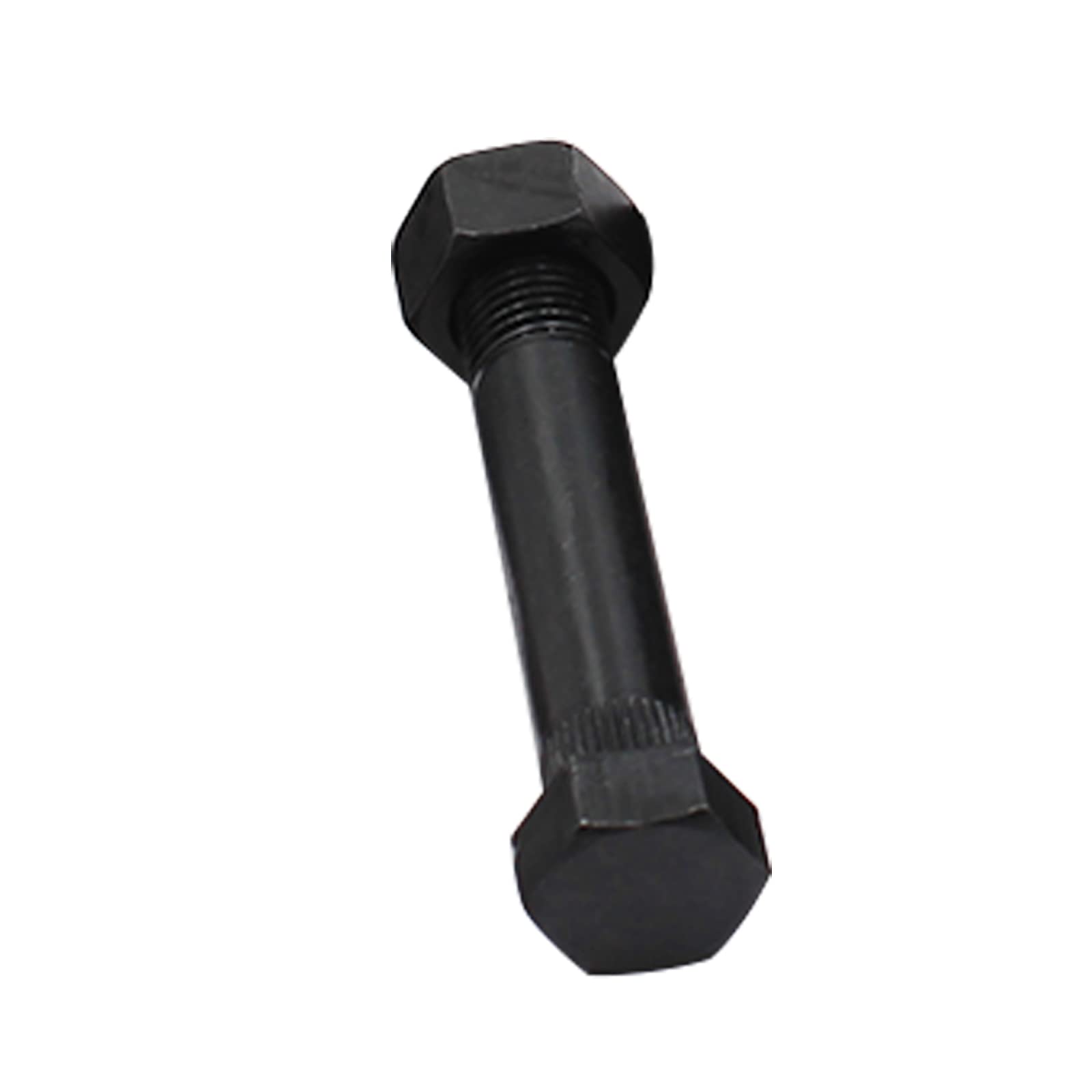

• 6 × 3" long shackle bolts (9/16" diameter)
• 6 × 9/16" lock nuts
• Designed for 1-3/4" wide leaf springs with 7/8" rear eye

Which trailers and axle ratings are compatible with this hanger kit?

Choose this kit for single-axle trailers whose axle and spring specifications fit the listed ranges. It is intended for trailers using double-eye leaf springs and axles rated between 2,000 lb and 7,000 lb; confirm spring width and eye diameter before purchasing.

• Compatible with single-axle trailers, 2,000–7,000 lb axle range
• Fits leaf springs 1-3/4" wide with 7/8" rear eye
• Not suitable for multi-axle trailers without additional hardware
• Does not include axle-to-spring mounting parts (u-bolts, spring seats)

How is the kit installed and what tools are typically required?

Installation mounts the front hanger to the frame, fits the rear hanger with its steel bushing at the spring eye, and connects shackle straps between rear hanger and spring using supplied bolts and lock nuts. Typical installation requires basic hand tools and welding or bolting to the frame depending on your trailer's design.

• Common tools: wrench set, socket set, torque wrench, drill or welder as needed
• Attach front hangers to frame; fit rear hangers and bushings to springs
• Use supplied 9/16" bolts and lock nuts for shackles; torque to manufacturer specs
• Professional installation recommended if unfamiliar with suspension work

What should I check before buying to ensure proper fit and safety?

Verify spring width and eye diameter, confirm your axle's rated capacity falls inside the kit’s range, and ensure you have or plan for the axle-mounting parts this kit omits. Accurate measurements and appropriate axle hardware are essential for a safe suspension installation.

• Measure leaf spring width (needs to be 1-3/4") and rear eye (7/8")
• Confirm trailer axle rating is between 2,000 and 7,000 lb
• Plan for separate axle-to-spring mounting components (u-bolts, spring seats)
• Inspect frame mounting points for welding or bolting readiness

Who is this for: The LAFORMO Single-Axle Trailer Hanger Kit is aimed at trailer builders, restoration projects, and owners upgrading or repairing single-axle suspensions that use double-eye leaf springs. It's a focused hardware package for people who need frame-to-spring connectors—DIYers with mechanical skill, professional trailer shops, and anyone replacing worn hangers on trailers rated 2,000–7,000 lb. If you need a complete axle installation, pair this kit with appropriate axle-to-spring mounting hardware.
