Apaspoil Transom Trolling Motor Mount for Kayaks — Gloss Black, 5mm Marine Steel, 3 HP/70 lb

Apaspoil Universal Transom Trolling Motor Mount is a heavy-duty, marine-grade bracket that secures electric trolling motors up to 3 HP (70 lb thrust) to flat-stern kayaks and small boats.

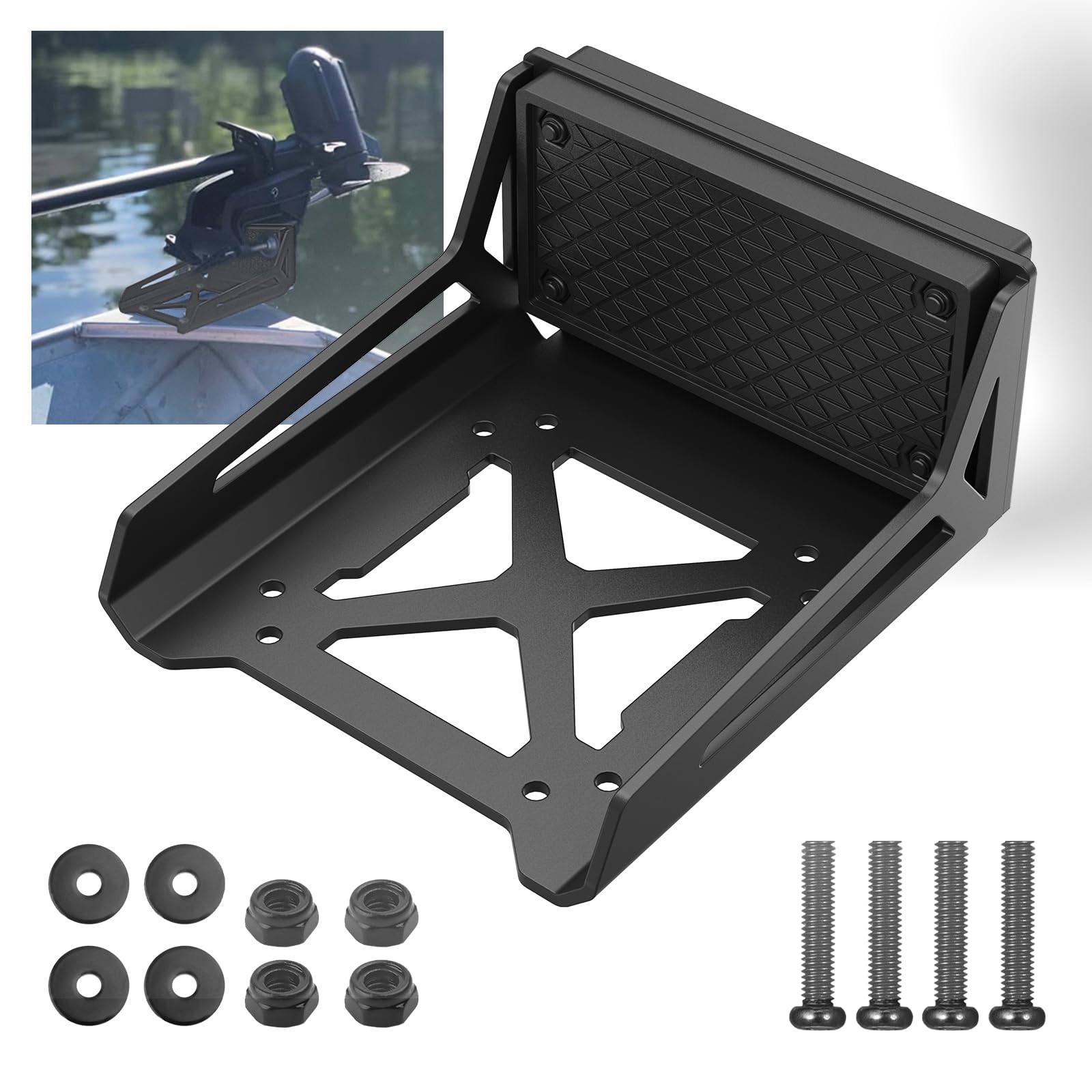

This transom mount is built from 5 mm marine-grade steel with a gloss black powder coat, designed to resist corrosion in freshwater and saltwater. It uses a versatile bolt pattern to match common trolling motor and micro power pole layouts, includes replaceable nylon panels to damp vibration, and installs with basic tools in a few straightforward steps. The design combines a reinforced triangular frame and anti-slip locking lip to keep motors steady through typical paddling and trolling conditions.

How does this mount adapt to different motor bolt patterns?

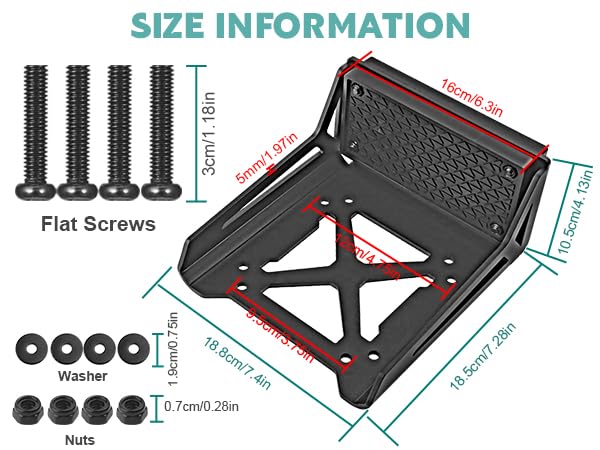

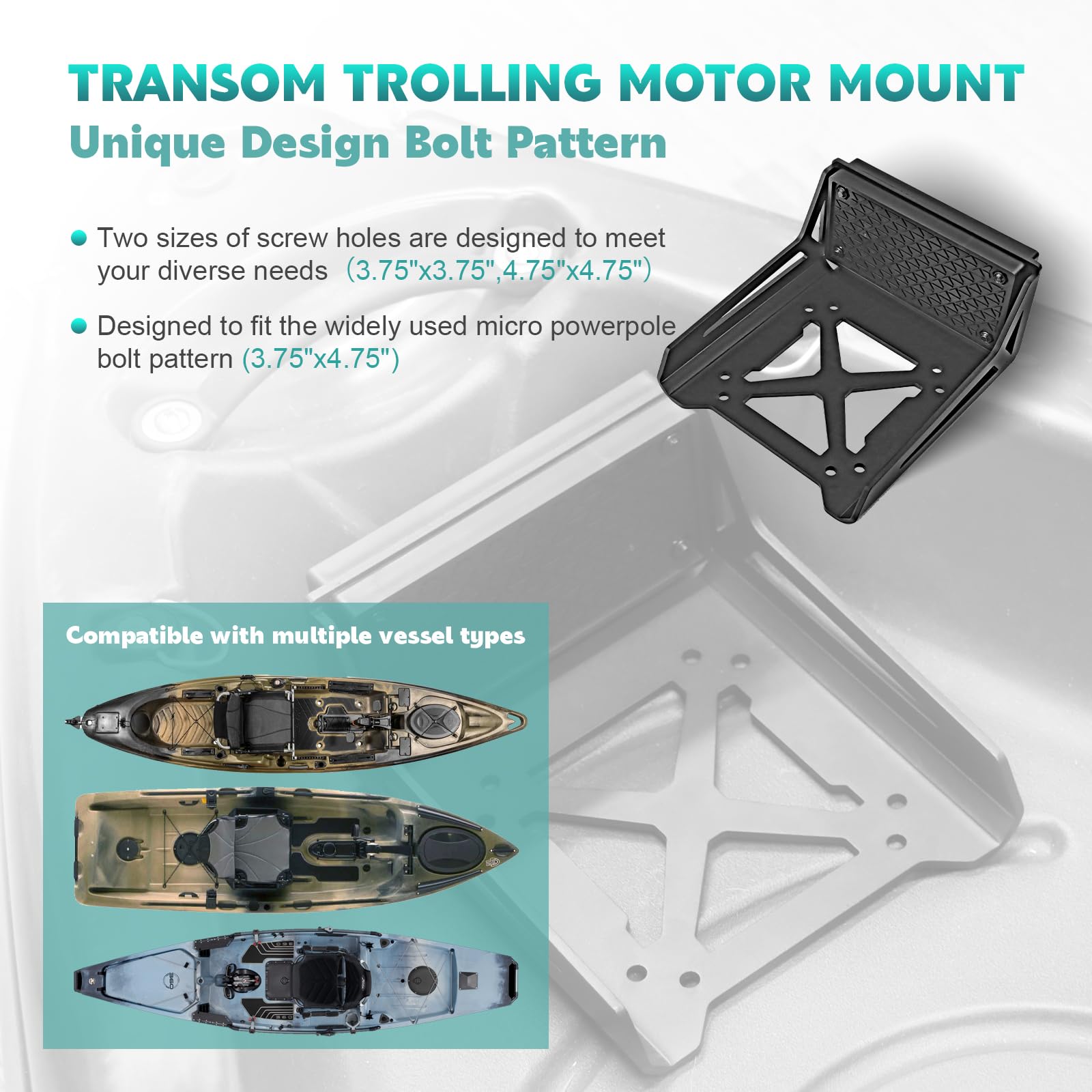

The mount features two sizes of screw-hole spacing—3.75" and 4.75"—and supports three combined patterns (3.75"x3.75", 4.75"x4.75", 3.75"x4.75"). That flexibility makes it compatible with many popular electric trolling motors and the micro-power pole bolt layout. You can choose one hole spacing or use the combined pattern to match your motor plate precisely.

• Two hole spacings: 3.75" and 4.75"
• Supports three hole-pattern configurations
• Fits common micro power pole bolt pattern (3.75"x4.75")
• Works only with electric trolling motors (not outboard engines)

Will it withstand saltwater and heavy use?

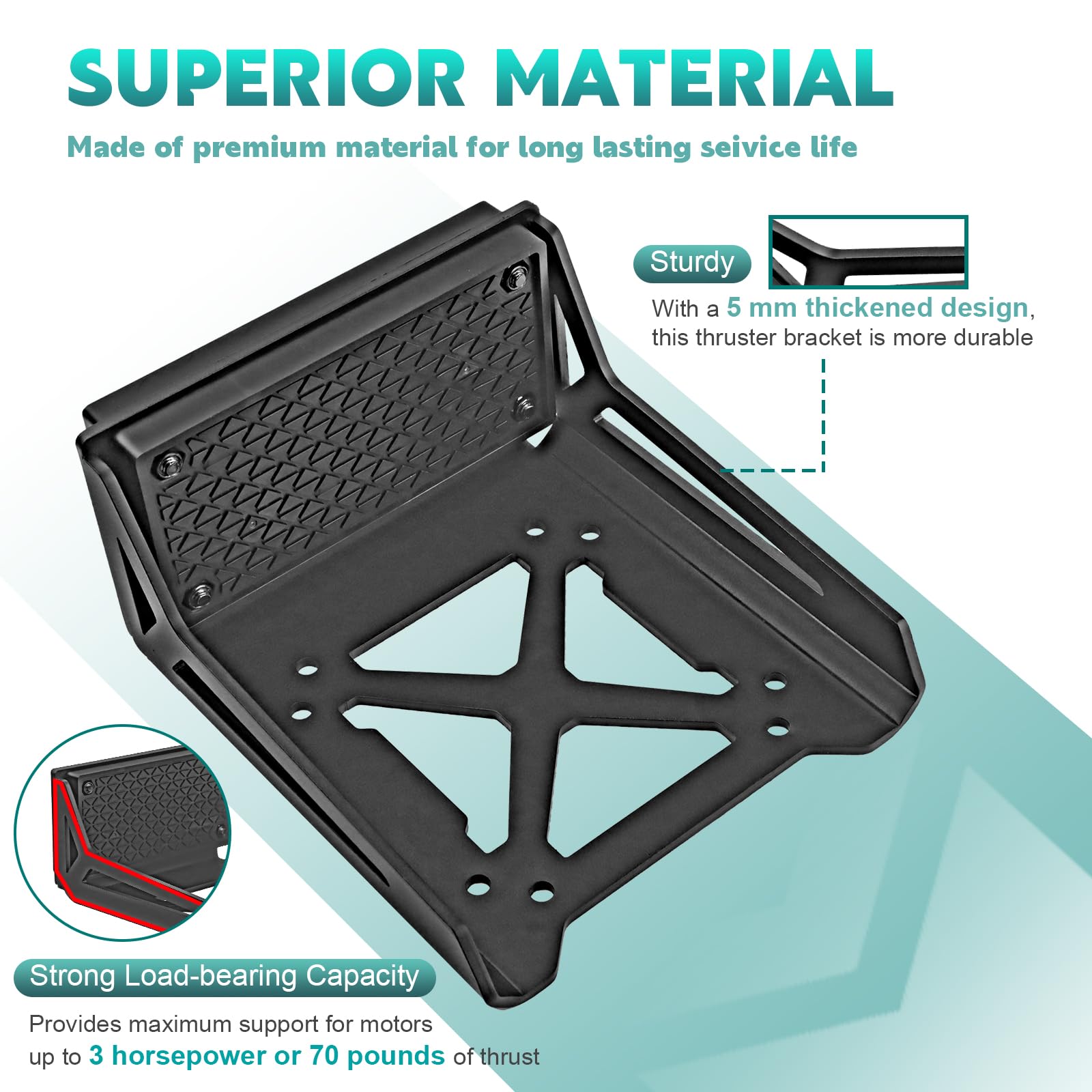

Yes—construction uses 5 mm thick marine-grade steel and a durable gloss powder coat that provides corrosion resistance for both freshwater and saltwater environments. The full-cast steel frame and triangular reinforcement minimize flex and vibration under load. Replaceable UV-resistant nylon panels further protect the motor mount and reduce wear from constant contact.

• 5 mm marine-grade steel construction
• Gloss black powder-coating for corrosion protection
• UV-resistant nylon panels included (2 pack)

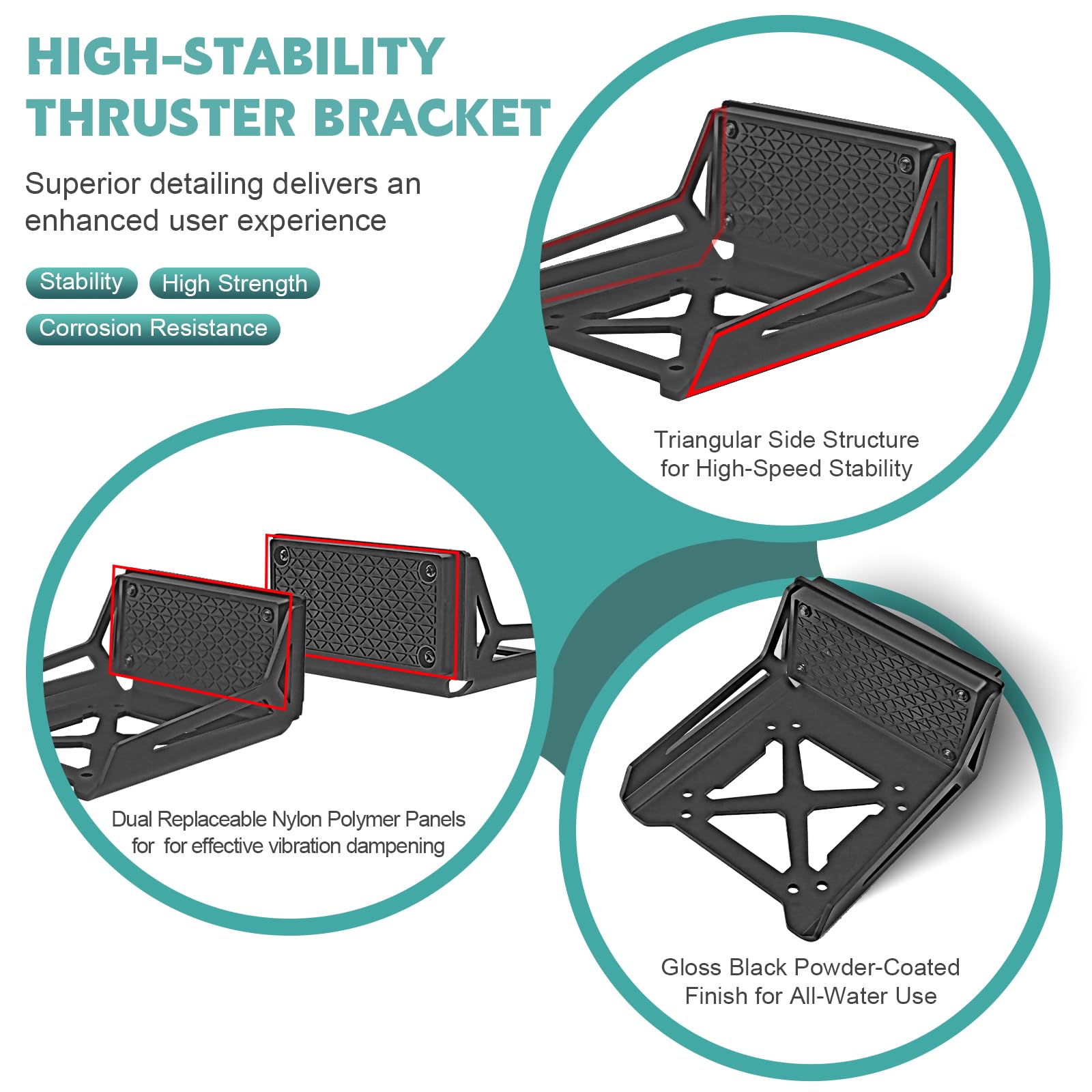

• Reinforced anti-slip lip for secure hold in choppy water

How much motor weight and thrust can this bracket support?

The bracket is engineered to support electric trolling motors up to 3 horsepower or 70 pounds of thrust, which covers the majority of small-boat and kayak trolling setups. The robust full-cast steel body plus the triangular support frame distributes load evenly to reduce stress on the transom. For heavier outboard engines, a dedicated outboard mount is required—this product is for electric motors only.

• Rated for up to 3 HP or 70 lb thrust
• Triangular frame reduces vibration and flex
• Not suitable for outboard engines of any size
• Even load distribution protects kayak transoms

How simple is installation and upkeep?

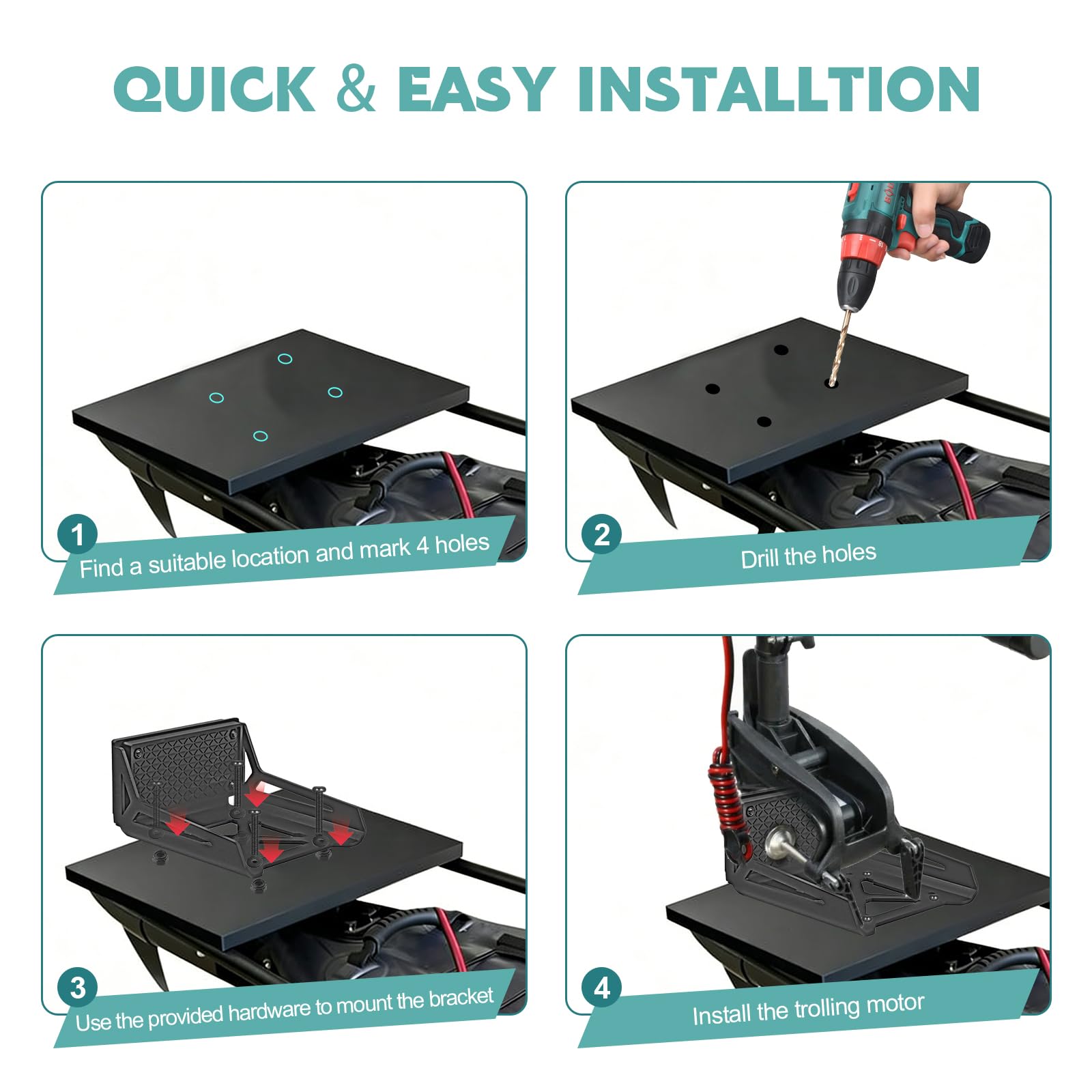

Installation is designed to be straightforward: mark holes, drill, fasten the bracket with the supplied hardware, and mount the motor. The replaceable nylon panels slide in quickly, making maintenance fast and affordable. Routine checks of mounting bolts and panel condition will keep the bracket performing reliably season after season.

• Basic four-hole installation—mark, drill, fasten, mount
• Supplied hardware for quick setup
• Replaceable nylon panels for easy upkeep
• Simple visual checks extend service life

Who is this for: The Apaspoil Universal Transom Trolling Motor Mount suits kayak anglers, small-boat owners, and anyone who wants a dependable, corrosion-resistant bracket for electric trolling motors up to 3 HP. It’s ideal for flat-stern kayaks, small aluminum boats, and recreational craft that require a sturdy, versatile mounting solution with easy installation and low maintenance.
