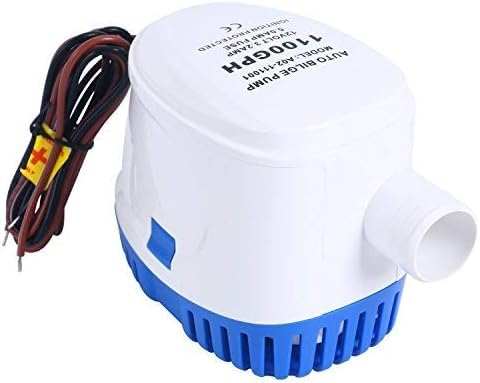

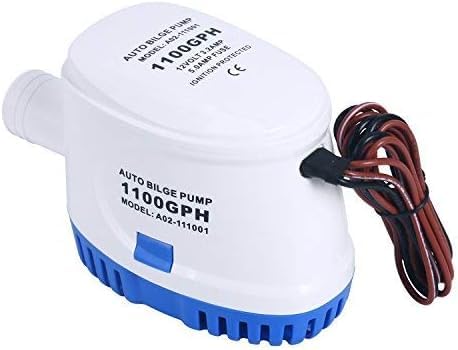

Amarine Made 12V 1100 GPH Submersible Bilge Pump with Internal Float Switch — Ignition-Protected, Corrosion-Resistant

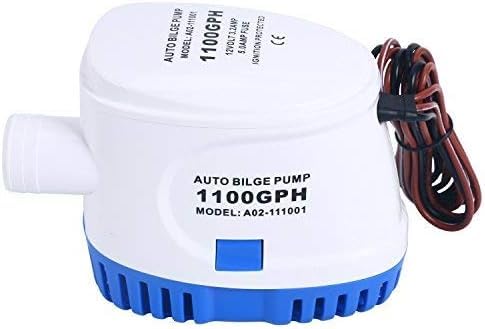

The Amarine Made 12V 1100 GPH Auto Submersible Bilge Pump is a compact, ignition-protected marine pump with an internal float switch that automatically removes bilge, basement, or standing water.

This compact automatic pump combines a high-output 1100 GPH rating with a built-in float switch and corrosion-resistant construction, making it suitable for boats, emergency sump tasks, and general water removal. It runs on 12V, draws only 3.2A, and is designed for long life with a water-cooled motor and stainless-steel shaft.

How does this pump activate and stop on its own?

The pump uses an internal float switch and an electronic reed sensor to detect rising water. When the water reaches the trigger point, the motor runs; once the level drops below the shutoff point, it stops — no external float needed.

• Built-in float switch: automatic on/off

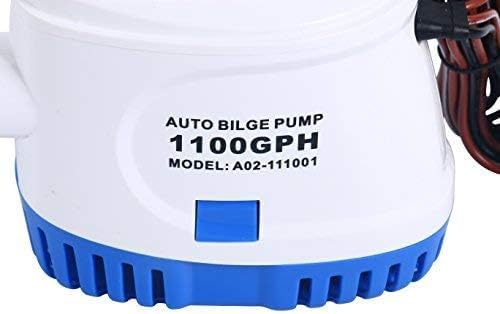

• Integrated test button allows quick function checks
• Electronic reed sensor prevents false activations
• Can be wired to a manual switch panel for override

What are the performance specs and typical output?

This model delivers up to 1100 gallons per hour at 12V while drawing about 3.2 amps, providing fast removal of standing water in tight spaces. The pump can handle a 4.0-meter head and has a 29mm (1-1/8") outlet for common marine hoses.

• Flow rate: 1100 GPH
• Voltage: 12V DC, current: 3.2A
• Maximum head: 4.0 meters

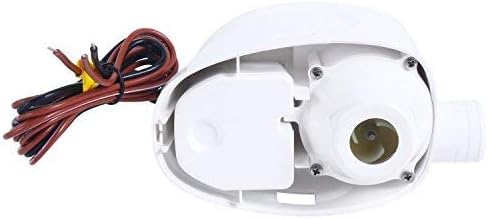

• Outlet diameter: 29mm (1-1/8") and 1M wire lead

Is it durable and suitable for saltwater use?

The pump is built from rustproof materials with a stainless-steel shaft and high-impact thermoplastic housing to resist corrosion. Water-cooled motors, moisture-tight seals, and anti-airlock protection extend service life in both saltwater and freshwater environments.

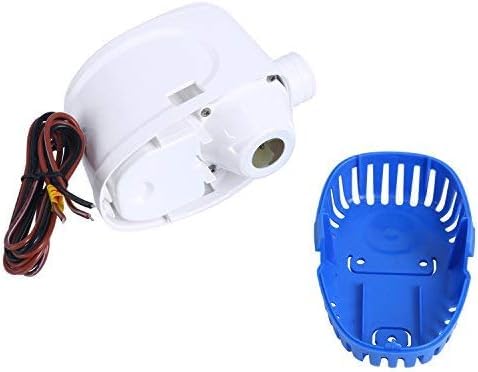

• Corrosion-resistant stainless steel shaft
• High-impact thermoplastic ABS housing
• Water-cooled motor and moisture-tight seals
• Anti-airlock and dry-run protection

How easy is maintenance and installation?

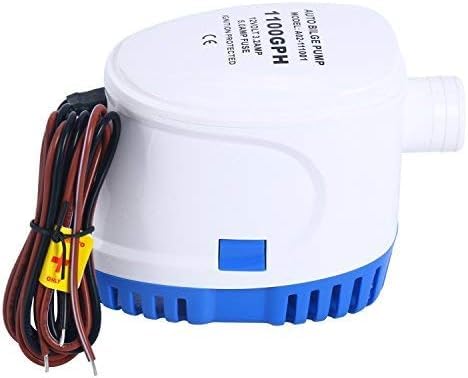

Installation is straightforward with a 1M wire lead and standard outlet size. Routine upkeep is simplified by a quick-release strainer and snap-off screen so debris can be removed without disassembling the unit.

• Quick-release strainer for fast cleaning

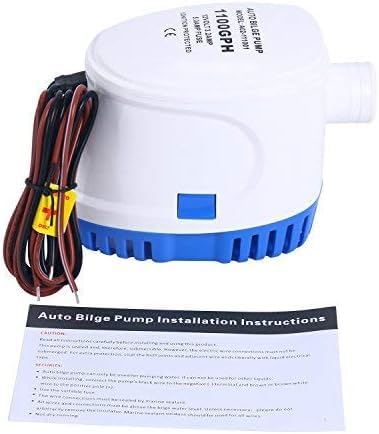

• Included wiring diagram and installation manual
• Integrated test button for functional checks
• Ignition-protected design for marine wiring safety

Who this is for: The Amarine Made 12V 1100 GPH automatic submersible pump is aimed at boat owners who need a reliable bilge solution, homeowners seeking a compact emergency sump or flood pump, and DIYers who want a low-current, high-capacity unit that resists corrosion. If you need an automatic, easy-to-install pump with a built-in float switch and durable construction for saltwater or freshwater use, this model is a practical, cost-effective choice.
