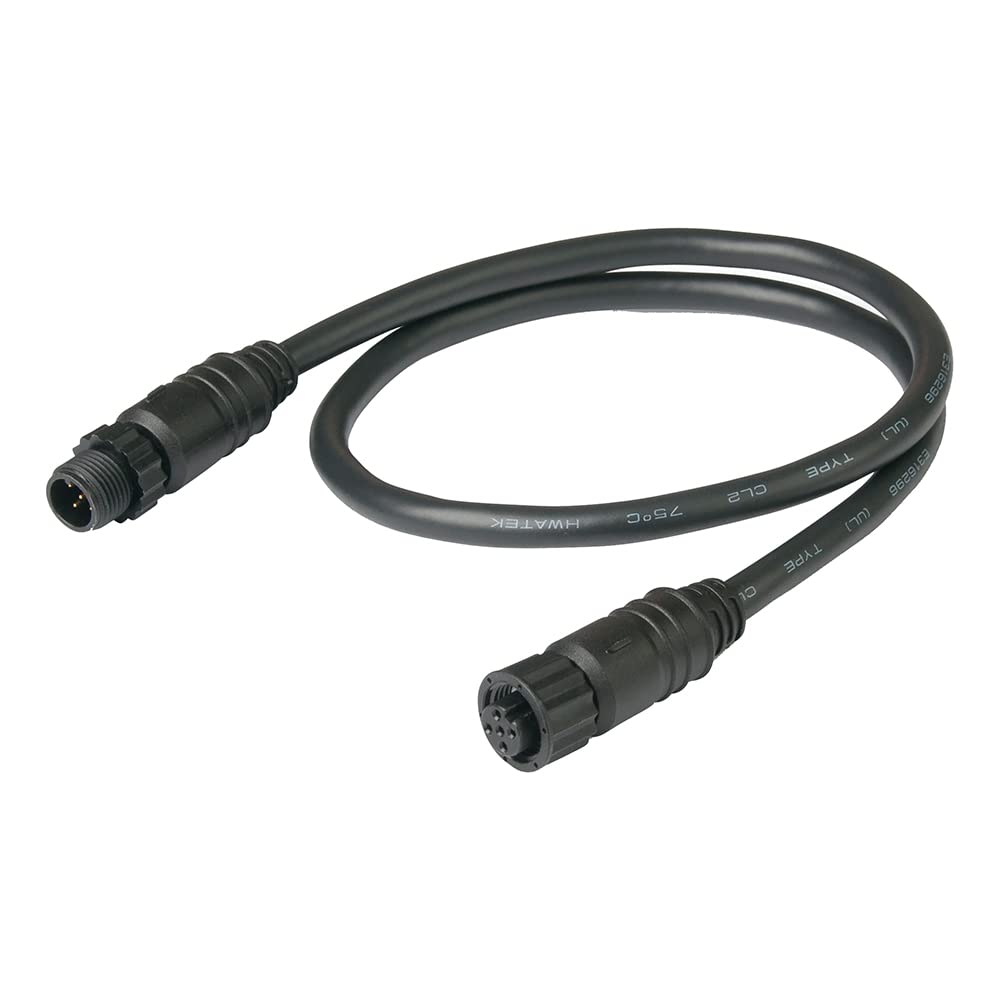

Ancor NMEA 2000 Drop Cable 1 m — flexible 22 AWG with color‑coded conductors and locking nut

Ancor 270301 is a 1-meter NMEA 2000-certified drop cable that links an NMEA 2000 device to a tee connector using color-coded, flexible wiring for tidy marine network installations.

Designed for boat electronics networks, this 1 m drop cable provides the final connection between instruments or sensors and the main NMEA 2000 backbone. Its smaller-diameter construction and flexible 22 AWG power conductors make routing simple in tight spaces, while the black locking nuts mate cleanly with Ancor tee connectors. The cable conforms to NMEA 2000 certification so it interoperates with compatible products from other manufacturers.

How does this drop cable simplify NMEA 2000 installations?

The 1 m Ancor drop cable reduces clutter and simplifies connections by using a smaller, more flexible jacket than backbone wiring. Its color-coded conductors help you match signals quickly, and the black threaded nut locks into compatible tees to secure the device connection.

• Smaller diameter makes routing behind panels easier
• Color-coded conductors reduce wiring mistakes
• Black locking nut fastens to Ancor tees for reliable contact
• Flexible 22 AWG power conductors accommodate tight bends

Is the Ancor 270301 compatible with other NMEA 2000 equipment?

Yes — the cable is NMEA 2000 Certified and built to the standard pinout and wiring scheme, so it is universally compatible with other certified devices and manufacturers' components. Use it wherever a standard drop length of one meter fits your layout.

• NMEA 2000 certification ensures standard compatibility
• Standard pinout aligns with third-party devices and tees
• Works with Ancor and other certified NMEA 2000 networks

What installation benefits come from the cable’s construction?

The cable’s flexible 22 AWG power conductors and slender jacket lower installation effort by allowing easier bending and tighter routing paths. This reduces strain on connectors and keeps the installation neat while preserving signal integrity for devices connected to the network.

• 22 AWG power conductors balance flexibility and current capacity
• Thin jacket decreases bulk behind instrument panels
• Flexible build minimizes stress on plugs and tees

Which device locations are best suited to a 1-meter drop cable?

A 1 m length is ideal for instruments or sensors mounted near the backbone tee where a short, tidy run is preferred. It’s particularly useful for displays, GPS units, depth sounders, and other devices that are accessible but not immediately adjacent to the backbone run.

• Pantry: short runs from backbone to helm instruments
• Cabin: tidy connections to interior sensors and displays
• Deck boxes: moderate-distance device hookups without excess cable

Who is this for: Boat owners, marine installers, and electronics technicians who need a certified, flexible, and color-coded 1-meter connection between an NMEA 2000 device and a tee connector. It’s aimed at anyone fitting instruments in confined spaces who wants a reliable, industry-standard drop cable that integrates with existing NMEA 2000 systems.
