DIHOOL 125 Amp Battery Disconnect Switch heavy-duty thermal-magnetic panel-mount for car, marine, RV power protection

DIHOOL 125 Amp Heavy Duty Battery Disconnect Switch is a thermal-magnetic DC circuit breaker that isolates batteries and protects high-current automotive, marine, RV and solar systems from overloads and short circuits.

This compact, panel-mount switch combines a reliable thermal-magnetic trip mechanism with silver-enriched contacts to deliver consistent performance where high currents and mission-critical power control matter. Sized to fit standard panels and rated across both 12–250V DC and 90–240V AC ranges, it’s designed for use in car audio systems, trolling motors, RV power bays, marine boats, solar arrays, UPS racks and datacenter backup circuits.

How does this switch protect my vehicle or boat electrical system?

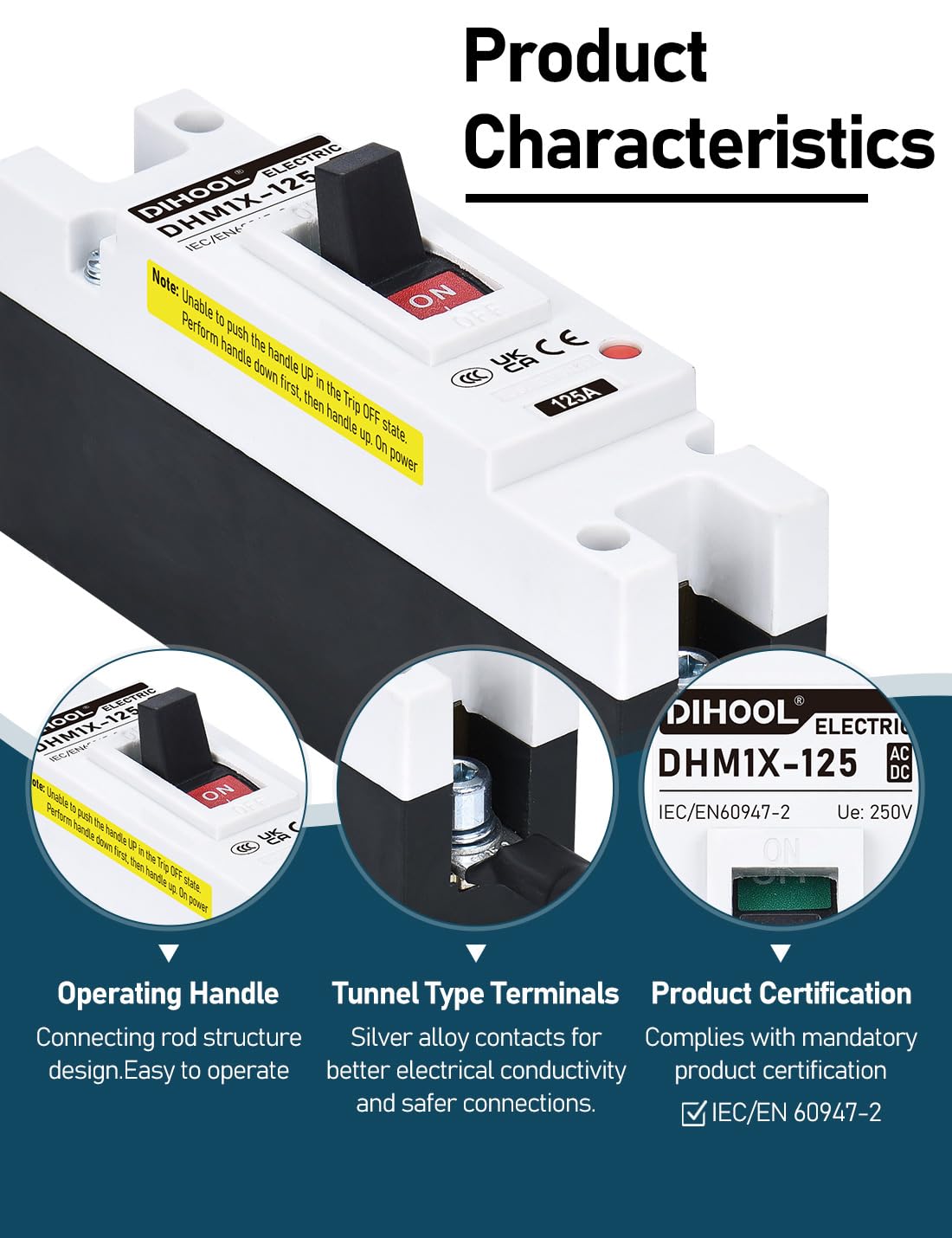

The DIHOOL switch interrupts fault currents using a thermal-magnetic trip element that responds quickly to short circuits and sustained overloads. Built with high silver content contact surfaces, it resists arcing and maintains low contact resistance over many cycles, improving reliability under heavy loads.

• Thermal-magnetic trip design for overload and short-circuit interruption
• 30% silver in moving contacts, 45% silver in stationary contacts for improved conductivity
• Short-circuit breaking capacity up to 25kA for robust fault handling
• Panel-mount form factor sized 150 × 86 × 38 mm for secure installation

Can I use this breaker with solar panels, batteries, and inverters?

Yes — the breaker’s DC rating (12–250V) and AC rating (90–240V) make it suitable for many off-grid and hybrid systems. It functions as both a protective device and an isolation switch, simplifying maintenance and providing a clear mechanical disconnect point when working on battery banks or inverter connections.

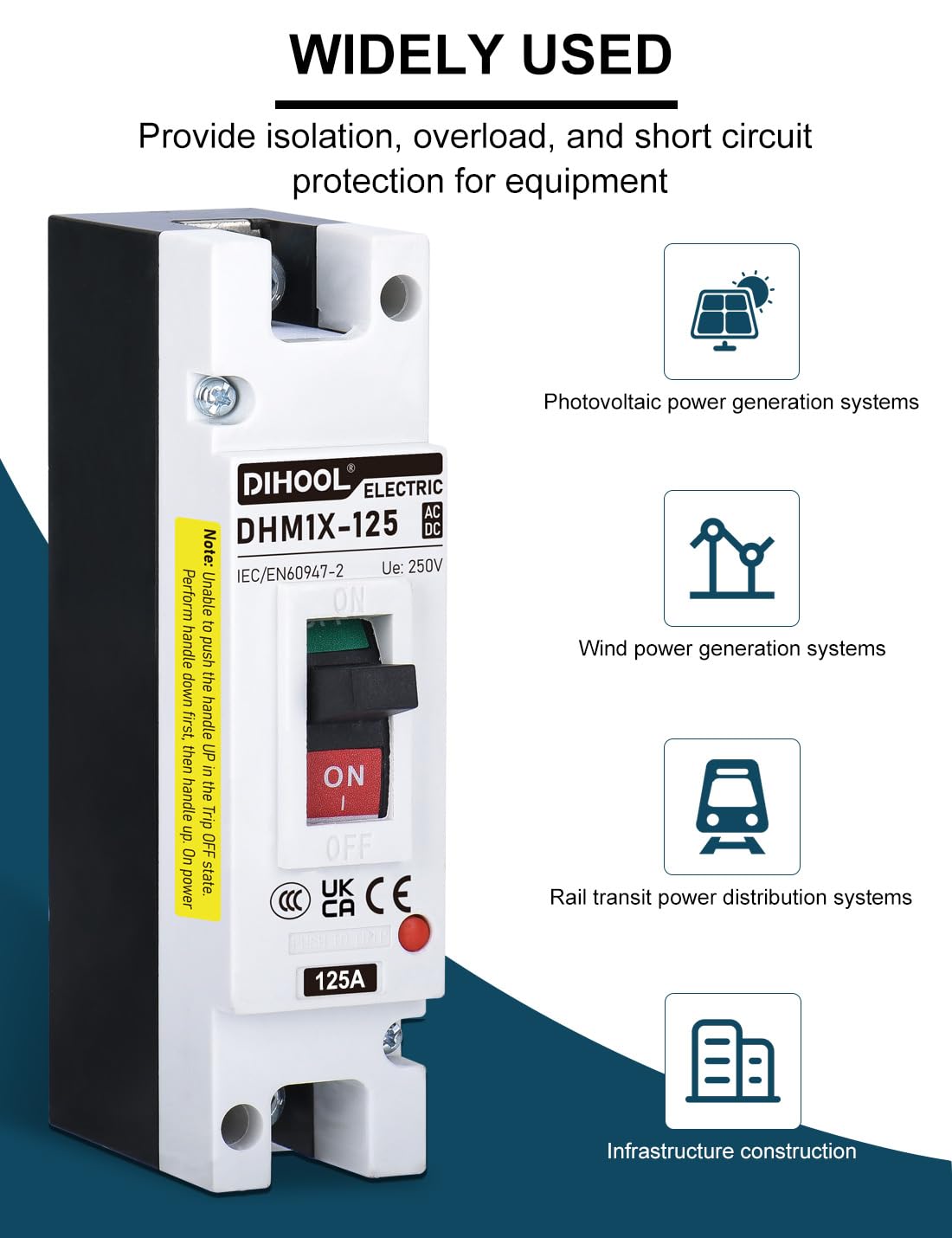

• Compatible with photovoltaic arrays, battery banks and UPS systems

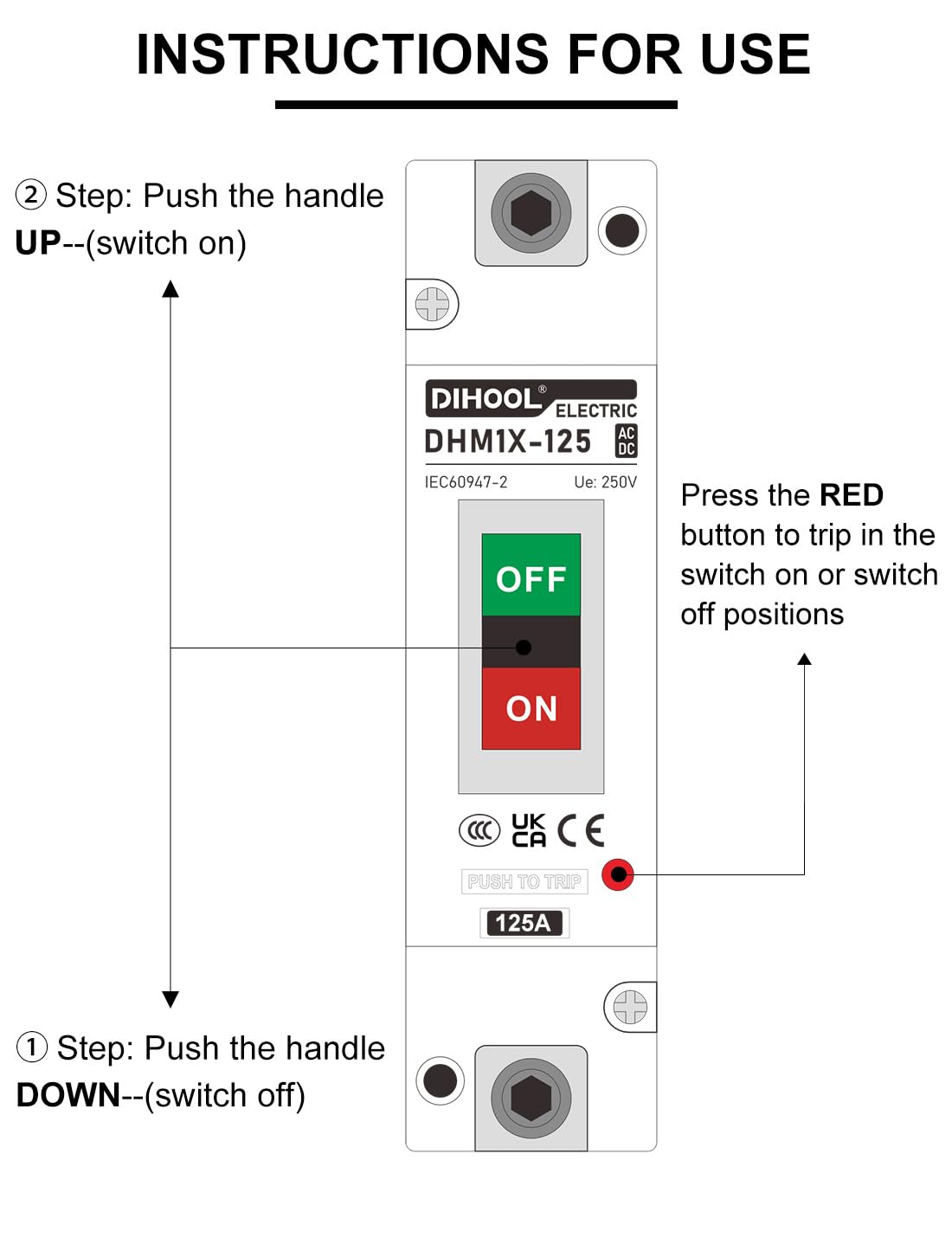

• Acts as an isolation switch for safe maintenance and troubleshooting
• High breaking capacity supports inverter surge currents and fault events

What are the installation and physical details I should know?

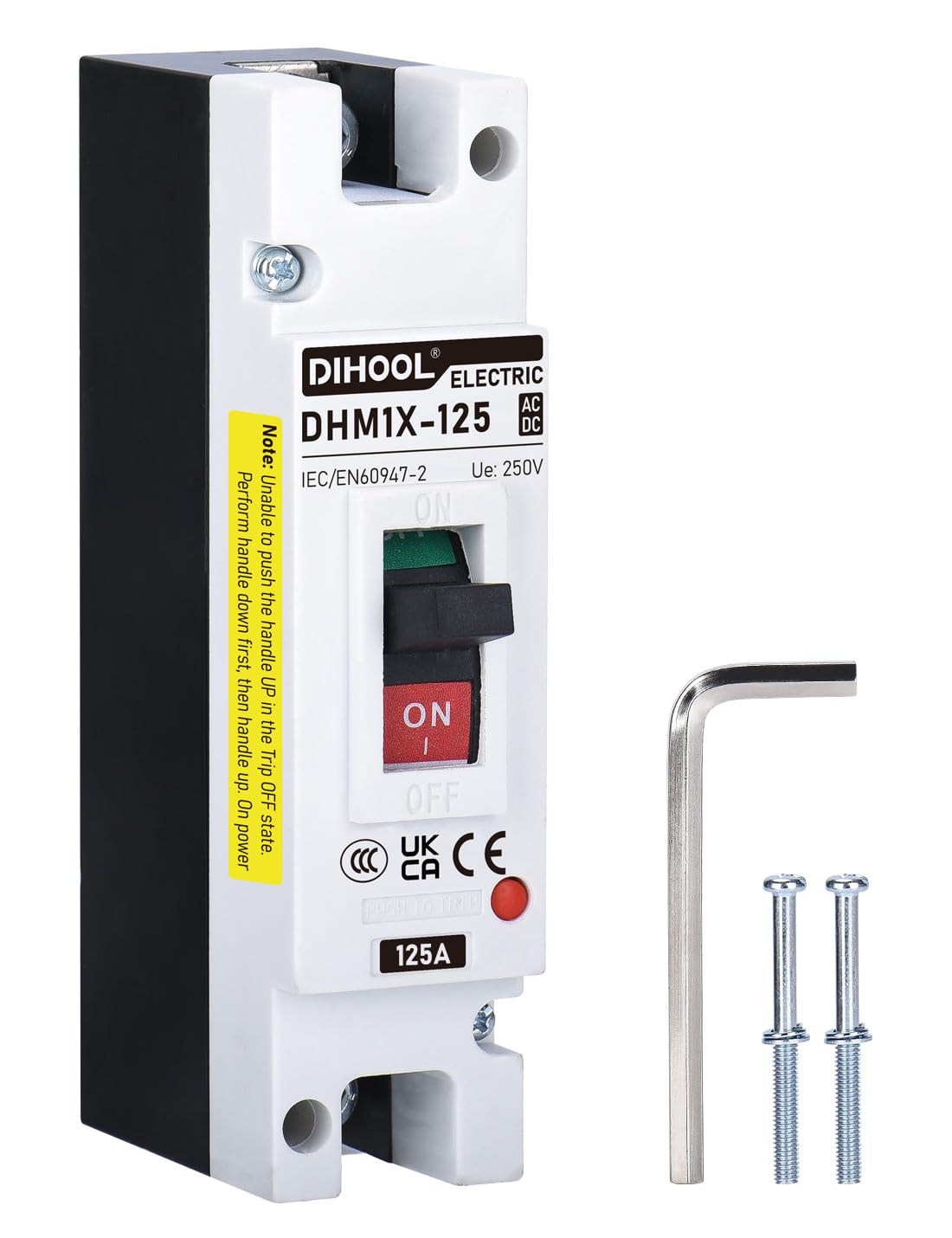

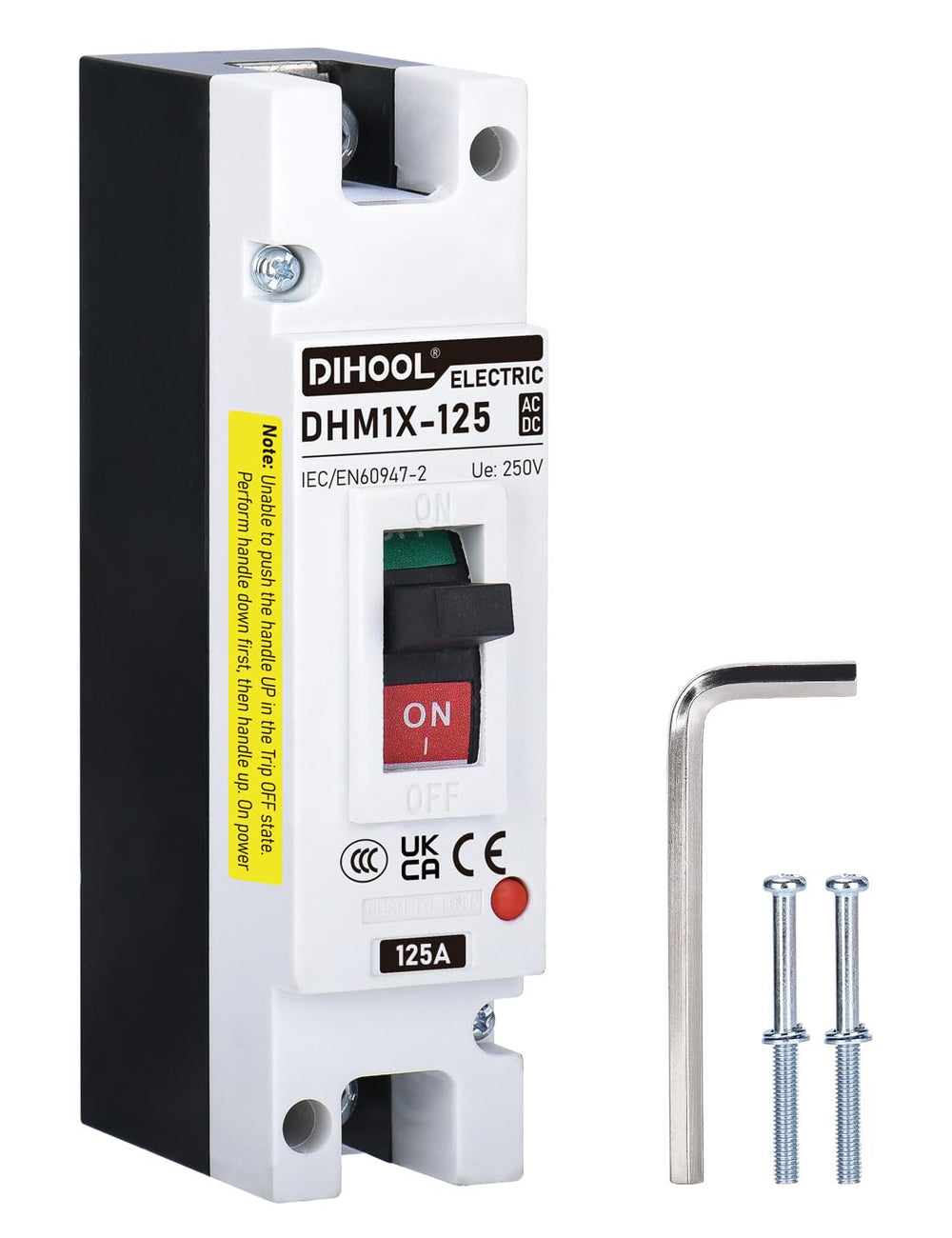

The DIHOOL unit mounts through a panel using screws and requires straightforward wiring to battery and load terminals. Its compact dimensions allow it to be fitted into distribution panels, engine bays, or equipment racks where space is limited but high-current protection is needed.

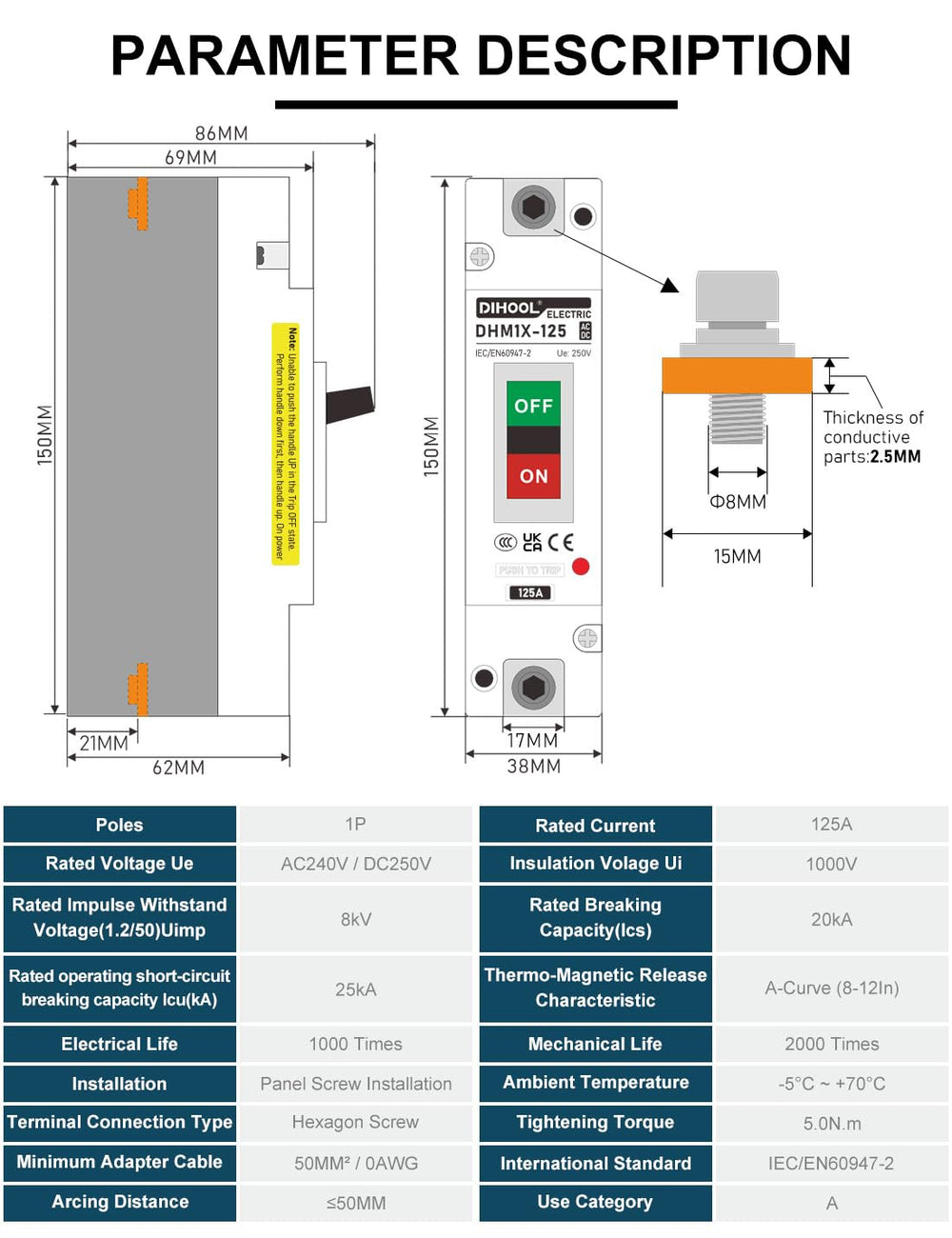

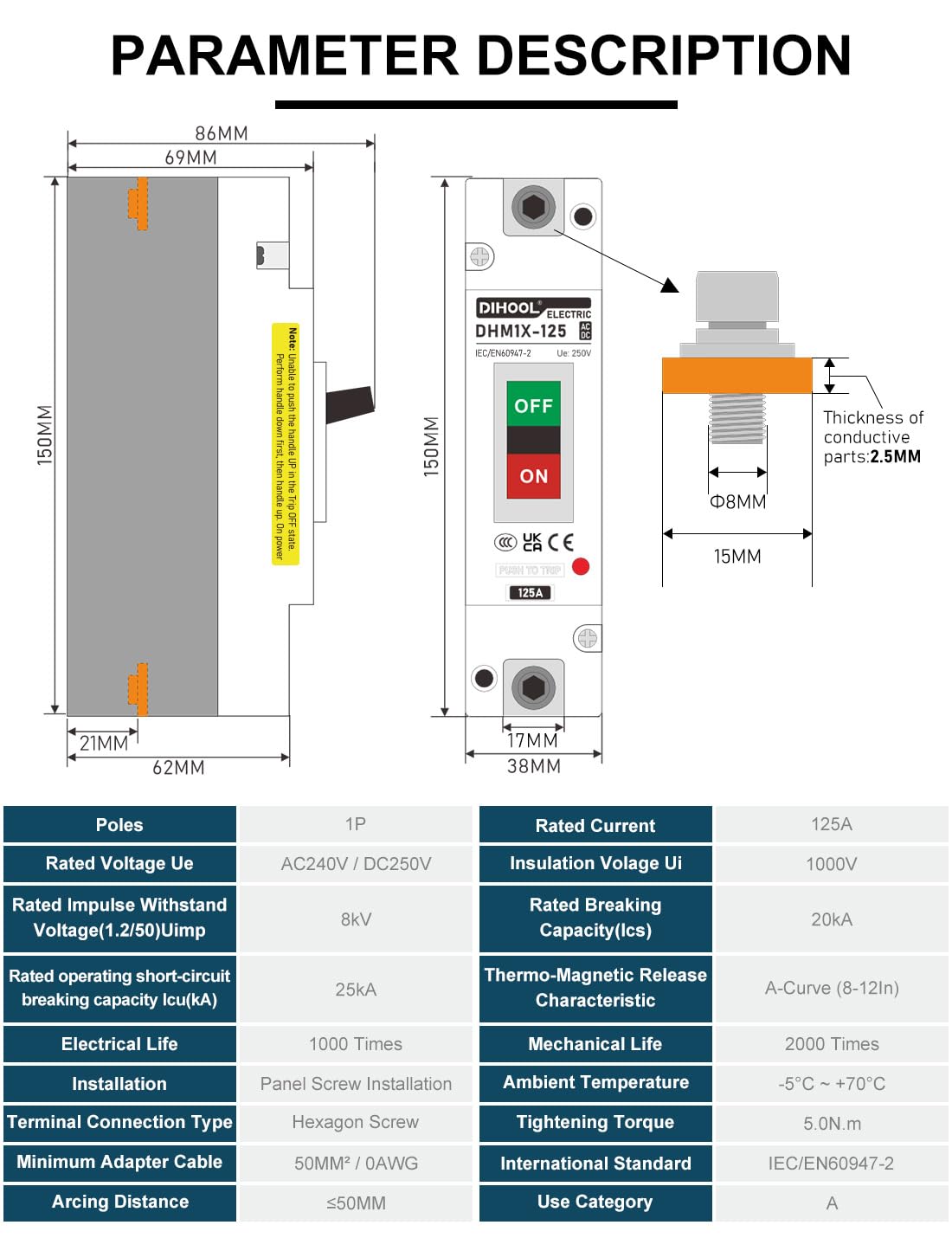

• Dimensions: 150 mm × 86 mm × 38 mm for panel-mount integration

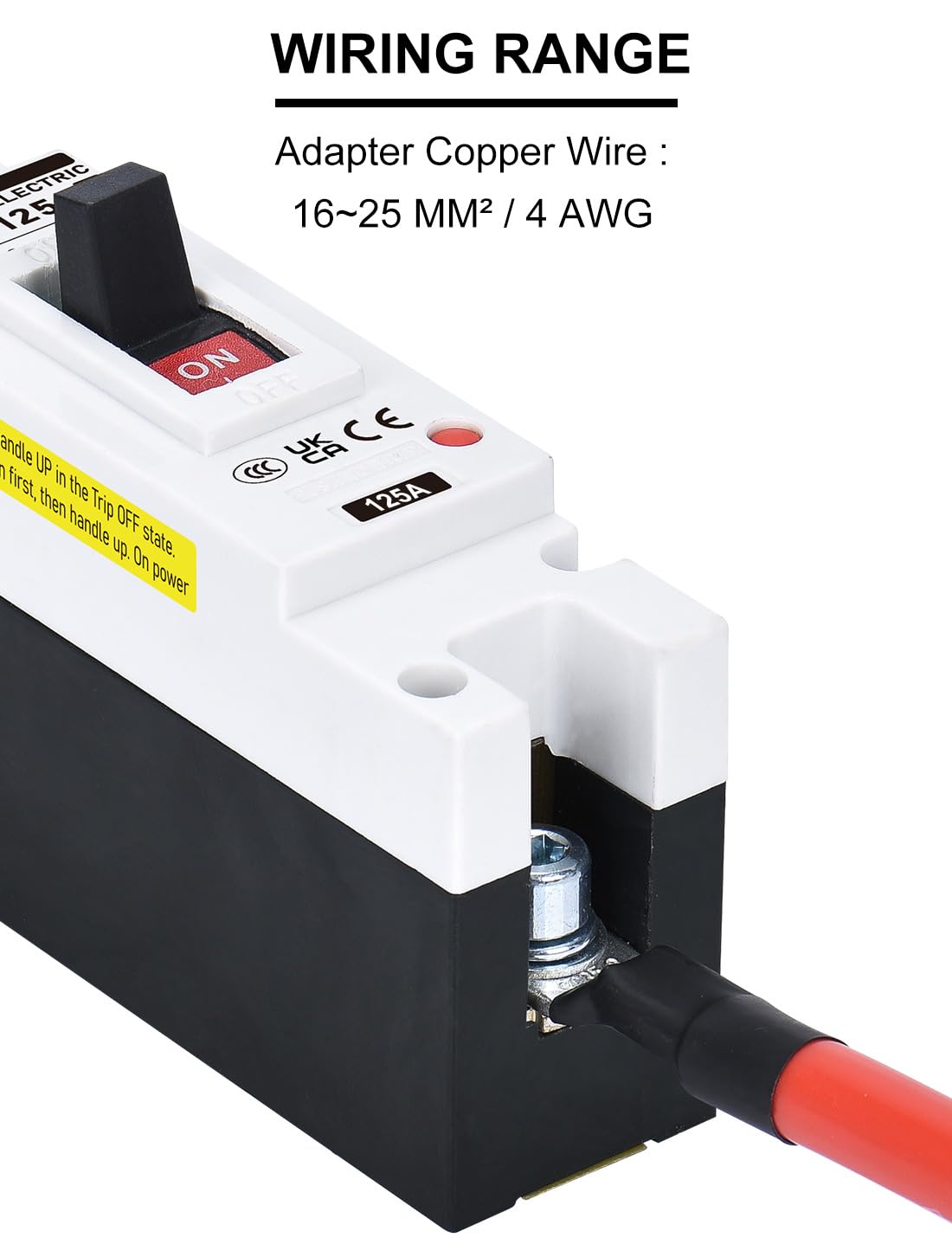

• Screw-mounted installation; wiring to be done with appropriately rated cable and terminals
• Rated for DC 12–250V and AC 90–240V operation

What performance and durability features improve long-term reliability?

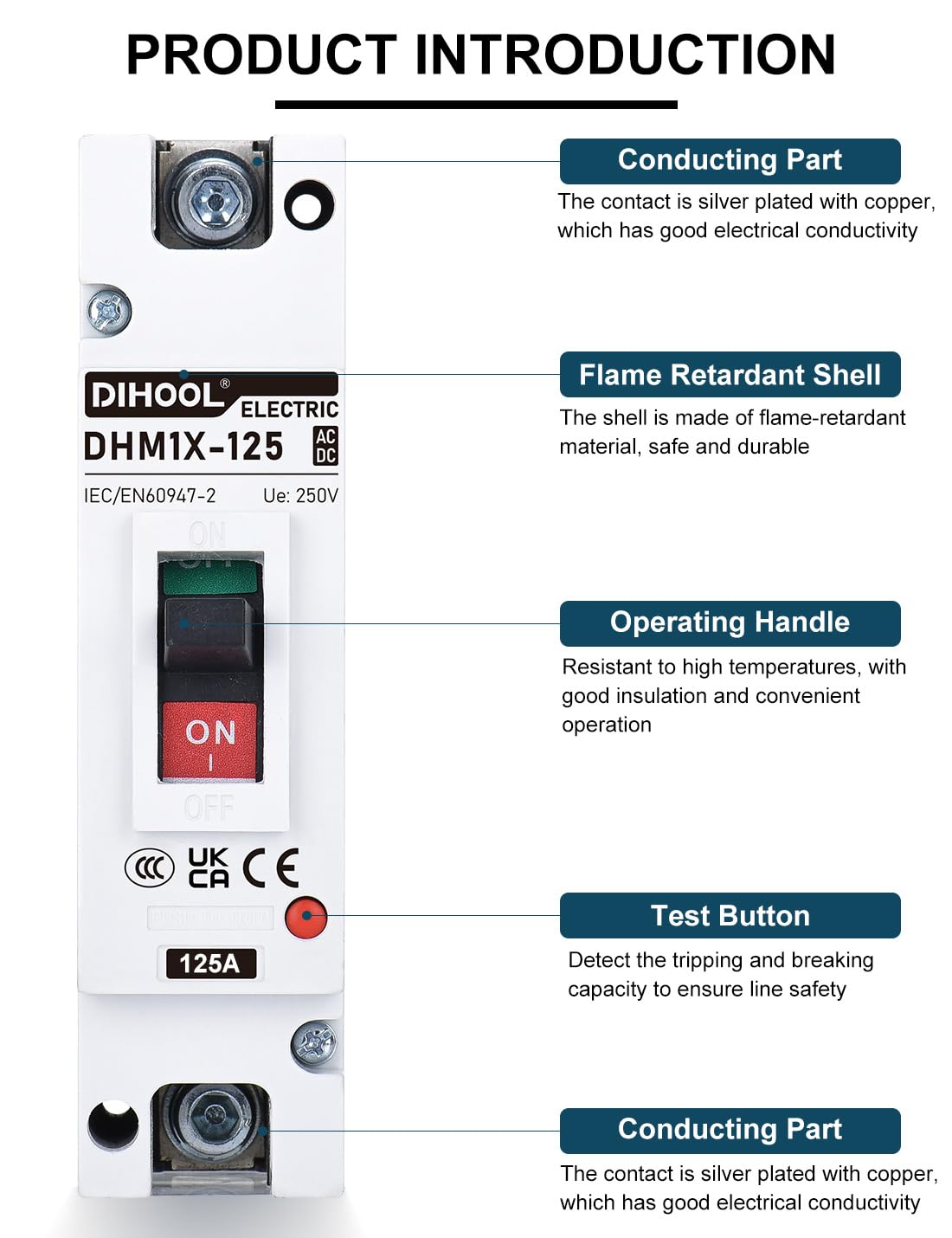

Contact metallurgy and the thermal-magnetic trip mechanism are the core durability features. High silver content contact surfaces reduce wear and keep contact resistance low; the thermal element prevents overheating from sustained loads while the magnetic element clears abrupt short circuits.

• Silver-enriched contacts reduce arcing and maintain conductivity over time
• Thermal element prevents damage from prolonged overloads
• Magnetic trip handles instantaneous short-circuit currents

Who is this for: The DIHOOL 125 Amp Heavy Duty Battery Disconnect Switch is for technicians, hobbyists, and vehicle owners who need a rugged, high-current protection and isolation device. It's well suited to car audio installers, RV and boat owners, solar installers, and anyone managing battery-backed systems who requires a compact, dependable breaker that doubles as a mechanical disconnect for maintenance and safety.
