SHIMANO D03S Disc Brake Pads — Organic pairset with spring, quiet braking and improved wear life

Shimano D03S is an organic (resin) replacement disc brake pad set with spring engineered for quieter braking and improved wear life on compatible Shimano hydraulic calipers.

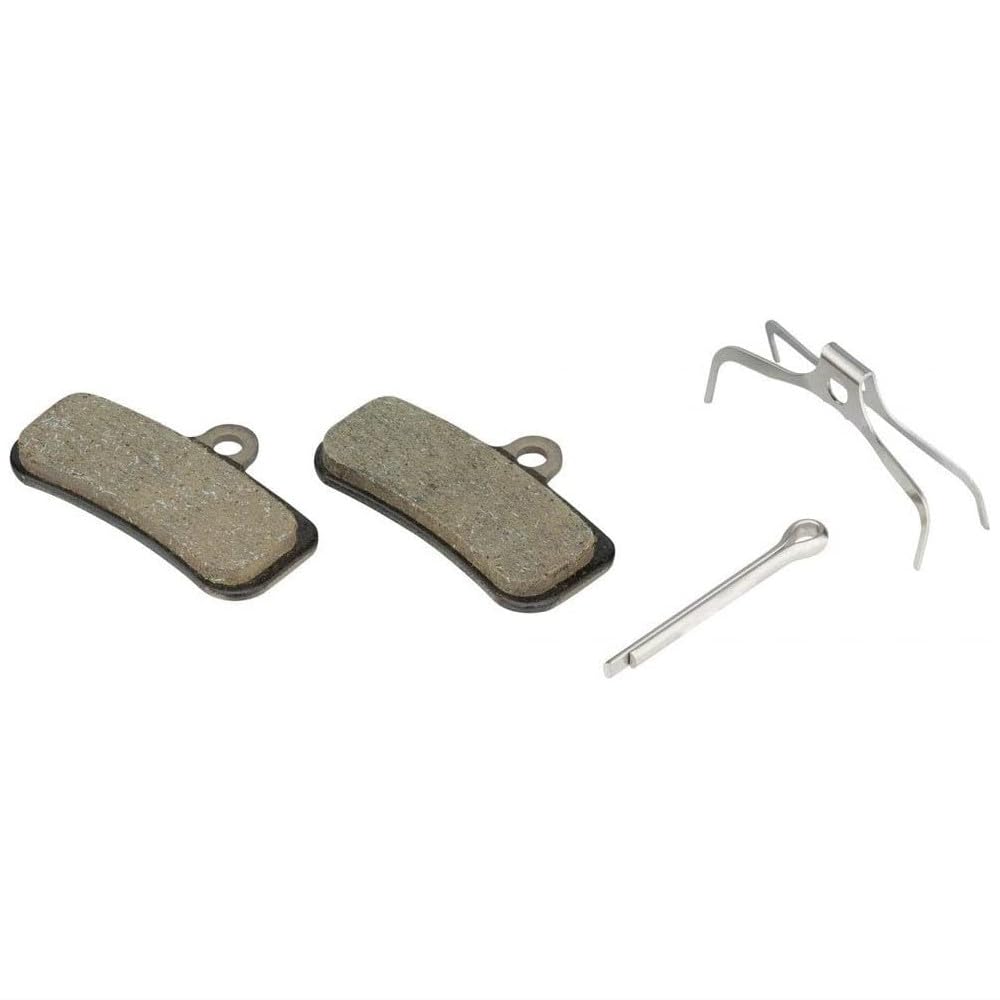

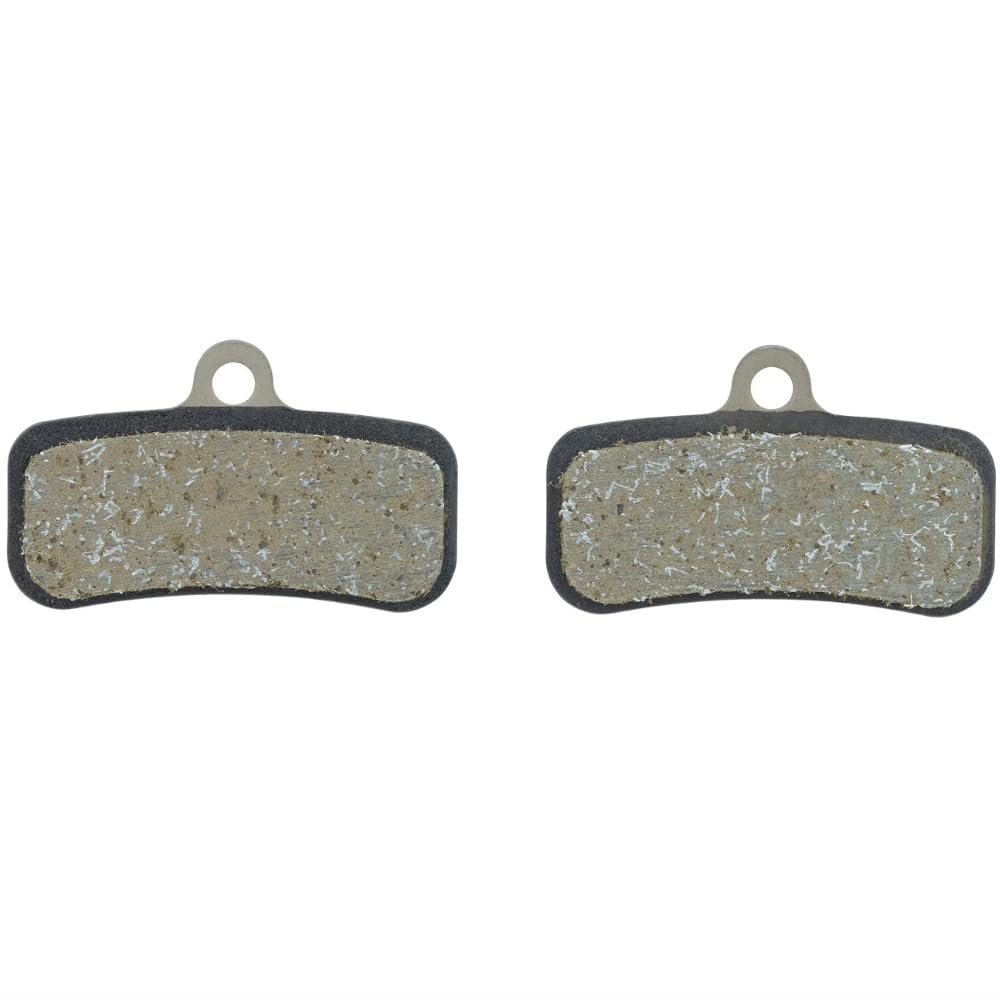

These D03S resin pads (model Y1XM98010) are a direct-fit replacement for a range of Shimano mountain-bike hydraulic disc brakes. They use a synthetic resin friction material formulated to reduce humming and deliver predictable modulation while resisting accelerated wear. The pads include the steel retaining spring required for proper pad spacing and return, and they match the footprint and backing plate geometry of the specified Shimano models for straightforward installation.

Which Shimano brake models work with D03S pads?

These pads are designed to be compatible with several Shimano hydraulic disc brake calipers used across trail and enduro bikes. Confirm fit by comparing pad shape or checking your caliper model number against Shimano's compatibility list.

• Compatible models include BR-M8120, BR-M7120, BR-M8020, BR-M820, BR-M810, BR-M640, BR-MT520, and BR-MT420.
• Direct-fit replacement—no modification required when matched to listed calipers.
• Sold as a pairset with the required steel spring included.

How do resin (organic) D03S pads perform compared with metal-based pads?

Resin pads prioritize quiet operation and controllable modulation over maximum heat endurance. D03S pads are tuned for reduced noise and smoother bite, making them well-suited for trail riding and general mountain-bike use.

• Lower humming and squeal compared with some metallic compounds.
• Good initial bite and predictable lever feel under typical trail conditions.
• Less intended for repeated extreme downhill braking where high thermal capacity is critical.

What maintenance or installation steps should I follow for safe operation?

Install D03S pads using standard Shimano brake service procedures: depress pistons evenly, insert the pads with spring in place, and torque or secure the pad pin per manufacturer guidance. Keep rotors and pads free of oils and contaminants for consistent performance.

• Clean rotor surface with isopropyl alcohol before fitting new pads.
• Seat pads and perform a few controlled braking applications to bed in the surface.
• Replace pads when friction material thickness approaches Shimano’s recommended minimum.

Will these pads make noise and how long do they last?

D03S resin pads are formulated to minimize humming and squeal, although noise can still occur if rotors or installation are contaminated or misaligned. Wear life depends on riding style, terrain, and rotor condition; these pads offer improved wear resistance relative to earlier resin formulations.

• Reduced humming in normal trail and commuter riding.
• Wear life increased versus older resin compounds but less than some sintered/metallic pads under heavy heat cycles.
• Inspect pads periodically and replace when material reaches the minimum thickness.

Who is this for: The Shimano D03S organic pads with spring are aimed at mountain-bike riders and service technicians seeking a quiet, replacement resin pad for compatible Shimano hydraulic calipers. They suit trail riders and general all-mountain users who want predictable lever feel and lower noise, and who perform routine brake maintenance rather than demanding continuous extreme downhill heat endurance.
