Shoreline Marine 800 GPH Automatic Bilge Pump with Built-In Float Switch, 3/4" Outlet, Ignition Protected

The Shoreline Marine 800 GPH Automatic Bilge Pump is a self-contained, submersible pump with a built-in float switch that automatically removes bilge water up to 800 gallons per hour and shuts off when the bilge is dry.

Compact and purpose-built for boats, this bilge pump combines an 800 GPH motor with an integrated automatic float switch so you get reliable water removal without separate sensors or complex wiring. Its clip-in mounting base simplifies installation and service, while the 3/4" outlet barb fits standard bilge hose. The pump is ignition protected and designed with tinned marine-grade wiring to withstand marine environments and reduce corrosion risks.

How does the automatic float switch protect my boat when I'm away?

The built-in float switch detects rising water and starts the pump automatically, then stops the pump once the water level falls. That eliminates the need for a separate external float or additional wiring and reduces failure points.

• Automatically activates at rising bilge water levels and shuts off when dry.
• Self-contained switch minimizes external plumbing and wiring complexity.
• Low 5 amp operating current reduces battery drain during repeated cycles.
• Ignition-protected design lowers risk from sparks in fuel vapor environments.

What are the installation and maintenance steps for this pump?

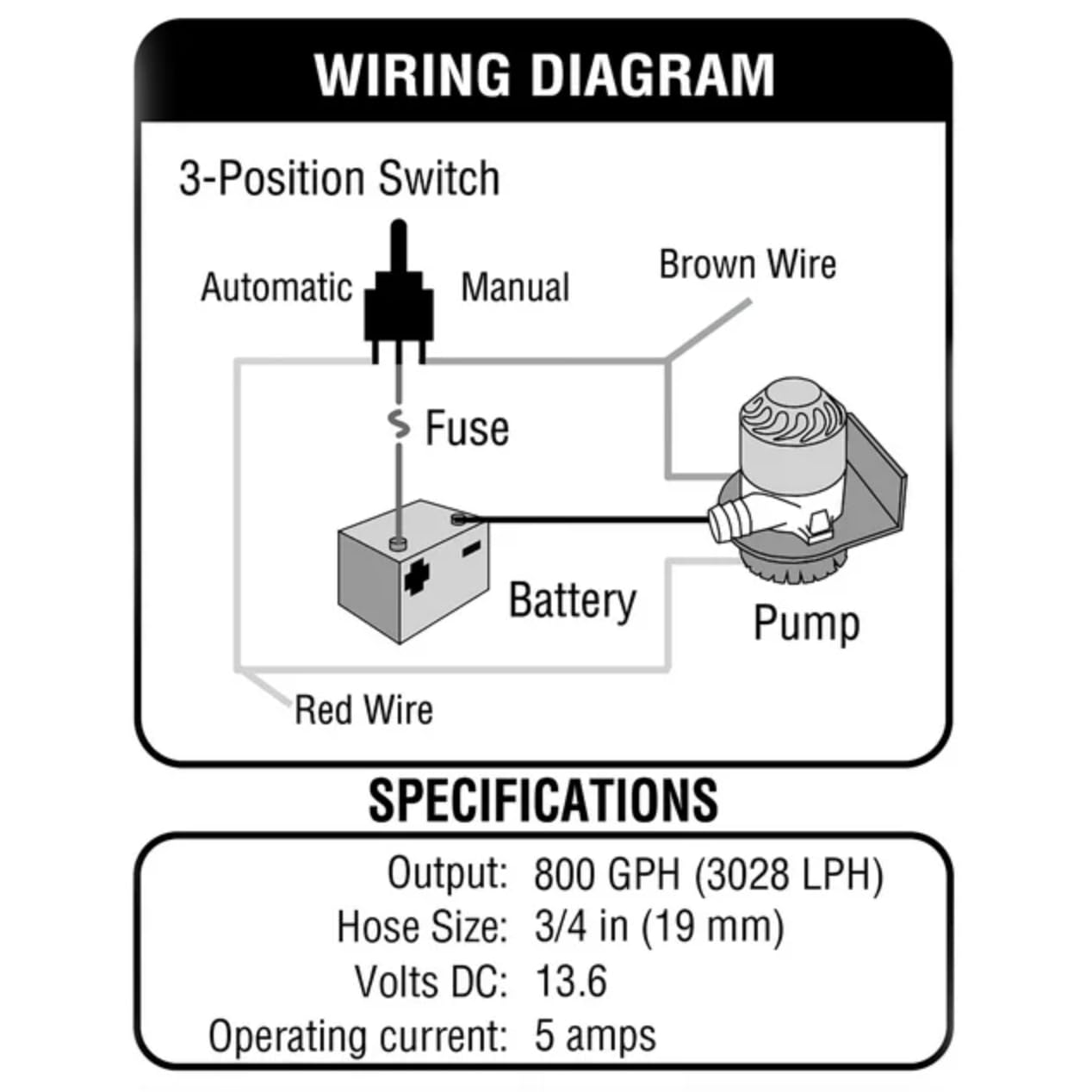

Installation is straightforward: clip the pump into the supplied mounting base, route a 3/4" ID bilge hose to the outlet, and connect the tinned marine-grade wires to the power source. The clip-in design also makes it simple to lift the pump out for cleaning, inspection, or winter storage.

• Fits standard 3/4" ID bilge hose using the 3/4" O.D. outlet barb.
• Mounts to the included base for tool-free removal and servicing.
• Use corrosion-resistant connectors on the tinned wires for longevity.
• Regularly check strainer and impeller for debris or buildup.

How does the pump perform and what are its power requirements?

The pump delivers up to 800 gallons per hour at free flow and draws a low operating current of about 5 amps, making it energy-efficient for small to medium bilges. Its submersible design lets it operate fully underwater, maintaining steady flow until the float switch shuts it off.

• Pumping capacity: 800 GPH for fast bilge clearing.
• Low current draw (~5 amps) conserves battery life during frequent use.
• Submersible construction allows placement directly in the bilge sump.
• Tinned marine-grade wiring resists corrosion and enhances electrical reliability.

What safety and compatibility features should I consider?

The pump is ignition protected and equipped with corrosion-resistant wiring, which helps reduce hazards in fuel-vapor environments and improves durability in saltwater conditions. Its outlet fits common hose sizes, and the clip-in base keeps the pump secure while allowing quick removal if needed.

• Ignition protection reduces fire and spark risks near fuel sources.
• Standard 3/4" hose barb for widespread hose compatibility.
• Clip-in base secures pump and allows easy removal for service.
• Marine-grade tinned wires for extended life in wet environments.

Who is this for: The Shoreline Marine 800 GPH Automatic Bilge Pump is aimed at boat owners, small craft operators, and marine maintenance professionals who want an uncomplicated, reliable automatic bilge solution. It works well for dayboats, runabouts, small cruisers, and tenders that need dependable, low-draw bilge pumping with minimal installation effort and straightforward maintenance.
