Zuomeng LED Navigation Lights Pair, Red Port Green Starboard, Black, 112.5° Beam, 2 NM Visible

Zuomeng Nautical Mile LED Navigation Lights are a USCG-compliant red port and green starboard pair that deliver cold LED illumination visible up to 2 nautical miles for safe night navigation.

These compact, rugged navigation lights are engineered for small craft — kayaks, pontoons, airboats, fishing boats and yachts — where reliable, low-draw 12V lighting and strict beam control matter. Built from marine-grade anodized aluminum with silicone resin encapsulation and IP68 waterproofing, the set is designed to resist salt spray, vibration and UV exposure while providing a crisp 112.5° beam that satisfies USCG standards.

How far will the Zuomeng navigation lights be visible at night?

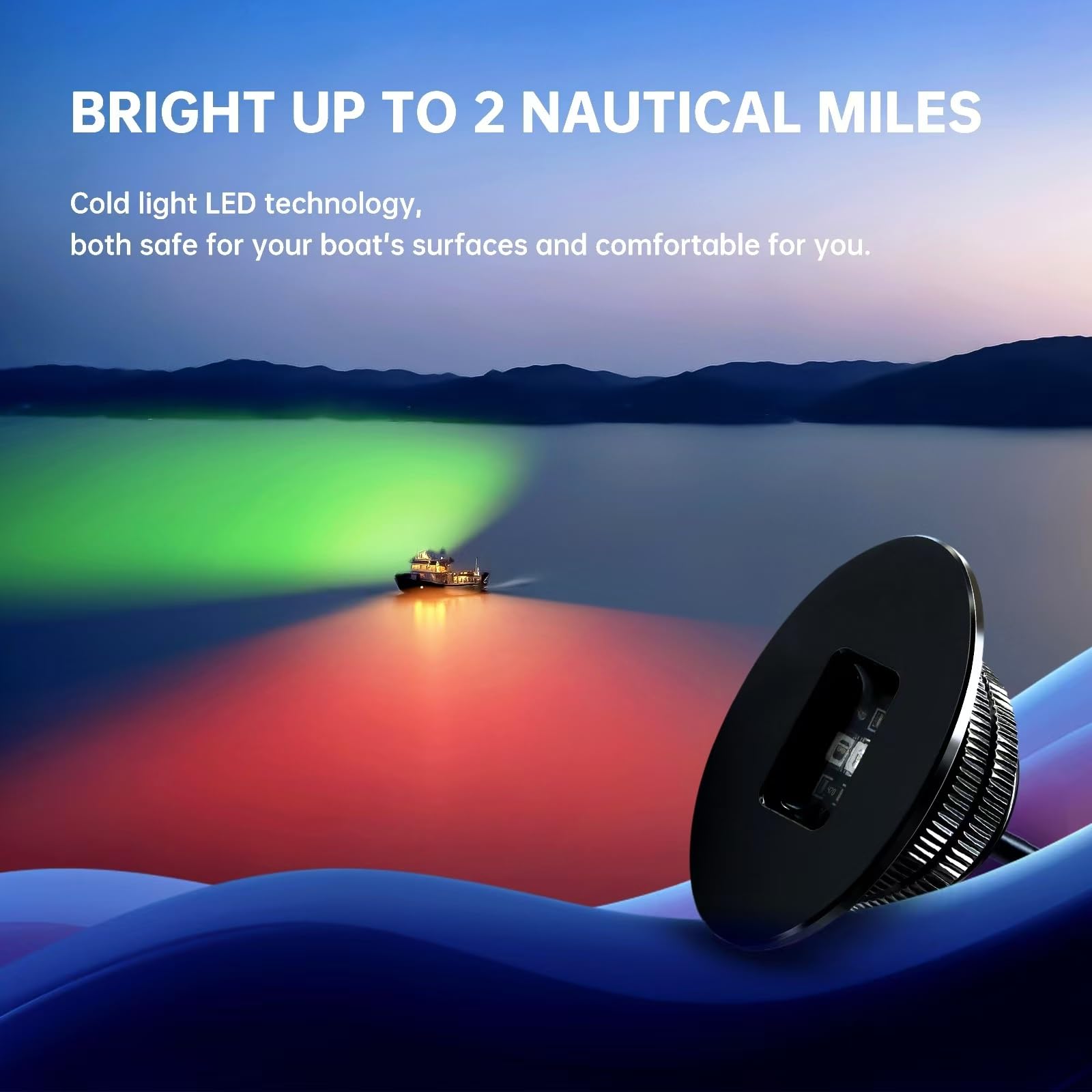

These LEDs are rated to be visible up to 2 nautical miles under standard conditions, making them suitable for coastal and near-shore night operation. Bright cold-light LEDs produce consistent output without drawing excessive current from your 12V system.

• Visibility: up to 2 nautical miles in clear conditions
• Beam angle: precise 112.5° to meet USCG requirements
• Power: optimized low current draw for extended battery life

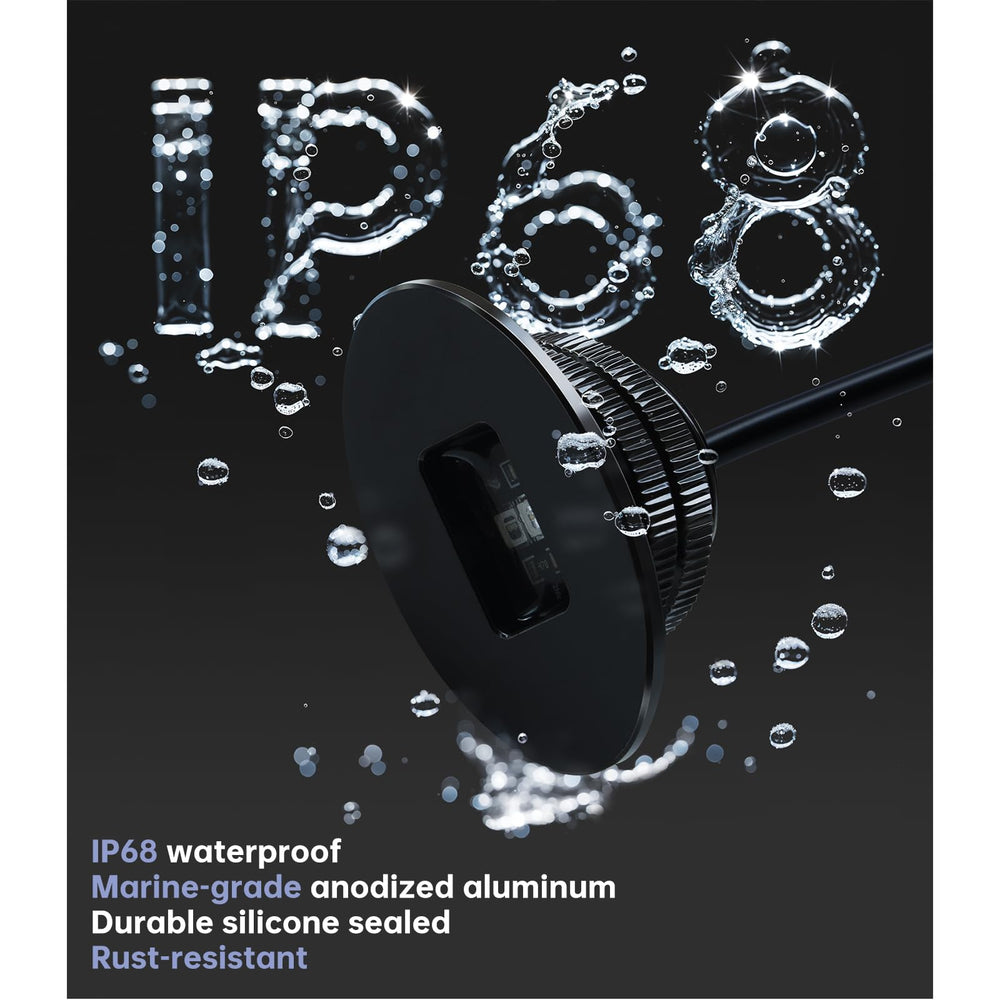

Are these lights durable enough for saltwater and rough conditions?

Yes — the housings are marine-grade anodized aluminum and the electronics are fully encapsulated with high-strength silicone resin and marine-grade glue filling to prevent water intrusion. The IP68 rating, plus resistance to vibration, UV and temperature extremes, helps ensure long service life in harsh marine environments.

• Materials: marine-grade anodized aluminum body
• Protection: silicone resin encapsulation and glue-filled electronics
• Rating: IP68 waterproof performance for immersion and spray

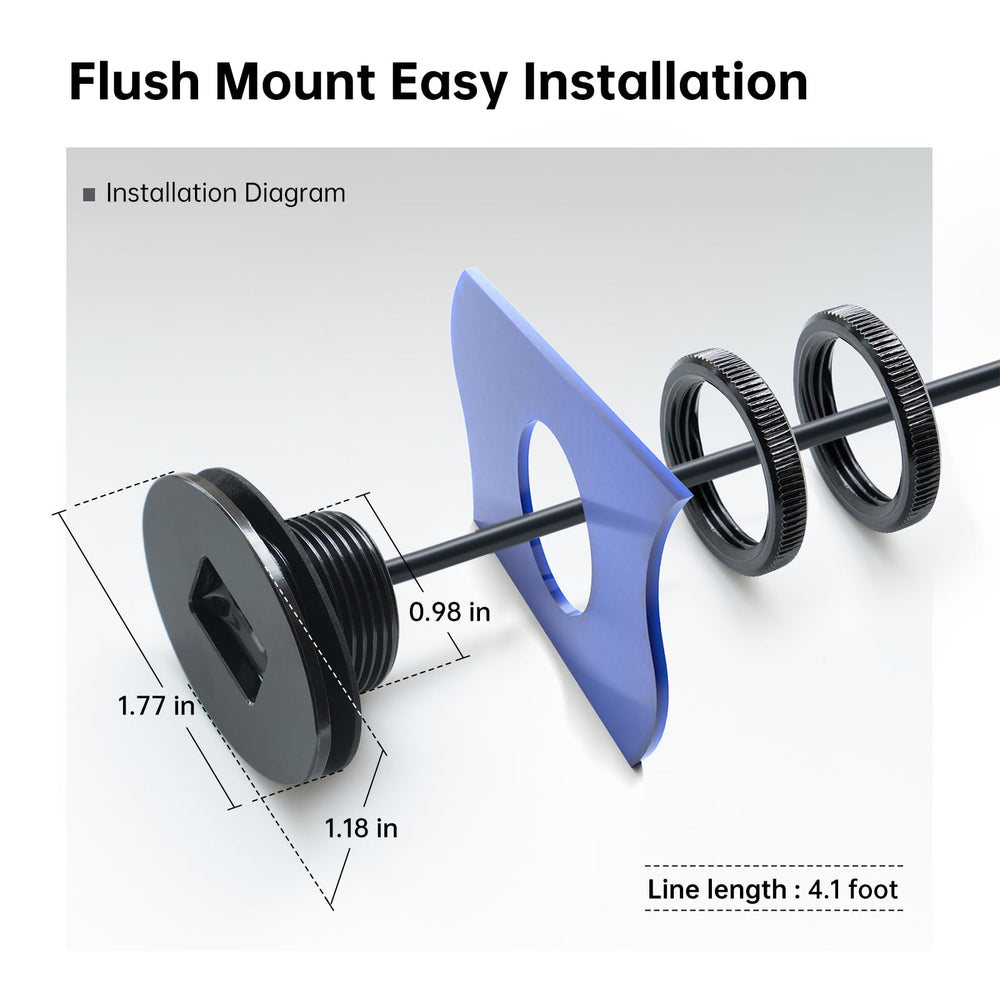

How simple is installation on small boats like kayaks or pontoons?

Installation is straightforward: drill a 1-inch mounting hole, feed the 40-inch 22AWG cable through, and connect the red wire to positive and the black to ground. The compact footprint and pre-measured wiring let you finish wiring quickly so you can be back on the water with compliant navigation lighting.

• Mount hole: 1-inch diameter required
• Cable: 40-inch, 22AWG pre-attached wiring
• Connections: red = positive, black = negative/ground

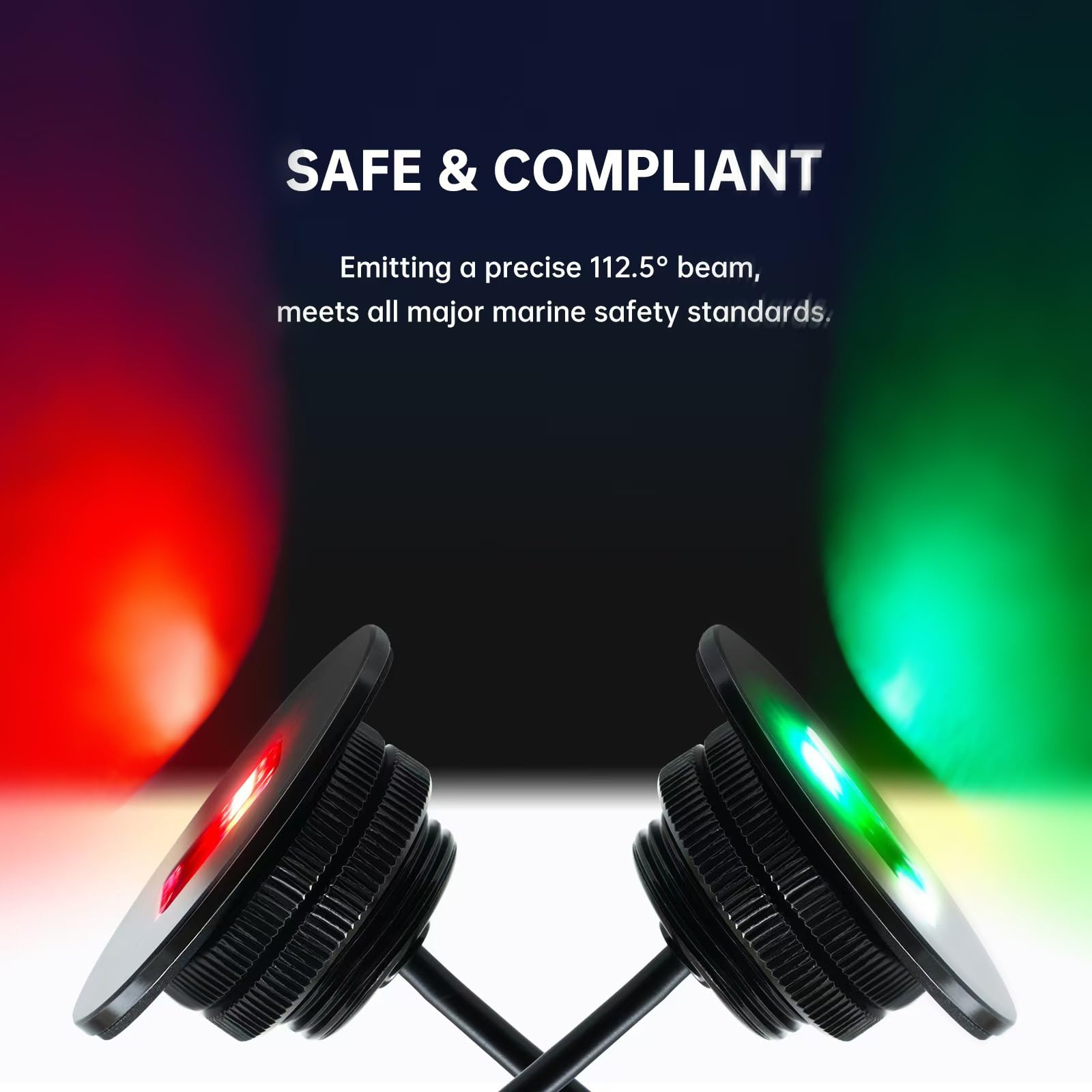

Will these lights meet USCG requirements for a navigation light system?

The Zuomeng pair emits a controlled 112.5° sector beam and each unit is color-specific (red for port, green for starboard), aligning with USCG guidance for lateral navigation lights. They’re designed to provide the required visibility without overloading typical 12V boat electrical systems.

• Beam compliance: 112.5° sector per USCG standard
• Color-coded: red port, green starboard for correct lateral display
• Electrical: designed for standard 12V boat systems

Who is this for: The Zuomeng Nautical Mile LED Navigation Lights are aimed at small- to medium-size boat owners and operators who need dependable, compliant navigation lighting. They are especially well suited for kayaks, pontoons, airboats, small fishing vessels and yachts seeking long-lasting, waterproof LED lights that are easy to install and low on power consumption.
